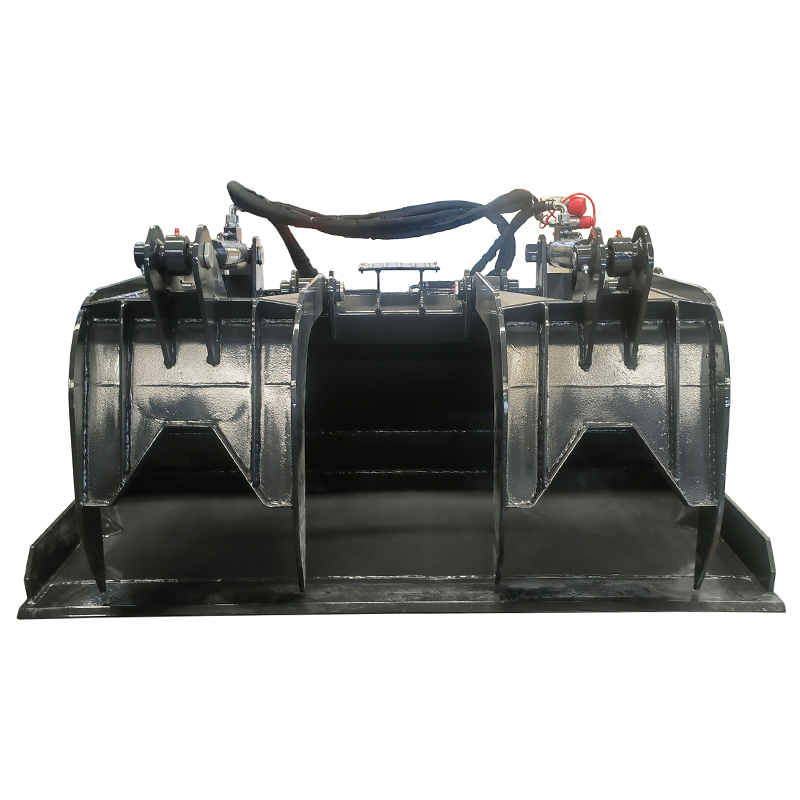

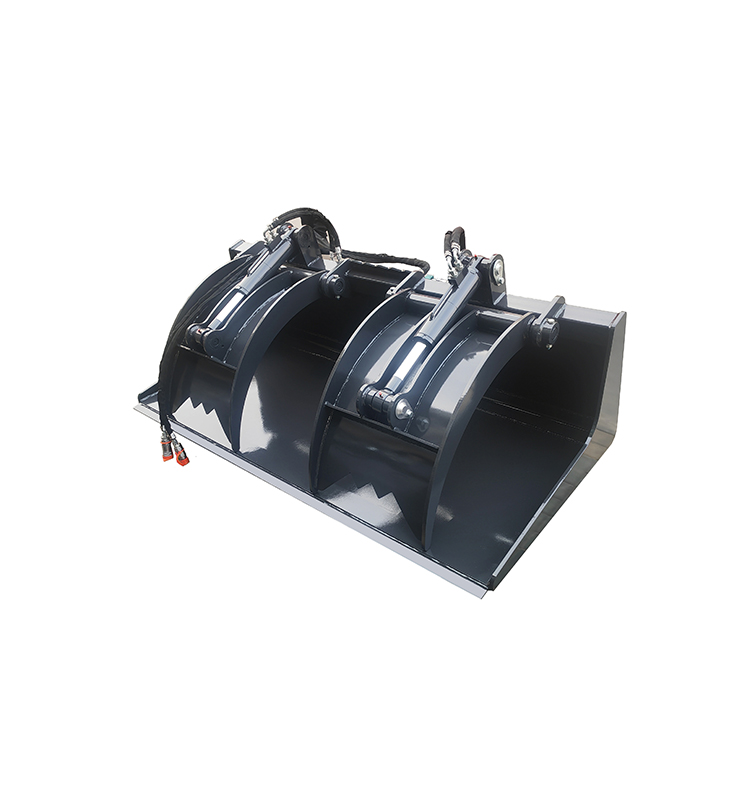

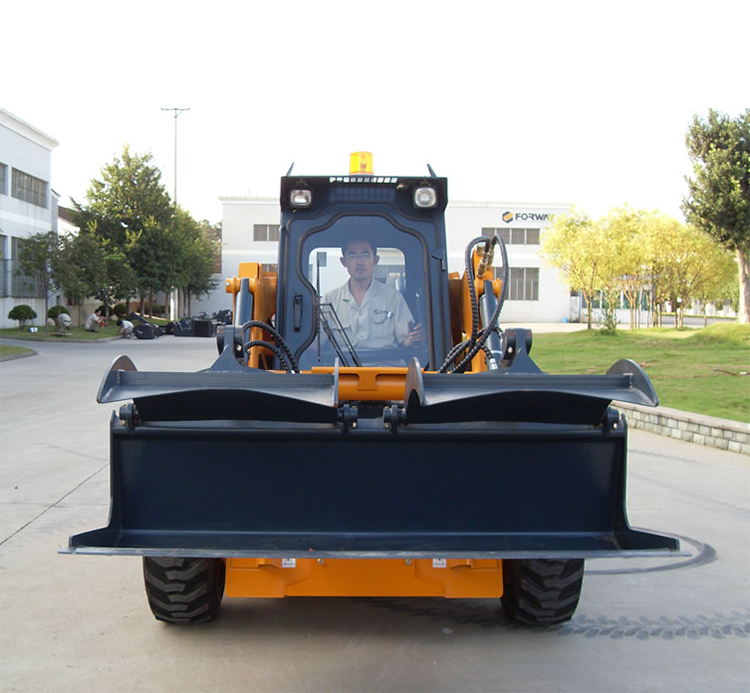

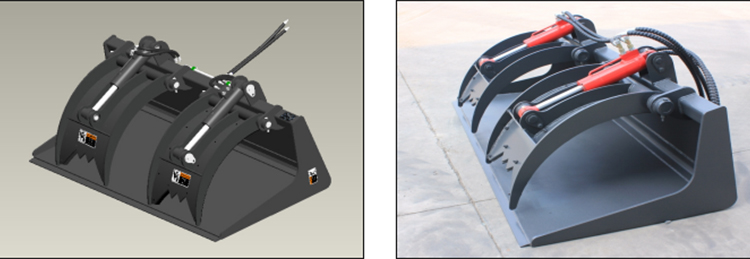

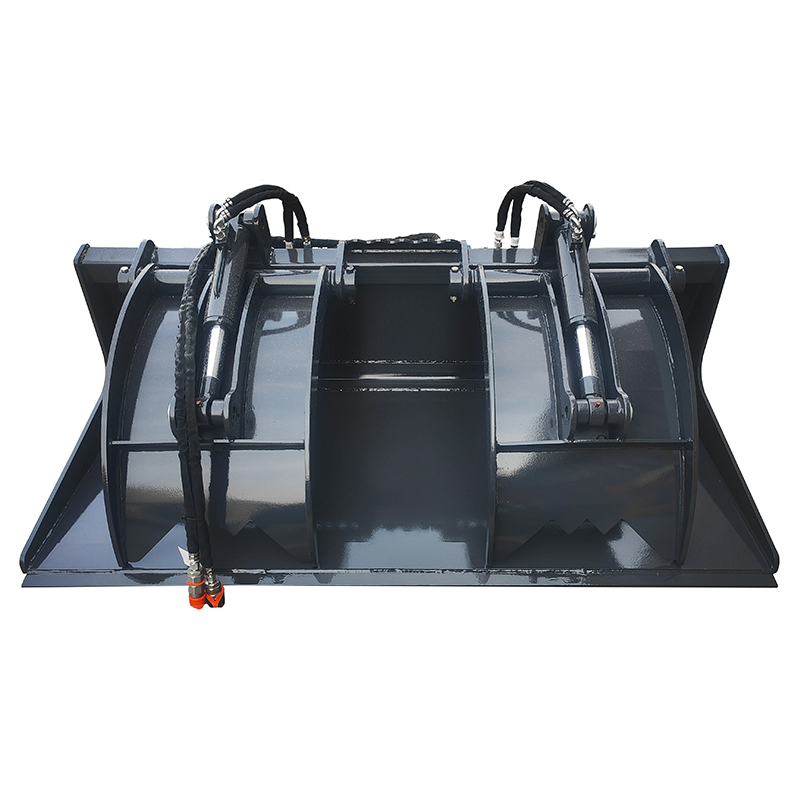

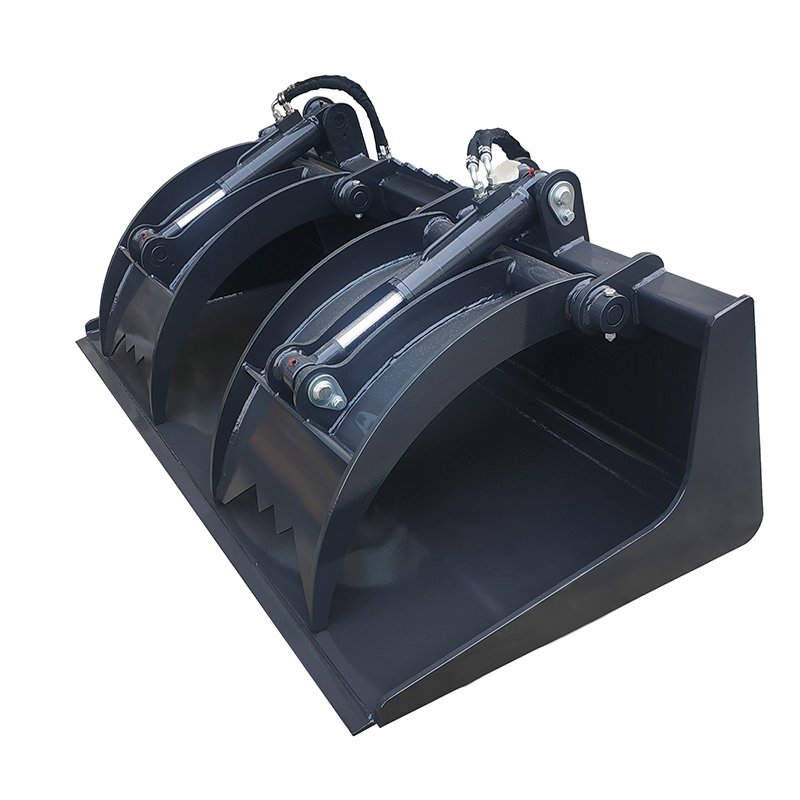

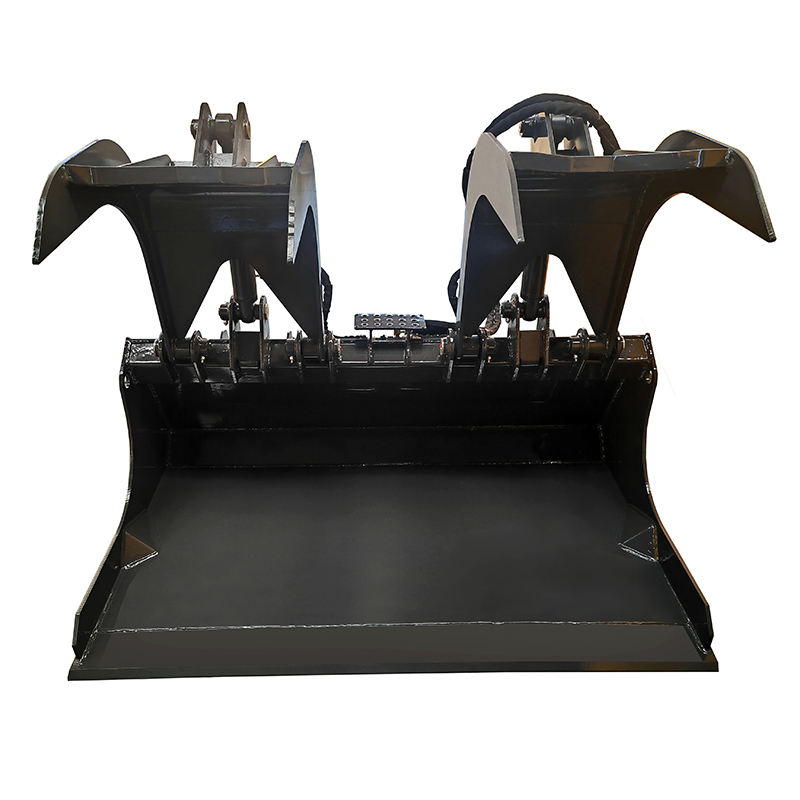

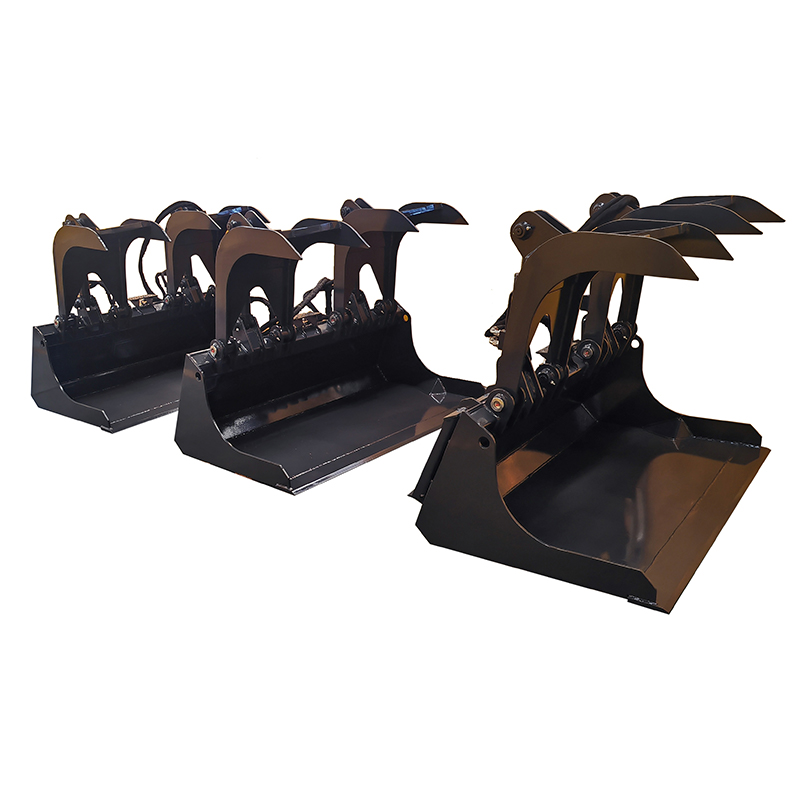

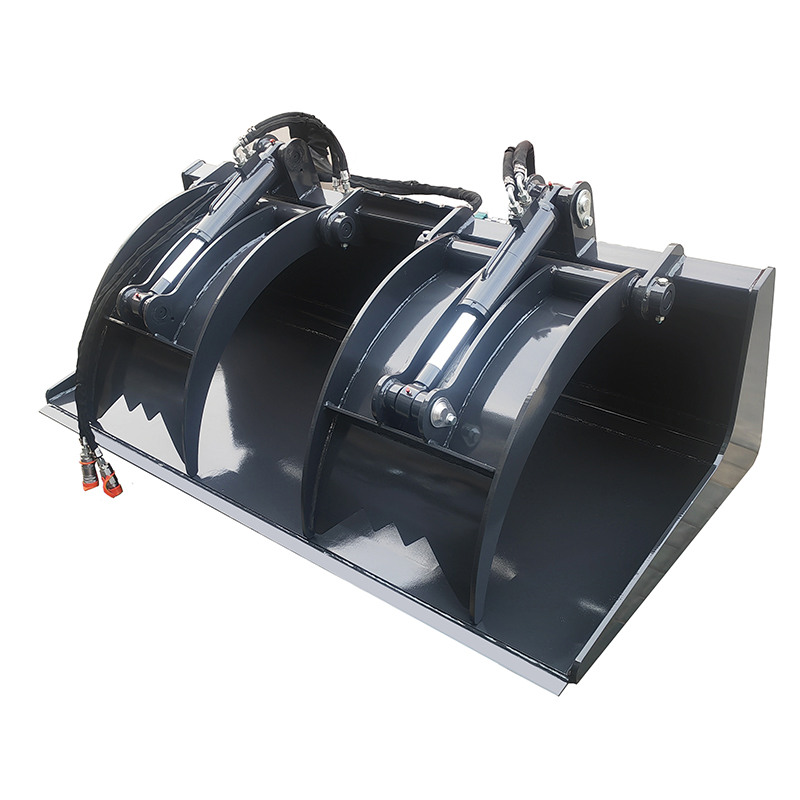

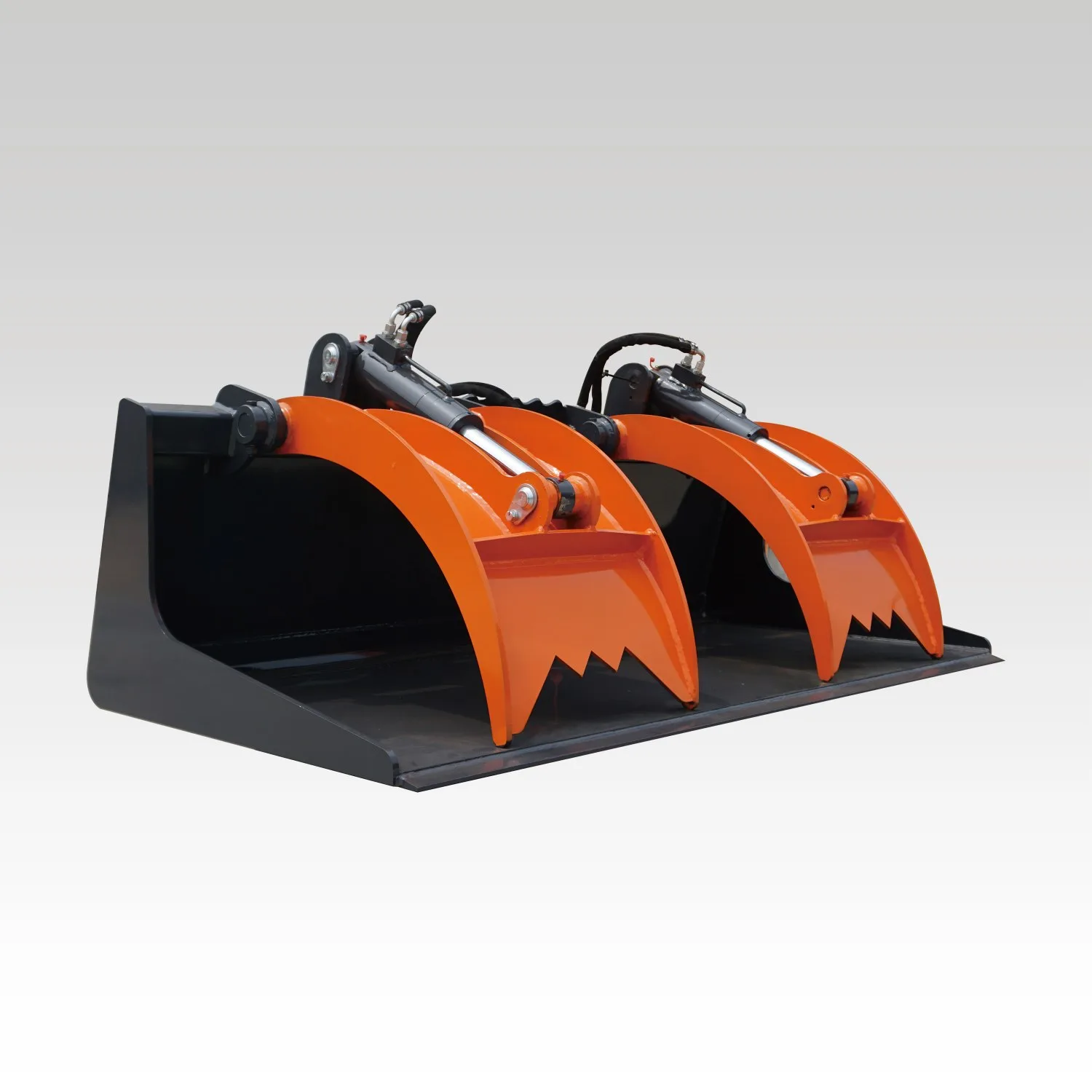

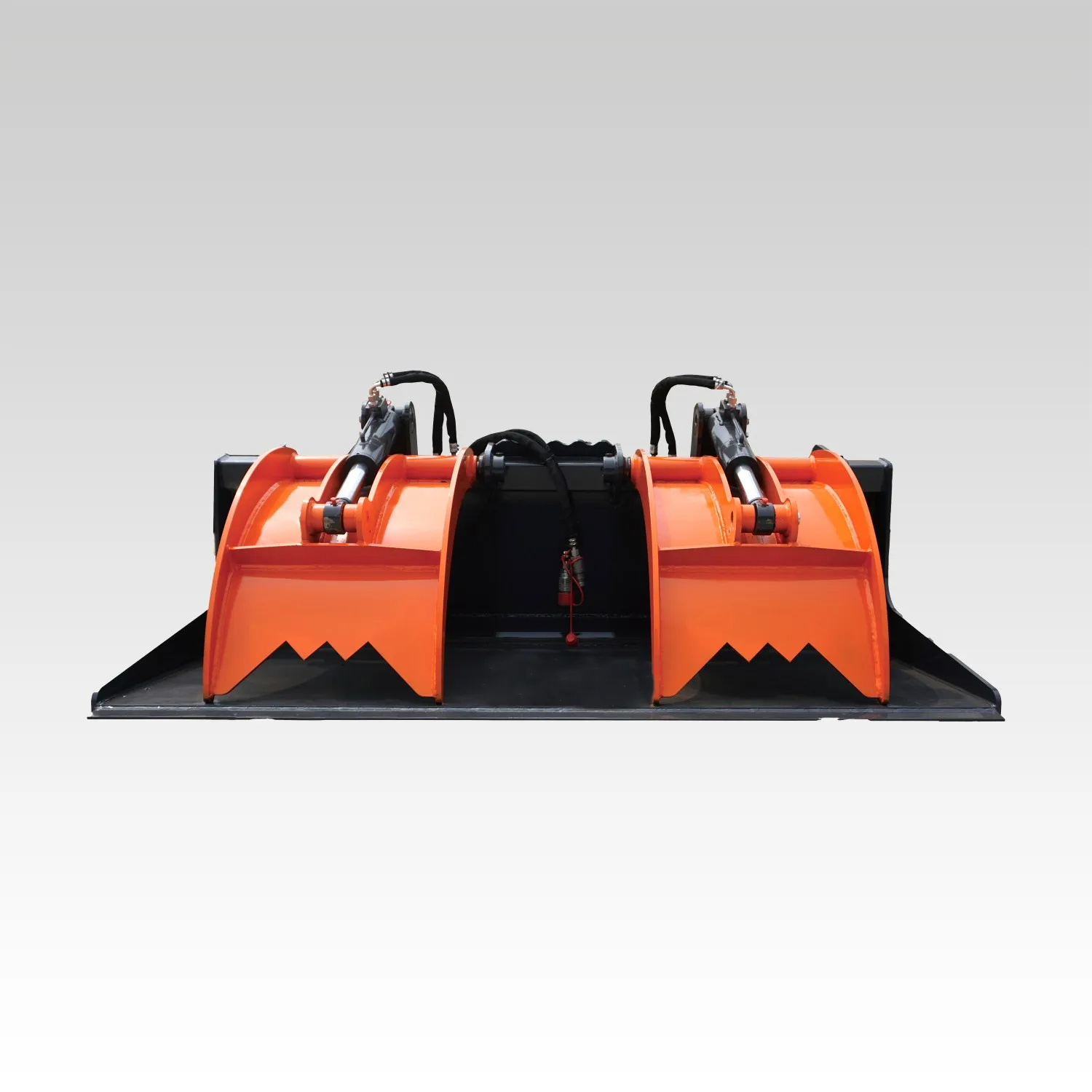

0403 Series Heavy Duty Grapple Bucket
Hot Products

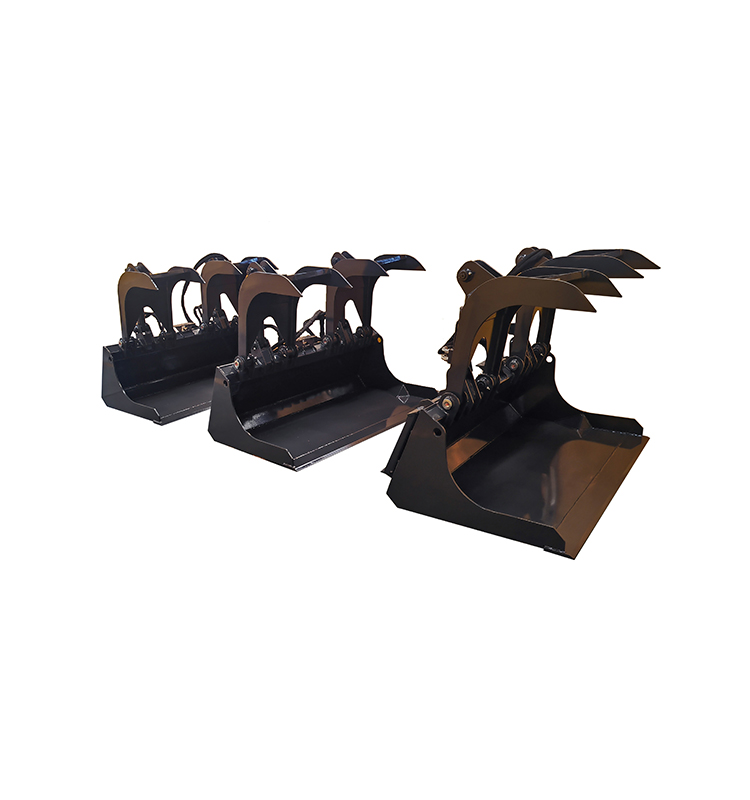

Industrial Grapple Attachment
Built for maximum power and reliability
Delivers easy handling of bulky, hard-to-manage materials in the industrial or construction setting .
The two-arm design on larger industrial grapples provides a strong, even biting force Choose from a bucket or fork bottom for maximum load capability ,Built for day-in, day-out duty to bite off the toughest jobs
Built with tough, dual cylinders, HCN grapples provide the highest clamping forces in the industry. HCN industrial grapples offer the force to handle stubborn materials and work faster.
The forks allow for picking up larger materials while leaving valuable dirt behind. Additional forks can be added to narrow the space between fork tines.
Handle demolition rubble, building materials, recycling, salvage, or scrap materials.
Product Details
Main parameter：
Model; | 040360 | 040372 | 040384 |
Over length (mm) | 960 | 925 | 925 |
Over width(mm) | 1524 | 1848 | 2135 |
Height when close（mm） | 670 | 705 | 705 |
Height when open（mm） | 1180 | 910 | 910 |
Grapple distance（mm） | 1000 | 790 | 790 |
Weight（kg） | 320 | 510 | 580 |
Work Flow（L/Min） | 20-30 | 20-30 | 20-30 |
Work pressure（MPa） | 21 | 21 | 21 |
Suitable for machine | Skid Steer Loader/Small wheel loader | ||

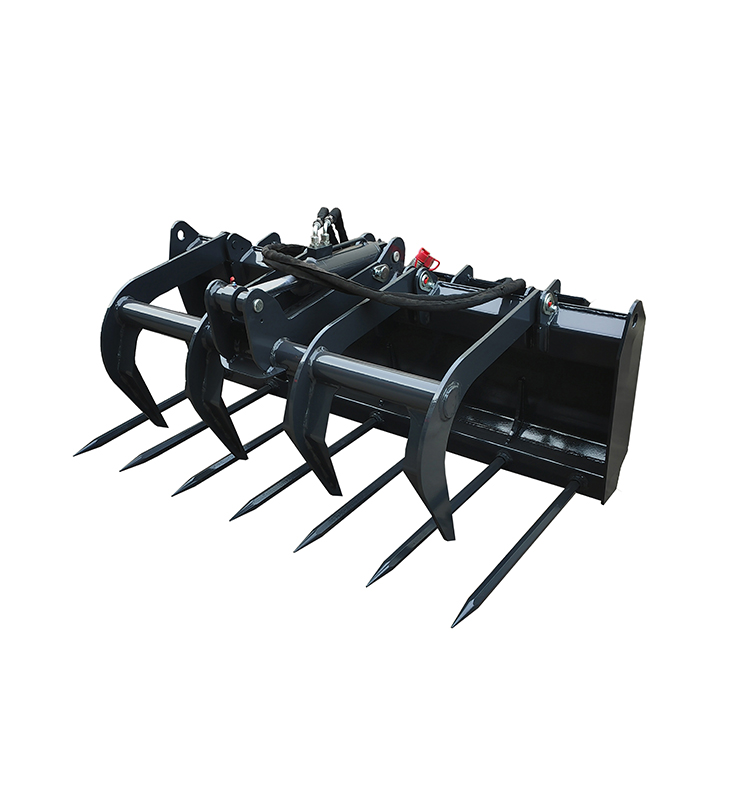

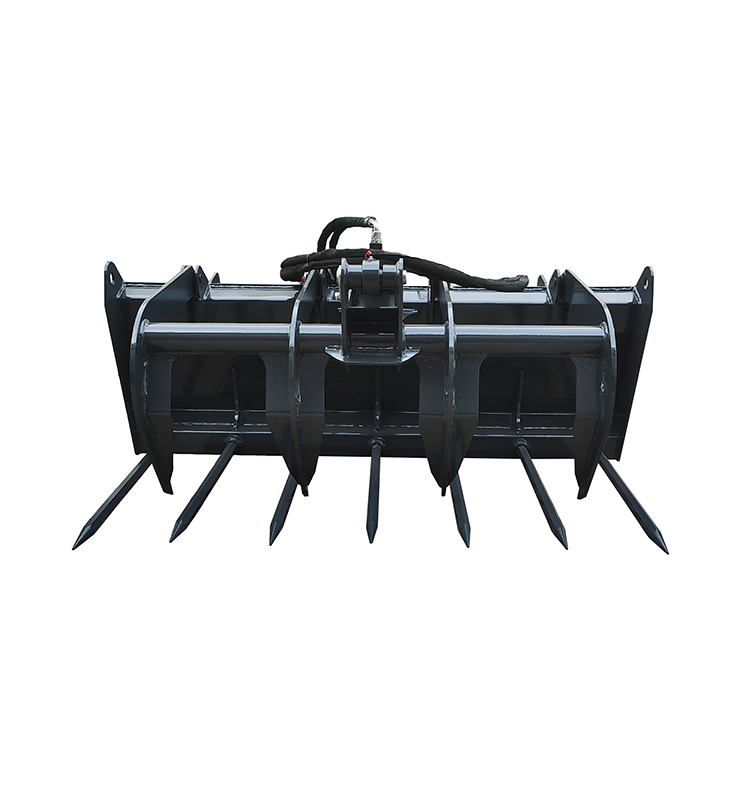

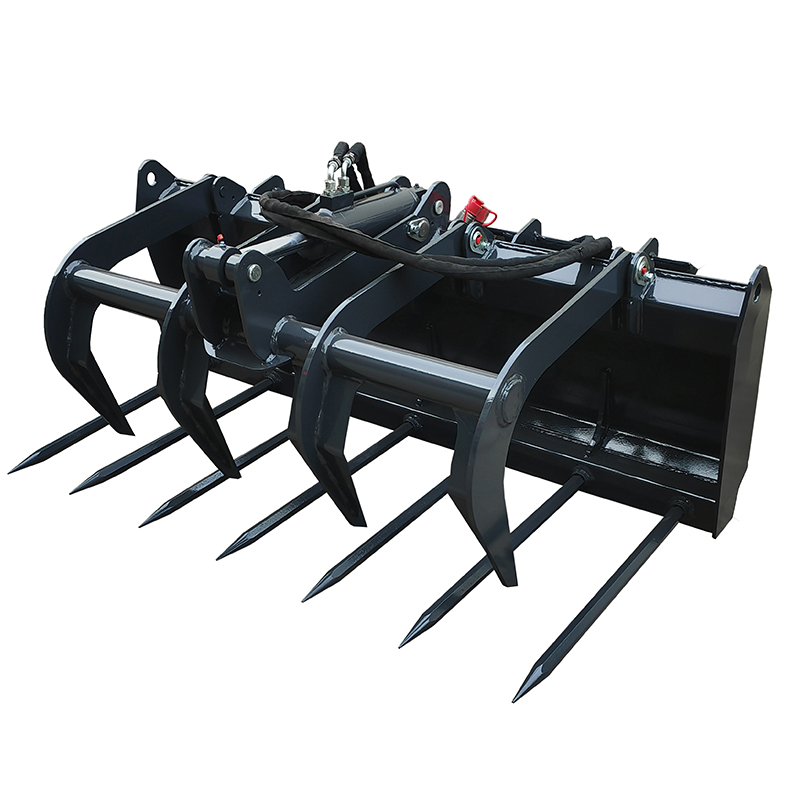

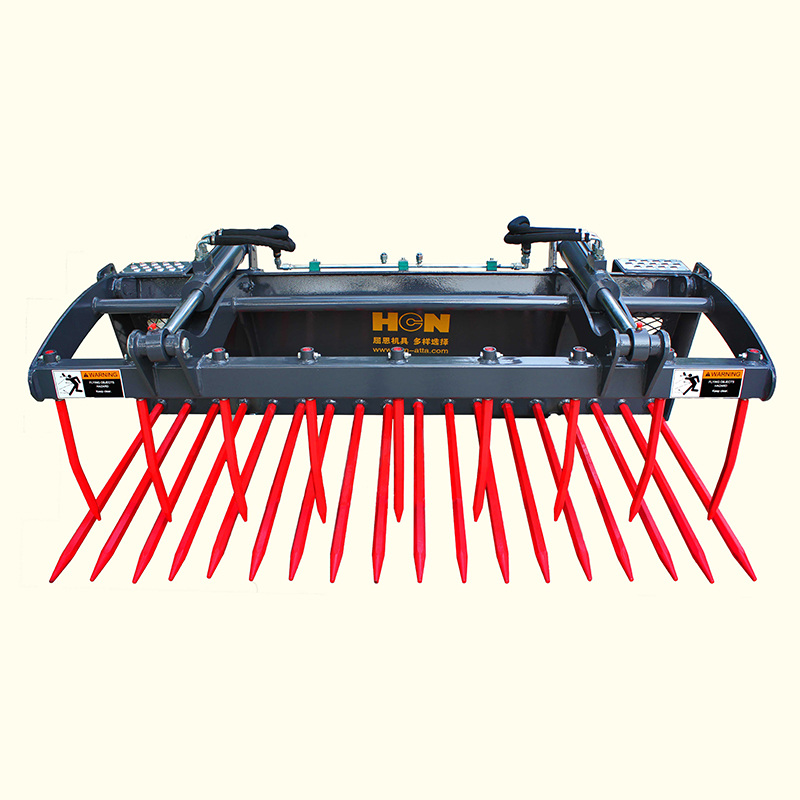

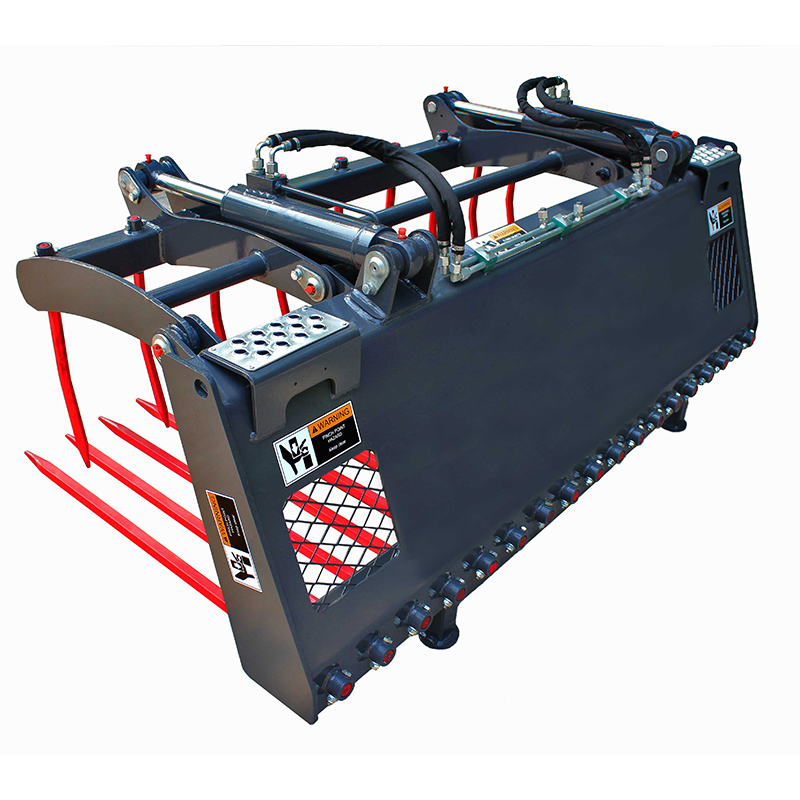

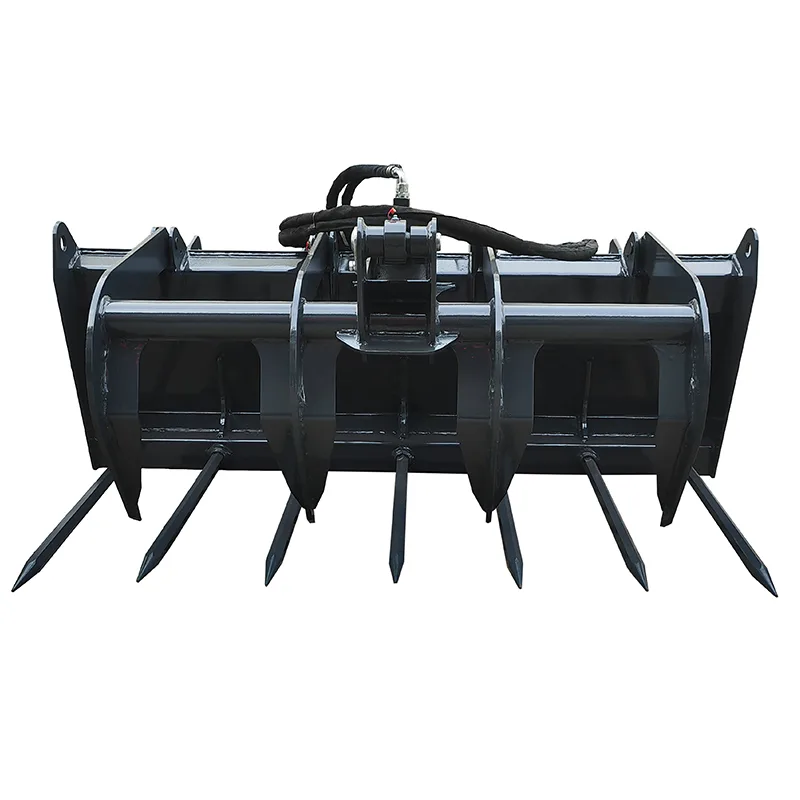

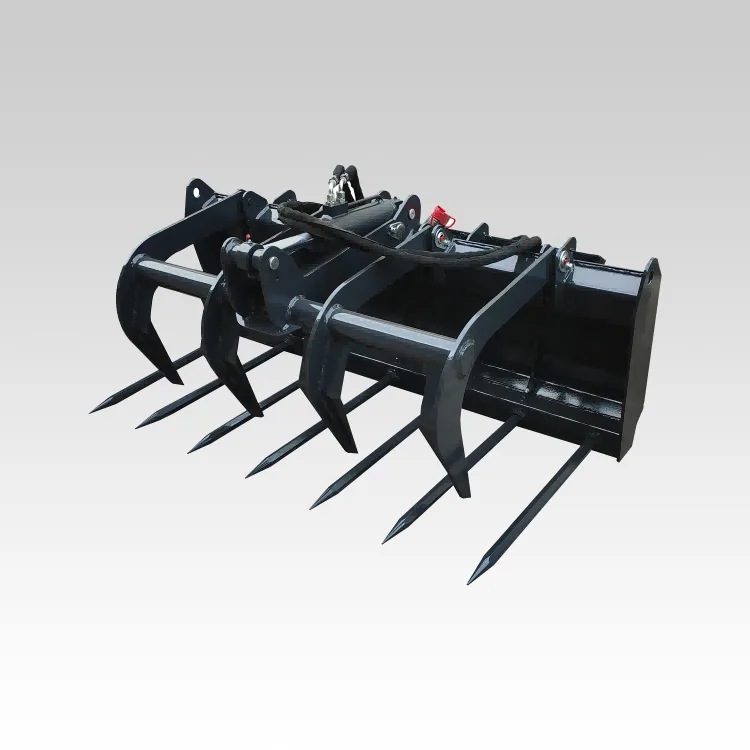

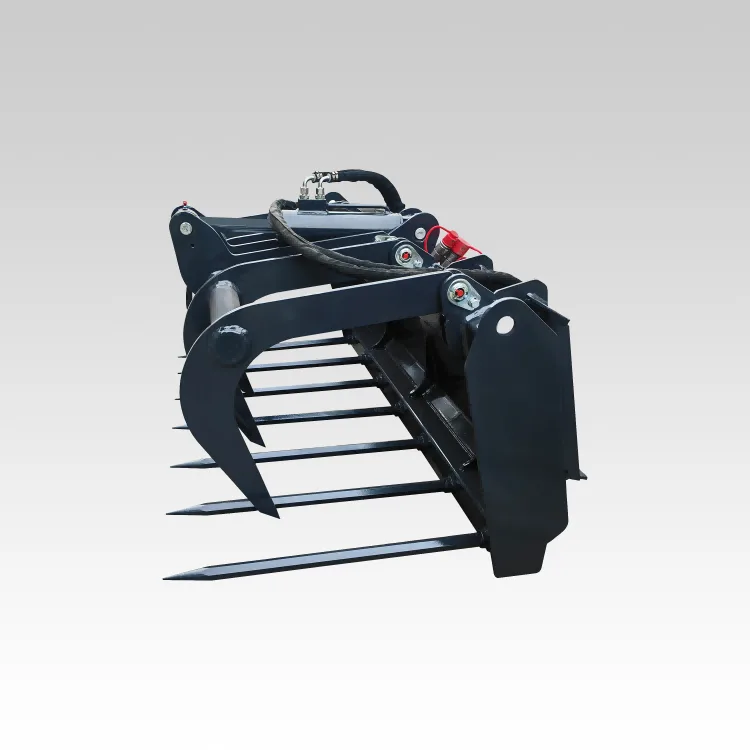

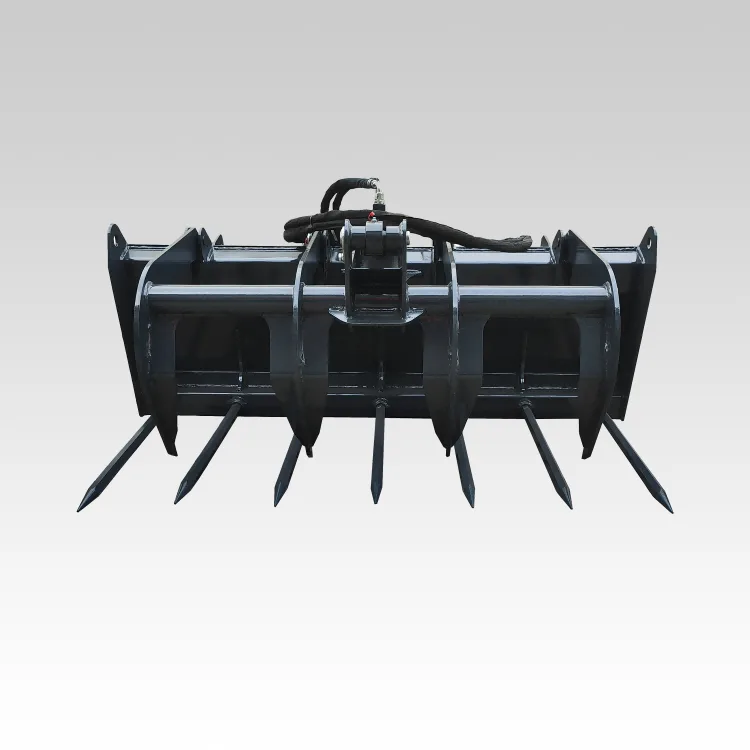

050160 Muck Grapple fork
The heavy-duty manure fork with grapple is ideal for handling large quantities of manure and silage on modern farms. It’s manufactured to work with telescopic handlers up to 2.60 tonne capacity. Incredibly tough and abrasive resistant, high strength, Abro bottom tines are used in the making of this equipment. The design takes advantage of materials technology first employed in the quarrying industry. Agriquip’s muck fork and grapple is constructed with a unique mono-shell design and features a unique triangulated high strength torsion beam. The grapple is driven by a hydraulic cylinder to make handling of manure, silage, grass and hay more secure and efficient.
Main parameter：
Model; | 050160 | |
Over length (mm) | 980 | |
Over width(mm) | 1524 | |
Height when close（mm） | 710 | |
Height when open（mm） | 1140 | |
Grapple distance（mm） | 790 | |
Weight（kg） | 230 | |
Work Flow（L/Min） | 20-30 | |
Work pressure（MPa） | 21 | |
Suitable for machine | Skid Steer Loader/Small wheel loader | |

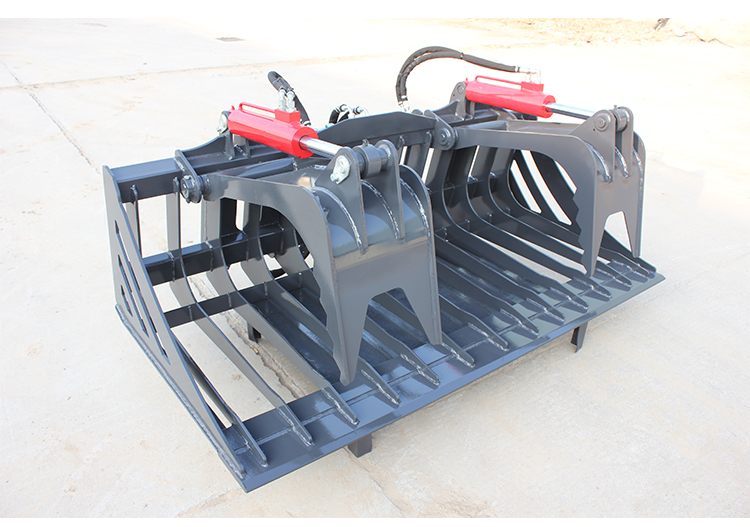

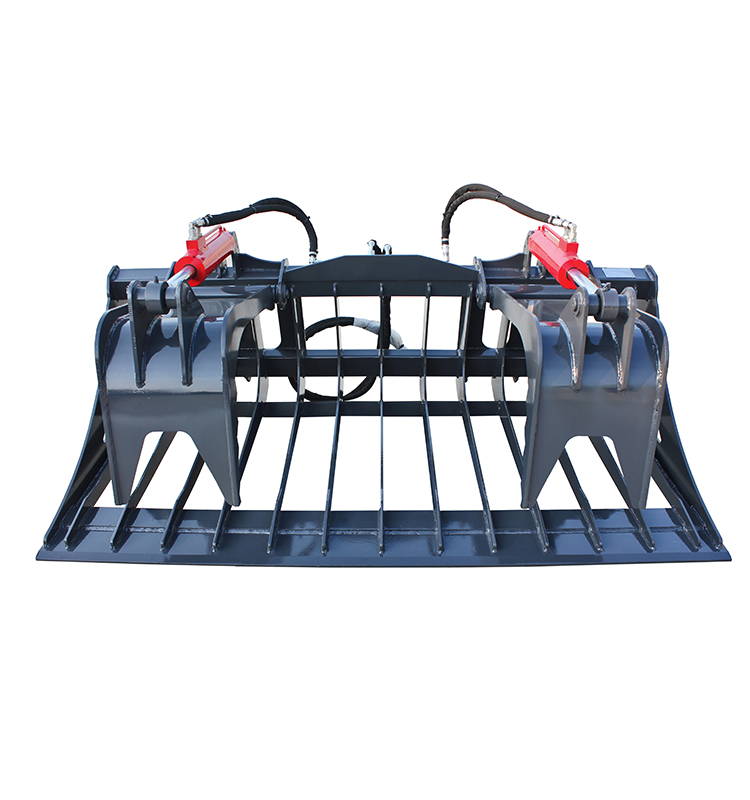

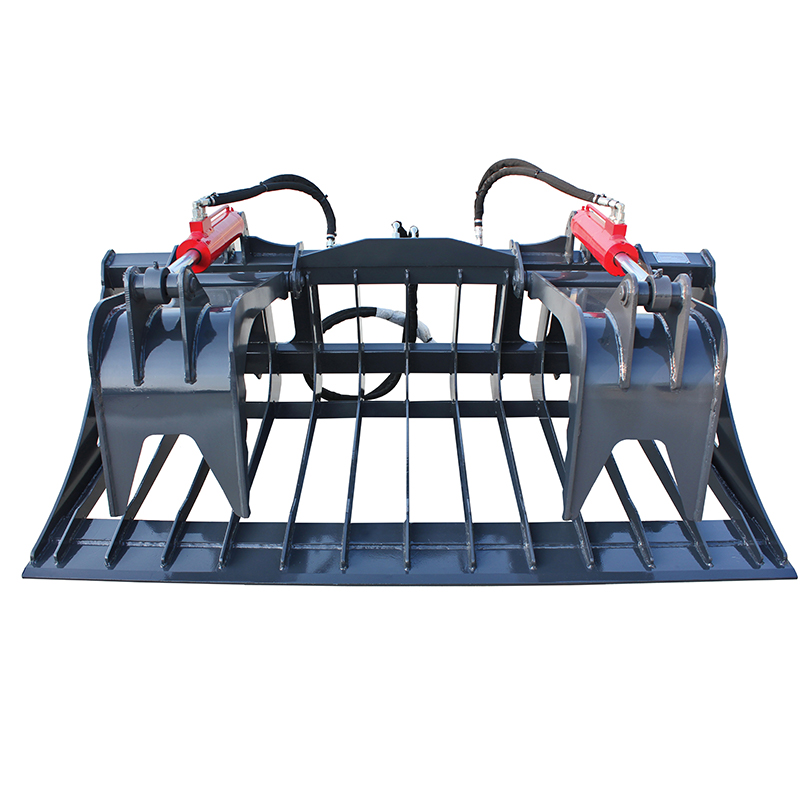

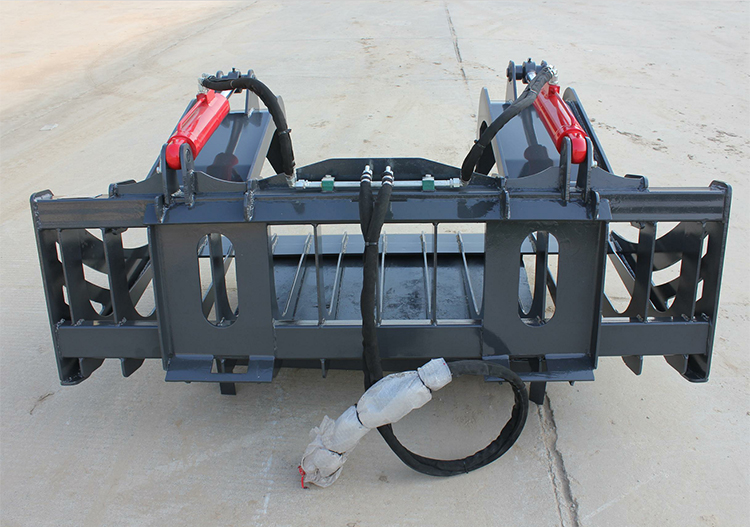

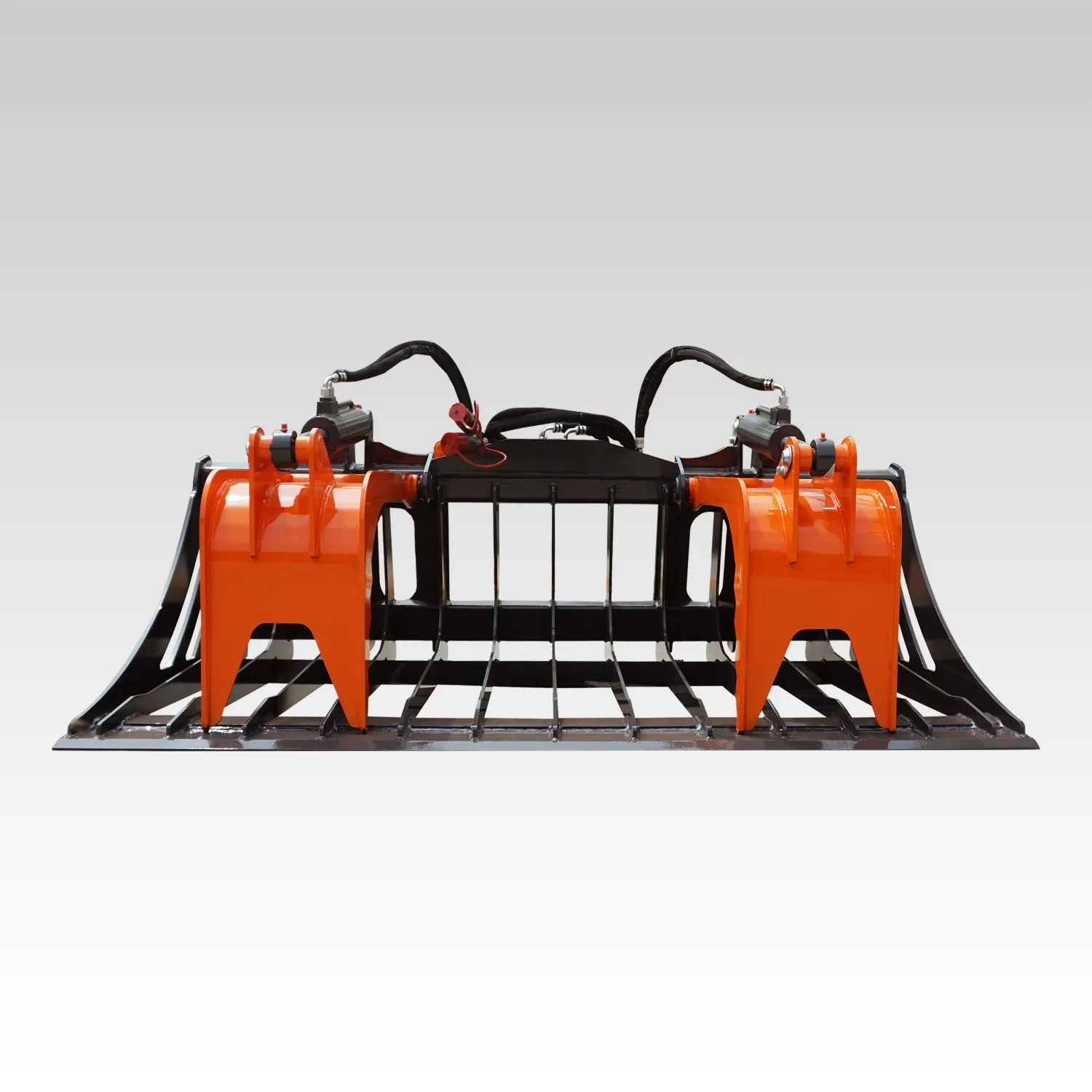

0412 Skeleton Rock Grapple Bucket
一、Pictures
The Skeleton Rock Bucket Grapple is engineered to pick rocks and debris from the soil with the added feature of independent grapples to secure a variety of materials. Extra long tines allow you to carry larger loads. Gusseted tines make this attachment versatile for rooting and back dragging as well.Open design for excellent operator visibility.Extra long tines for carrying larger loads Tines designed to keep material from rolling forward Grade 50 steel bucket construction Gusseted tines for added strength Excellent for rooting and back dragging Independent grapples for uneven loads
Specifications:
Model | 041272 |
Overall length (mm) | 980 |
Overall width (mm) | 1845 |
Overall height（mm） | 715 |
Grapple distance（mm） | 980 |
Overall weight（kg） | 420 |
Teeth distance（mm） | 135 |
Suit to machines | Skid Steer Loader/Mini wheel loader |
Main features：
1.This attachment can be used for shovel, transportation, loading, grabbing, etc. It is suitable for processing block materials, such as recycled cardboard, metal scrap, garden branches and so on. It can also be used for garden removal of moving stones.
2.Please install the limit block (by the bucket and tipping bucket) according to the loader when fit the small loader.

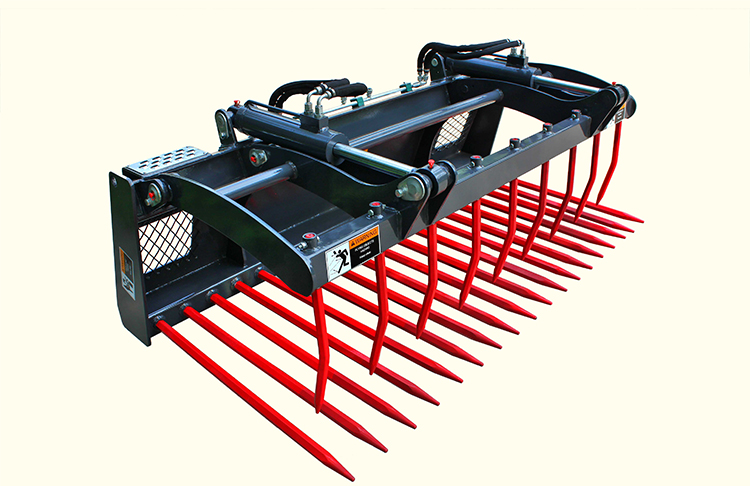

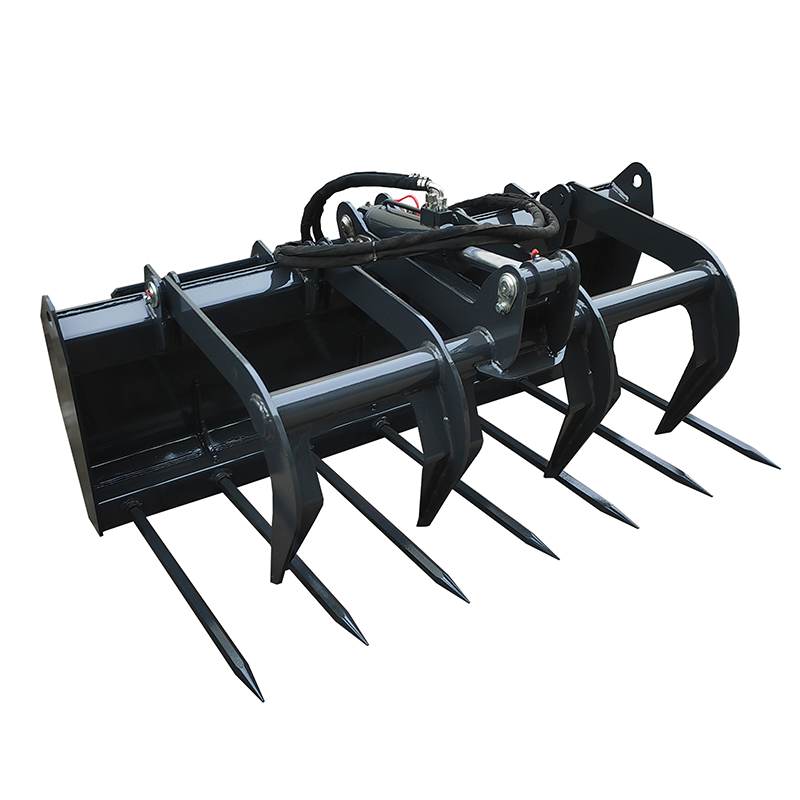

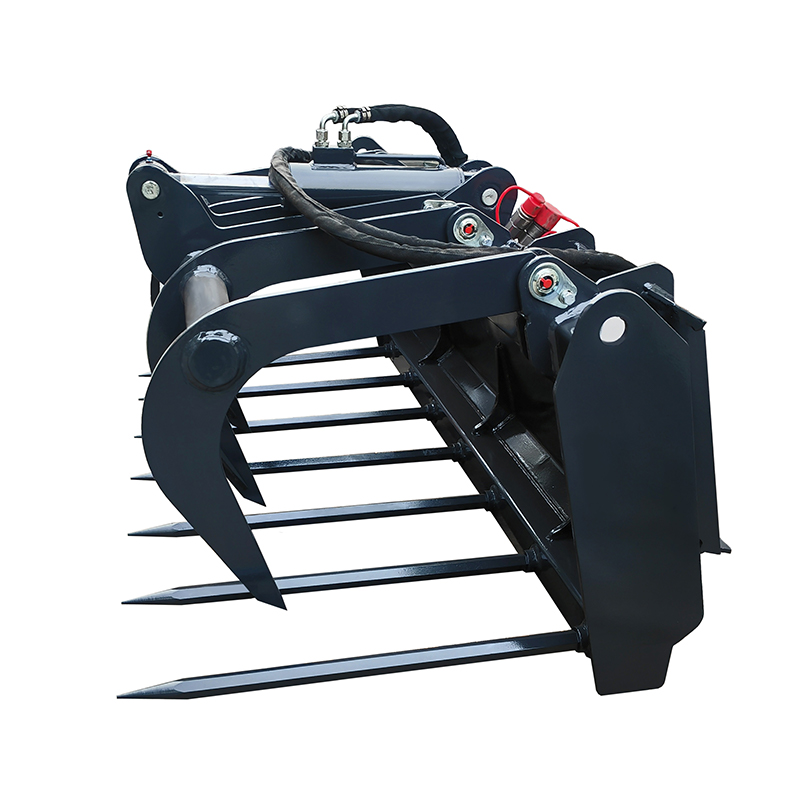

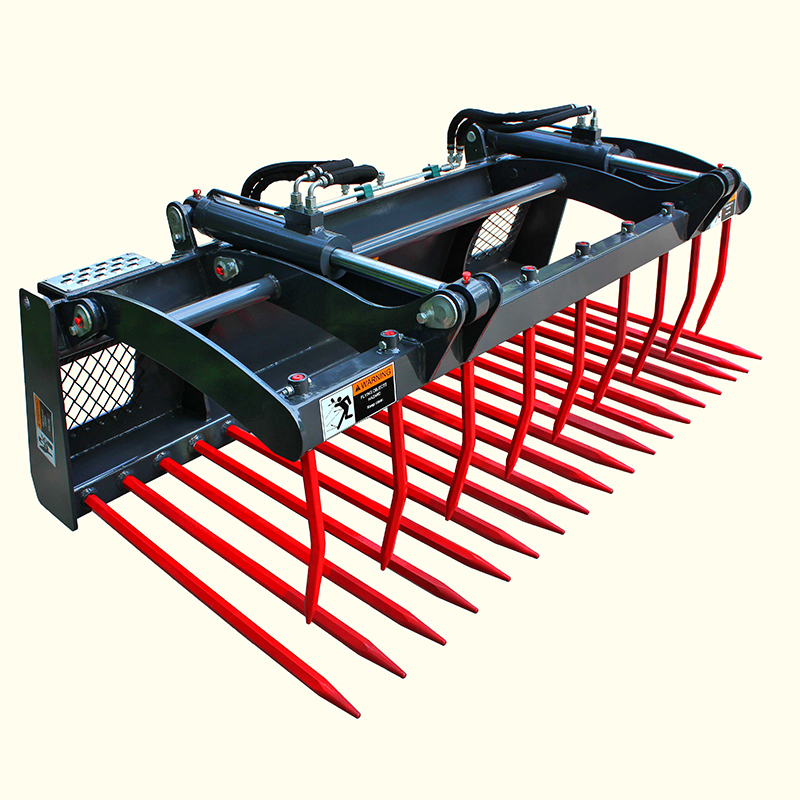

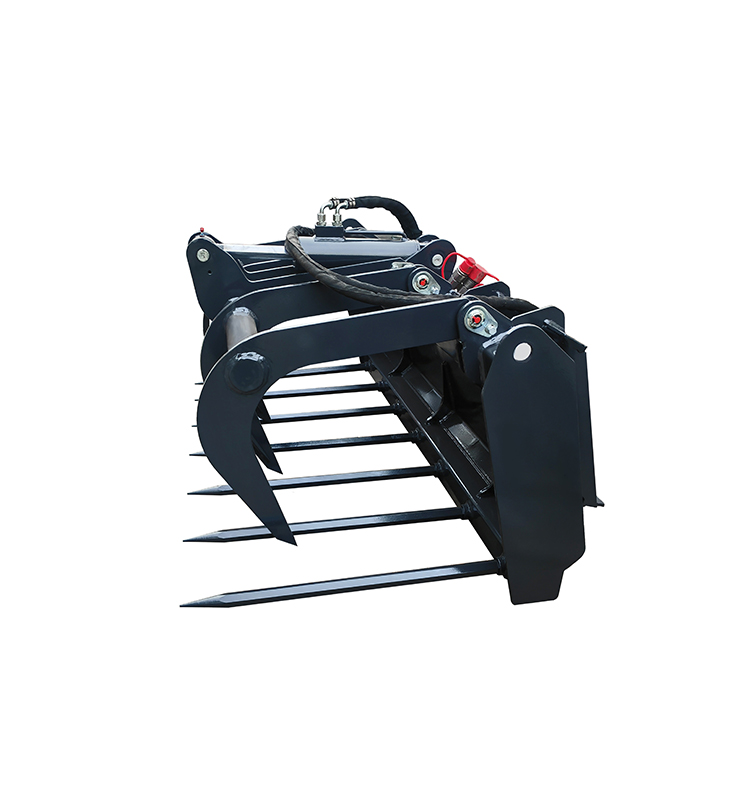

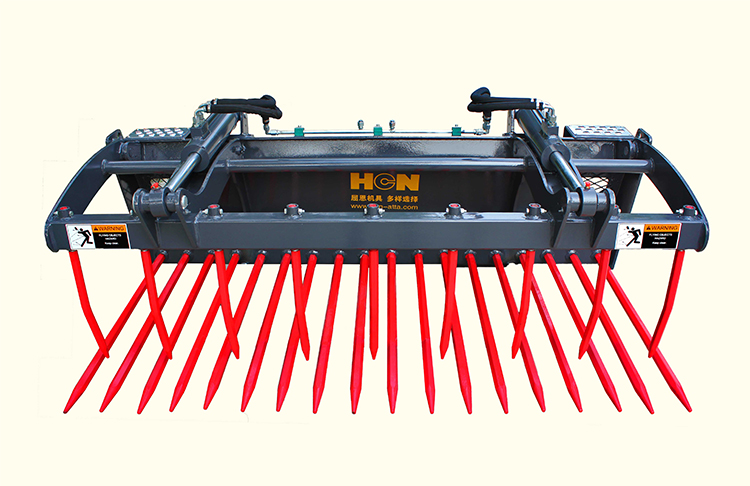

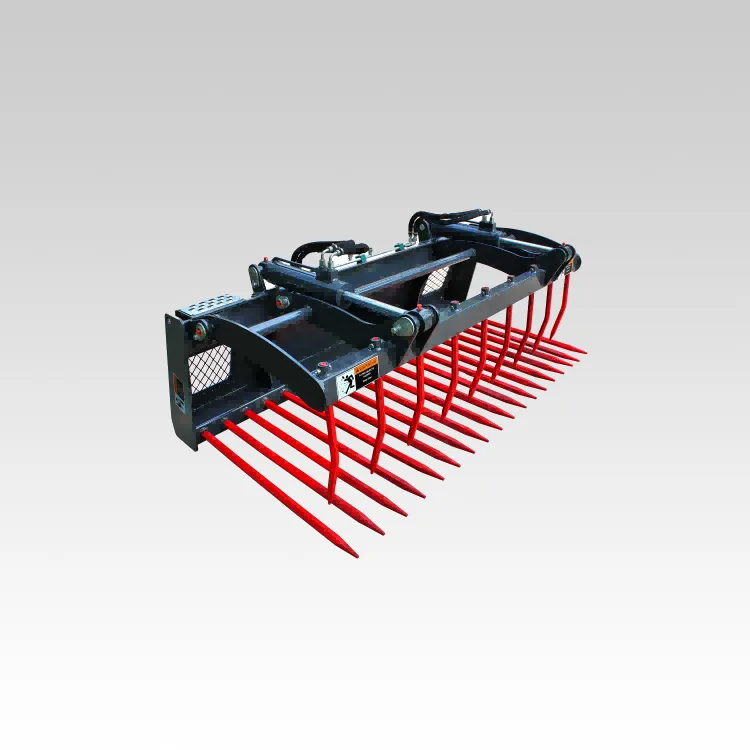

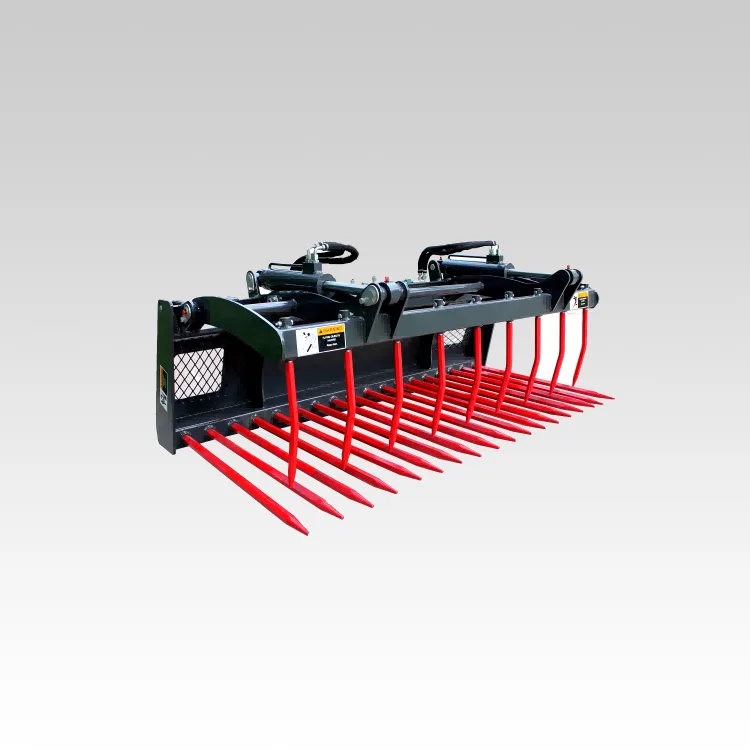

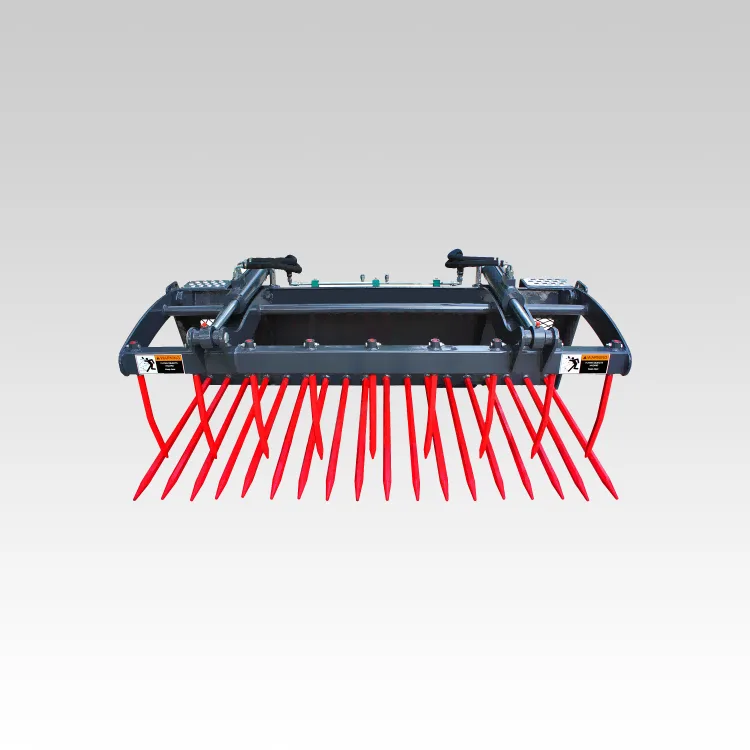

05025 Series Agricultural Fork
Manure Grapple
This Utility Tine Grapple from HCN is made for skid steers, and tractors with a universal skid steer mount. Excellent for picking up brush, manure, hay or any other material. The whole attachment is made with quality steel and is made heavy duty with inside gussets in the frame for durability.
The grapple comes with hoses and couplers that are well protected in the design of the hose routing. The cold-rolled tines are capable of being replaced by unscrewing the nut that holds them securely in place. This manure bucket can come with a global/euro mount. If you have any questions about your next manure bucket, please give us a call.
一、Details：
Model | 052572 |
Overall width(mm) | 1820 |
Overall Length(mm) | 1050 |
Overall Height(mm) | 730 |
Opening span（mm） | 1000 |
The number of Tines | 9 |
Bottom Tines number | 18 |
Weight（Kg） | 330 |
Suitable pressure（MPa） | 12~20 |
Applicable traffic（L/min） | 30~50 |
Rated load（Kg） | 600 |
These forks are ideal for easy handling of manure, silage and grass.
