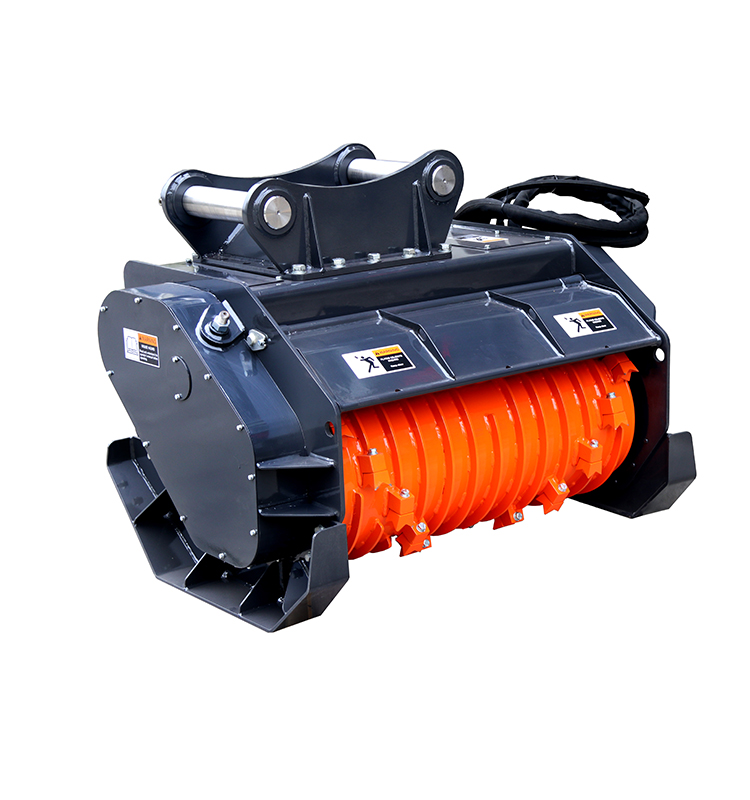

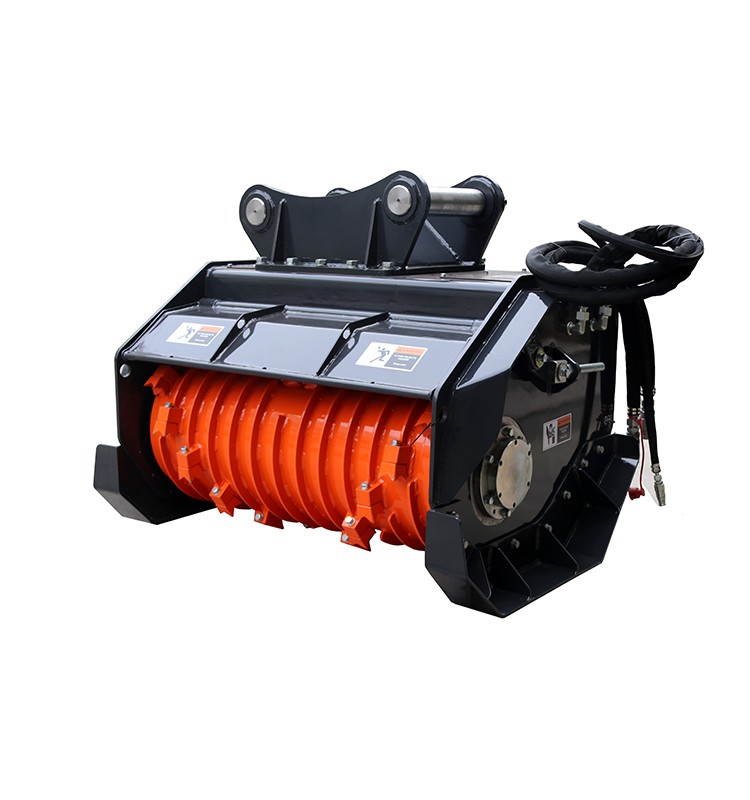

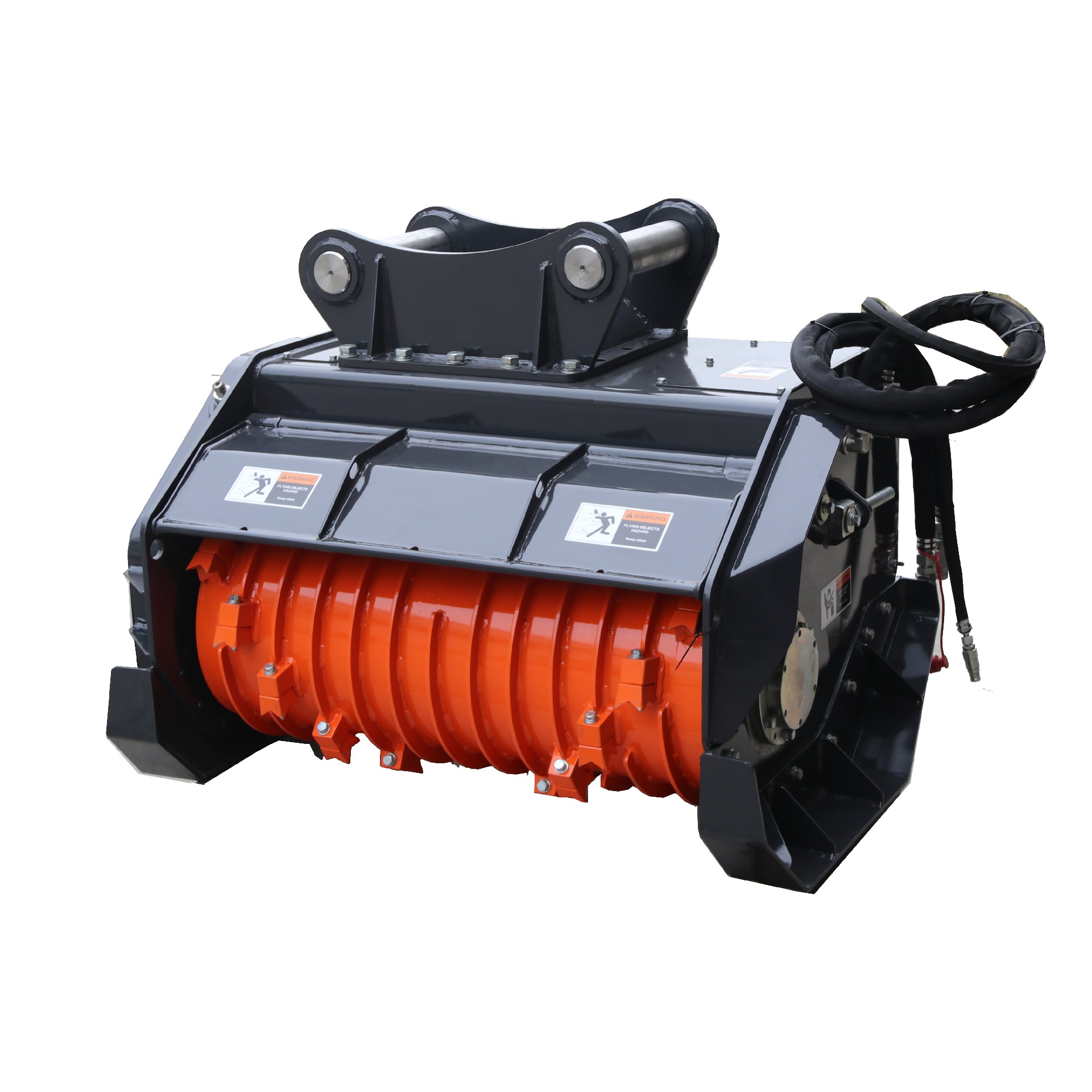

0513 Series Forestry Mulcher
Hot Products
Product Description

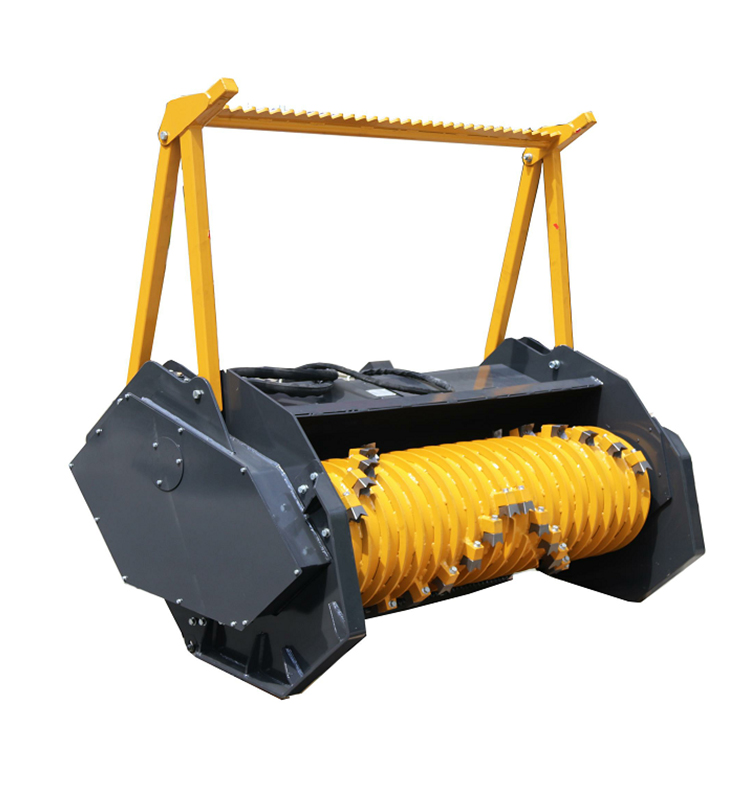

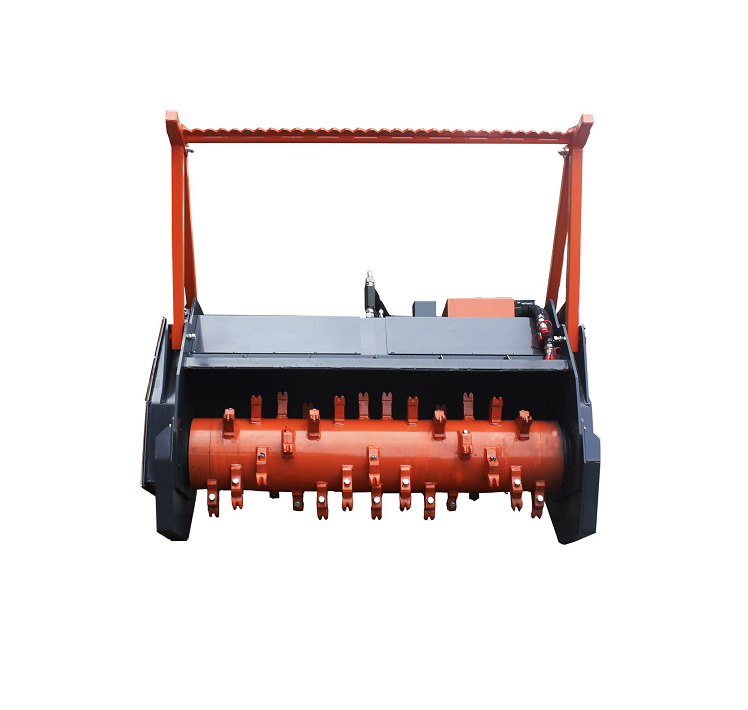

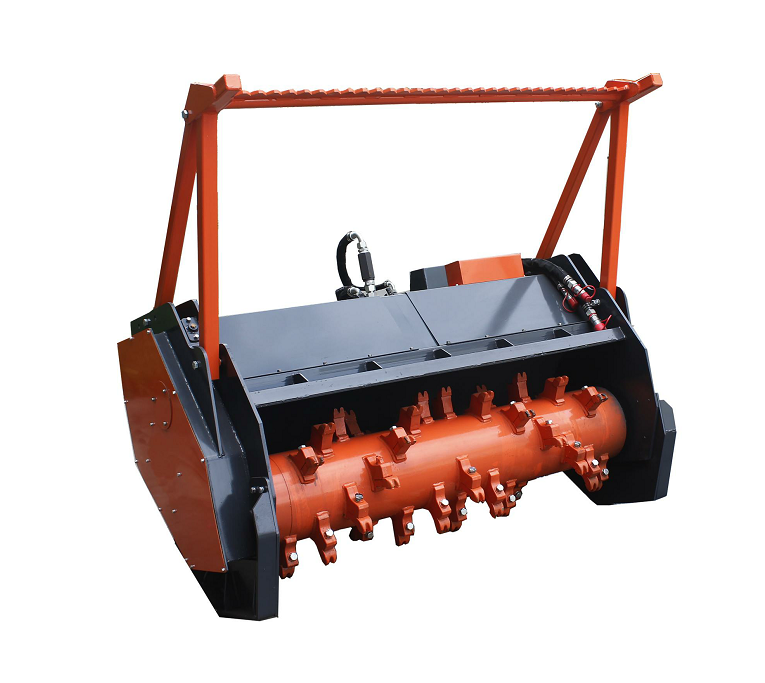

The HCN’ 60” skid steer forestry drum mulcher is designed to work for high flow skid steers to turn brushes and trees into a fine mulch for quick decomposition. Turn trees and underbrush from unsightly overgrowth to mulch ,Punch into large-diameter trees and bring the uppermost limbs quickly to the ground
Featuring an independent cooling system with a radiator, forty tough alloy mulching teeth, an axial piston motor, and synchronous belt drive this heavy-duty drum mulcher gets even the toughest jobs done with ease. The triple helix teeth layout maximizes cutting efficiency and the sealed transmission chamber ensures nothing slows down mulching. The forward spinning motion makes quick work of trees and brushes.
Product Details
Features:
· Triple helix claw teeth layout for hardwood, stumps, and branches
· Heat-treated, bolt-on forged alloy teeth
· Hydraulic axial piston motor and synchronous belt drive system
· Pressure gauge, radiator, and independent cooling system
· Oil bath lubrication bearing system
· Sealed transmission chamber to protect belts, pulleys, and key components
· Rear chain safeguard
· Hydraulic hoses and ½” flat-faced couplers
· Manually adjustable push bar
Specifications:
· Product dimension: 35” x 73” x 66” (L x W x H)
· Product height: 66” (w/push bar), 43” (w/o push bar)
· Minimum loader power required: 75HP
· Cut width: 60”
· Cut capacity: 8″ diameter
· Rotor diameter: 12'' (w/o teeth), 24''(w/teeth)
· Flow range: 24-32 GPM
· Maximum pressure: 3045 psi
· Cut depth: 4.0”
· Mulching teeth: 40
Packaging:
· Dimension: 80” x 50” x 59” (L x W x H)
· Shipping weight: 2400 lb
Specifications:
Model | 051340I | 051360 | 051372 | 051384 |
Overall Length (mm) | 950 | 900 | 900 | 900 |
Overall Width (mm) | 1350 | 1860 | 2160 | 2410 |
Overall Height (mm) | 1050 | 1680 | 1680 | 1680 |
Transport height (mm) | 1050 | 1080 | 1080 | 1080 |
Operation Width (mm) | 1000 | 1550 | 1850 | 2100 |
Weight(kg) | 700 | 985 | 1125 | 1235 |
Work Flow(L/Min) | 110-140 | 110-140 | 120-150 | 120-150 |
Operating Pressure (Mpa) | 21 | 21 | 21 | 21 |
Host machine lifting capacity requirements (T) | >1 | >1 | >1.1 | >1.2 |
Depth of rotating plough (mm) | ≤100 | ≤100 | ≤100 | ≤100 |
Number of blades(PCS) | 25 | 40 | 48 | 56 |
Radiator Voltage(V)(optional) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
Adaptive Machine | 85HP以上 | 85HP以上 | 100HP以上 | 100HP以上 |
EXW Price | ||||
HS CODE | 8431499900 | |||
Package | 2300*1200*1340 |

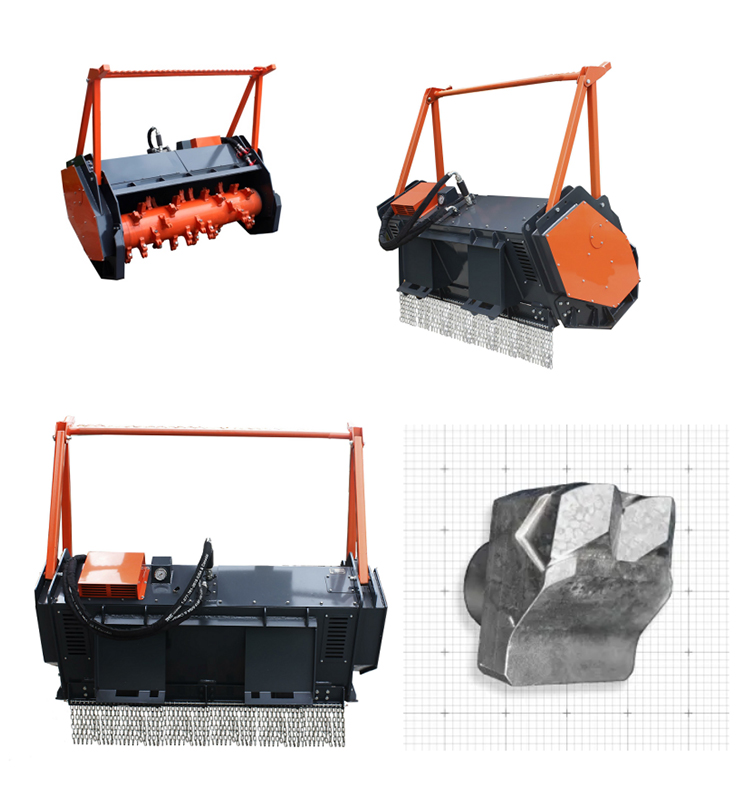

Photos:

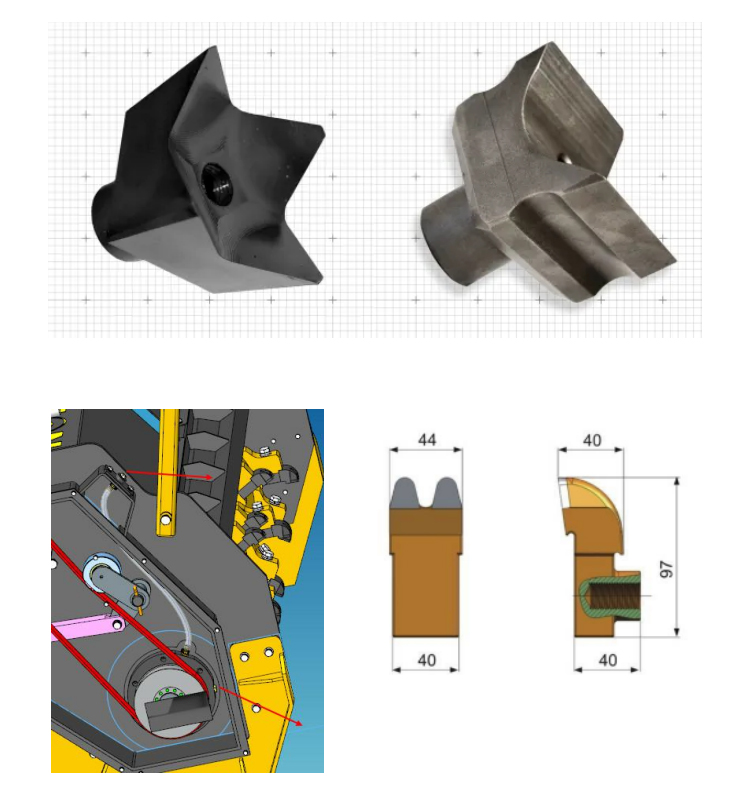

Self adjusting motor and belt driving system, easy to maintain, high speed motor, Maximum to 2000r / min, Three kinds of mulcher teeth can be customize manufacture.

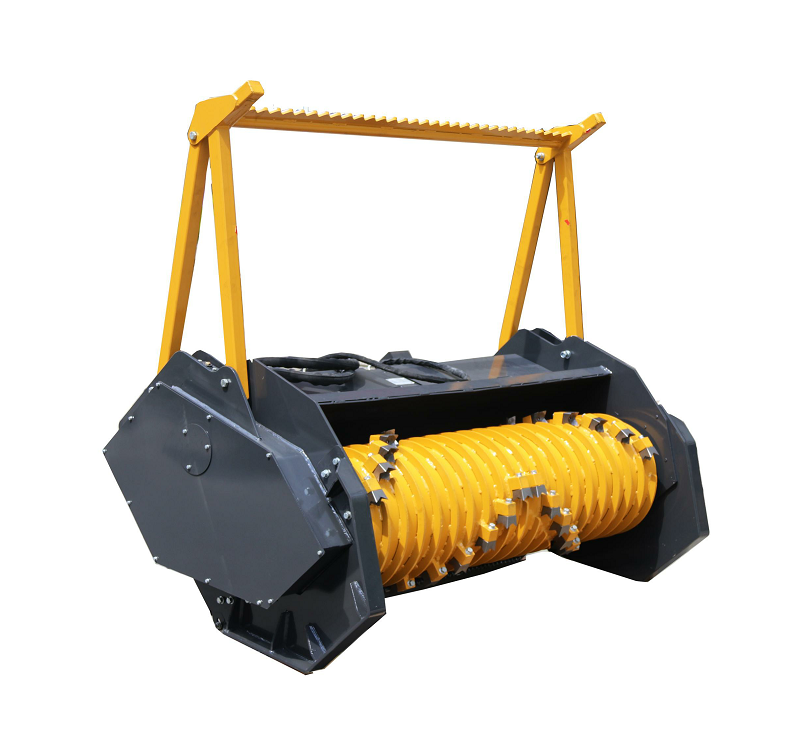

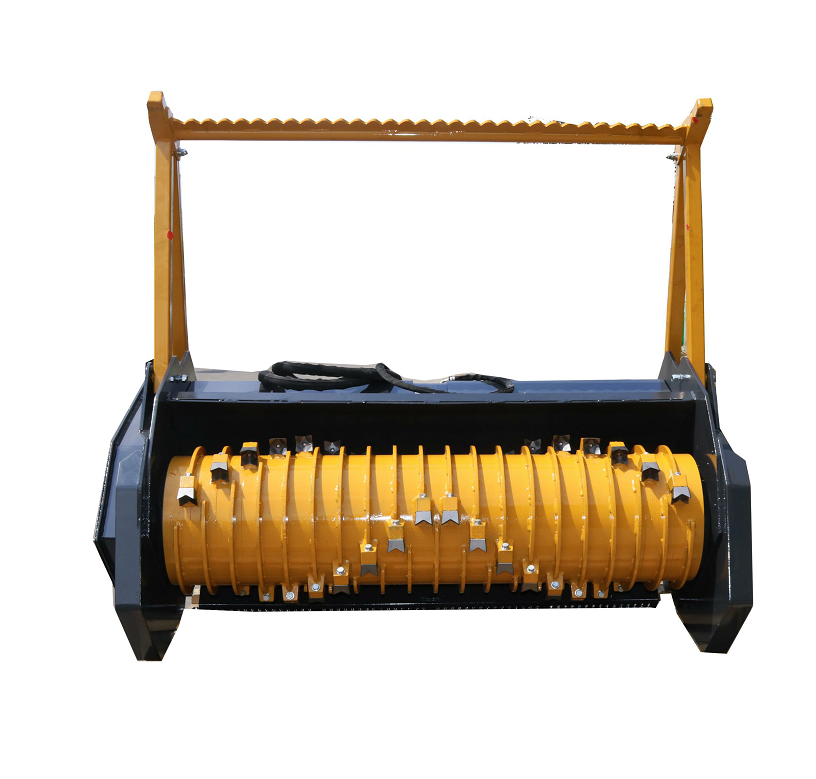

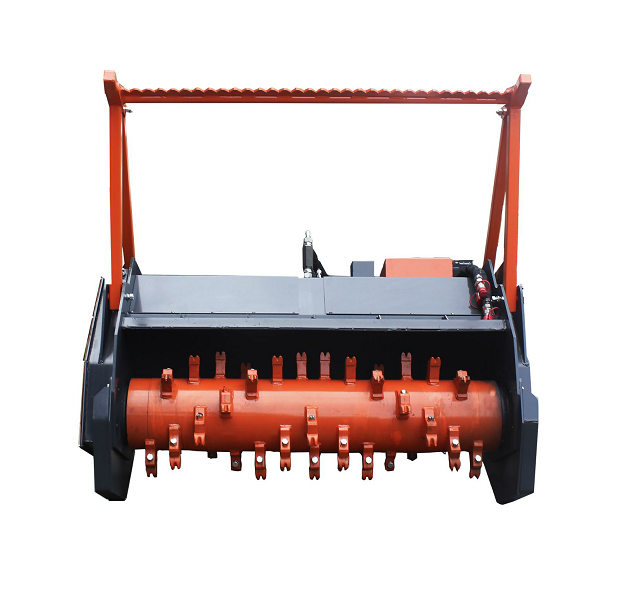

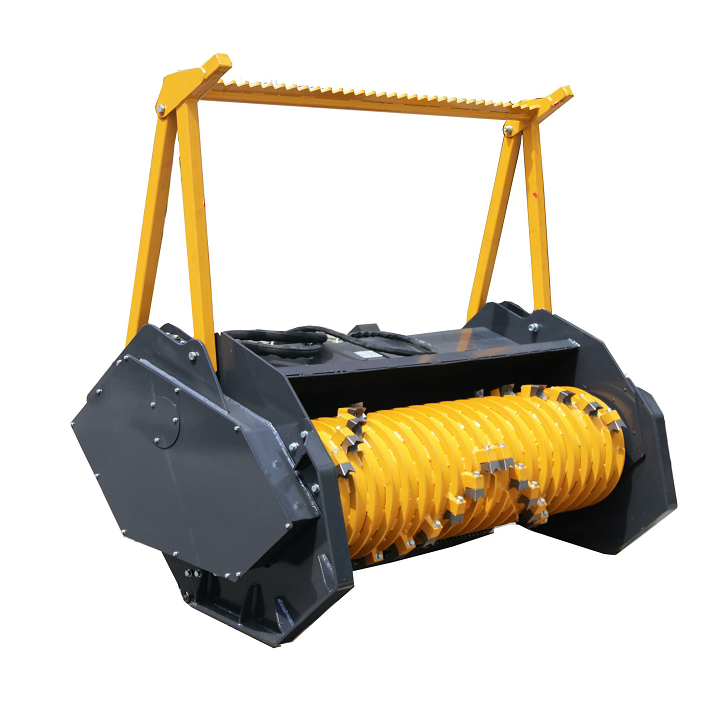

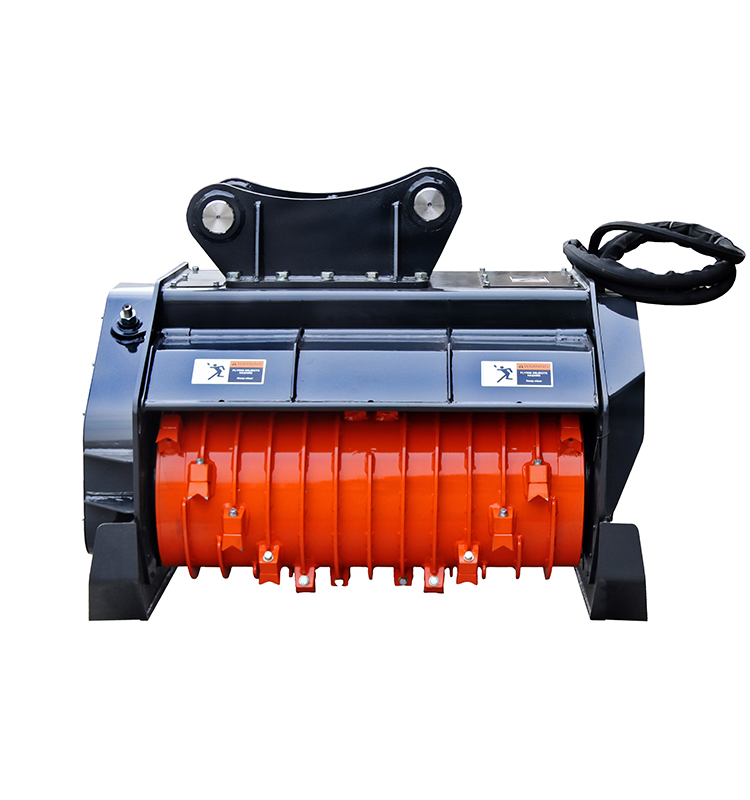

Drum Mulcher
Built of high-strength, steel-body construction, the drum mulcher attachments provide leading durability and the performance to tackle tough land-clearing jobs. These drum mulchers punch into and pulverize trees up to 8 inches in diameter. The lineup of drum mulchers replaces the forestry cutter attachments.
The drum mulchers are available in 40-inch, 60-inch 72-inch and 84-inch cutting widths. Heavy-duty carbide teeth on the standard rotor drum rip through hard and soft woods, providing long life and uptime protection.
Depth control rings on the optional drum limit engagement of the cutting teeth for more efficient operation and a consistent mulch.
Compact size of the drum mulcher accommodates any tree removal job.
Reinforced push bar and optional low-profile front gate provide optimal visibility to the drum and cutting teeth.
Hydraulic drum brake brings the drum to a stop within 20 seconds after deactivating the auxiliary hydraulics.
Redesigned hydraulic block and drive components enhance durability.
Bolt-on skid shoes are replaceable for greater convenience and operator uptime.
Hose clamps and hose sling protect hydraulic hoses from kinking, contact wear and entanglement.
Rear debris chains obstruct debris thrown toward the rear of the attachment.
Top Tasks
Clear trees and brush for:
Utility line and right-of-way maintenance
Site preparation
Clean and maintain property
Disaster mitigation
Cut firebreaks
Orchard and vineyard maintenance
How It Works
Teeth on a horizontal rotating drum rip through standing trees and thick brush, turning the material into a bed of mulch.
