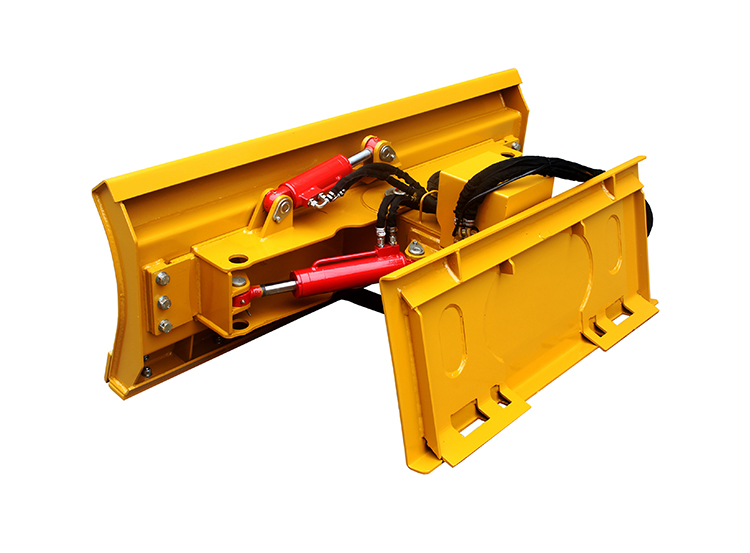

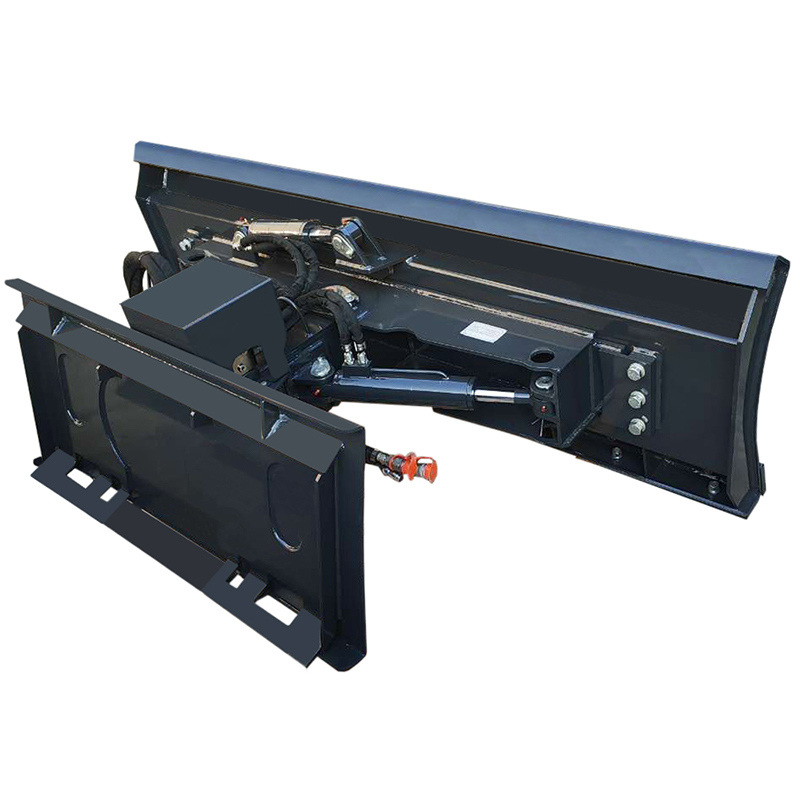

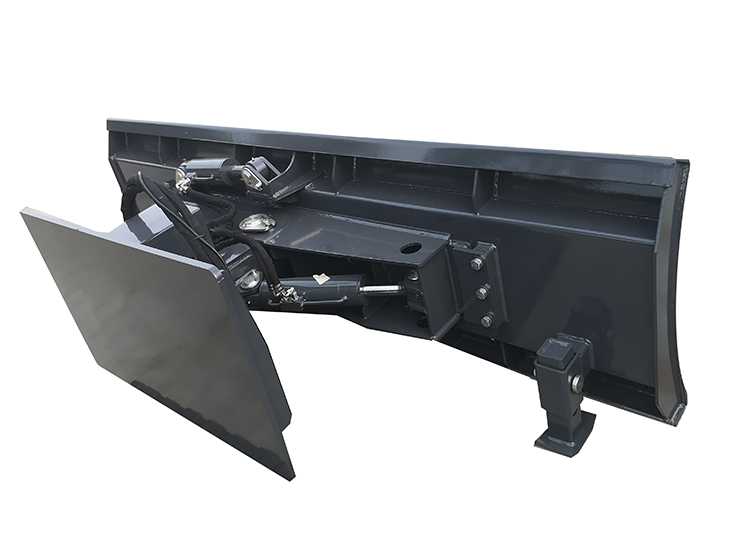

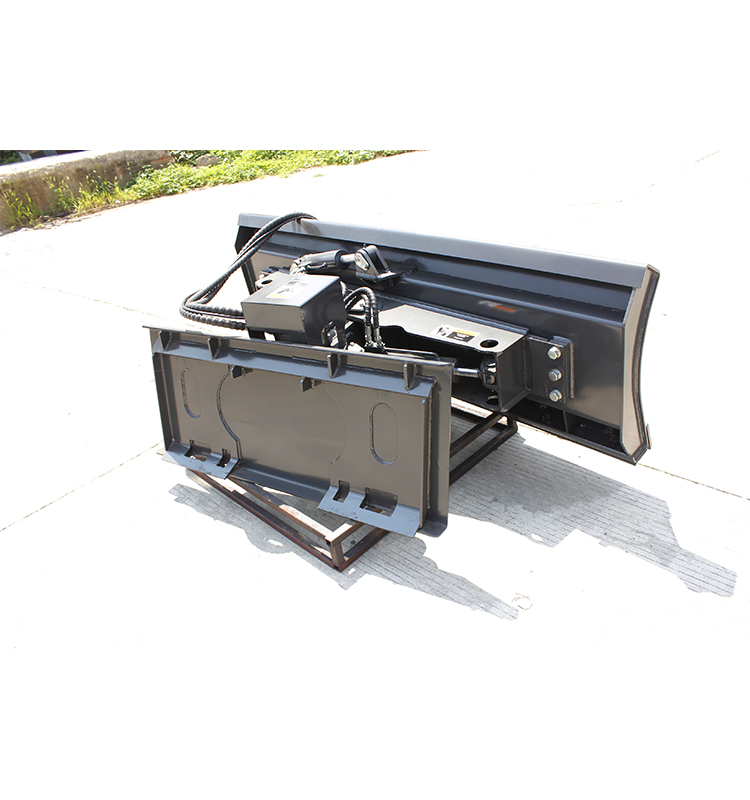

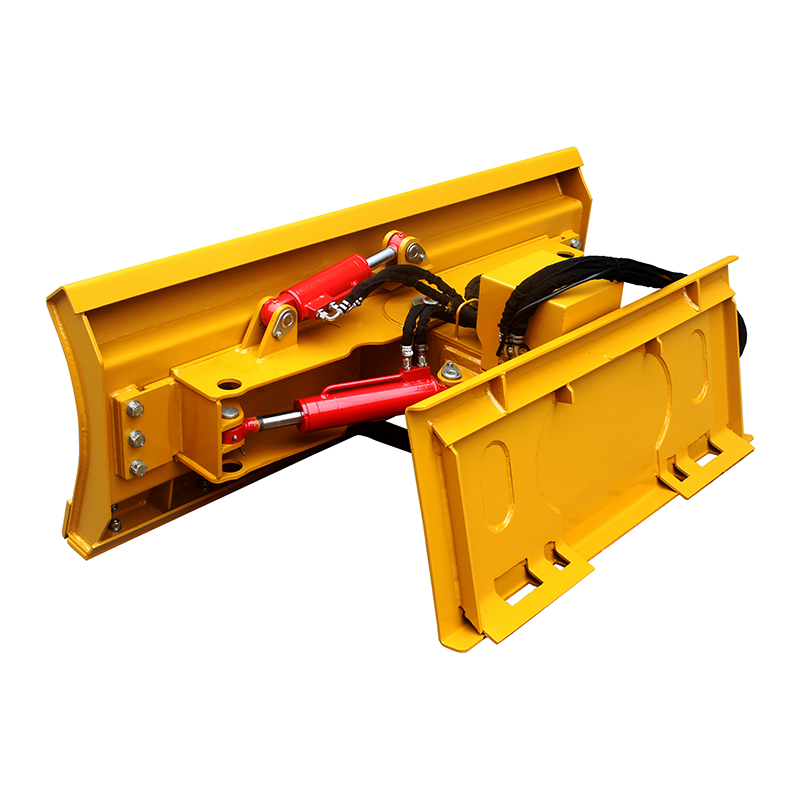

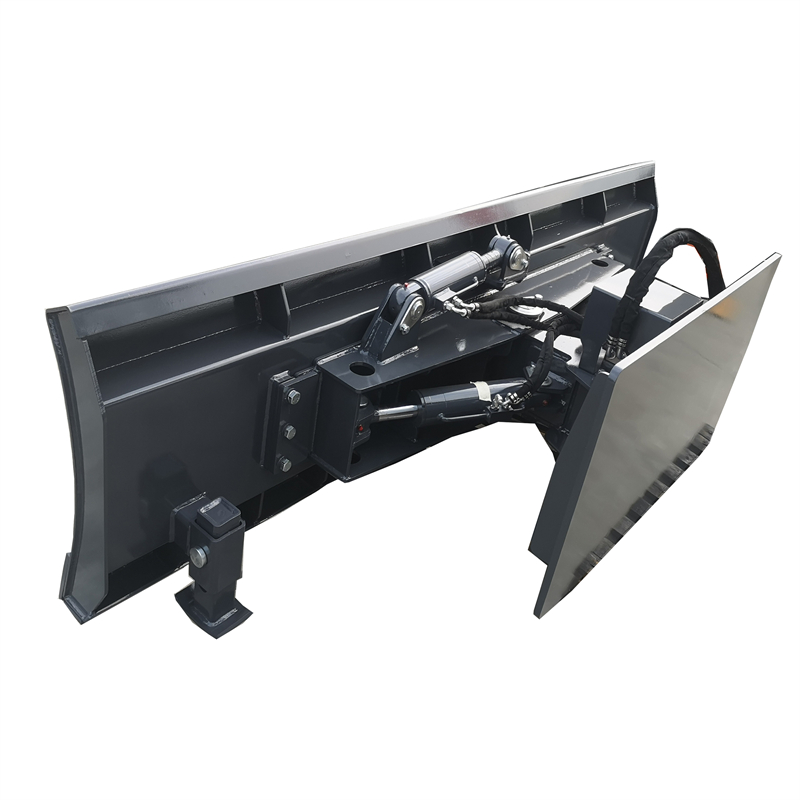

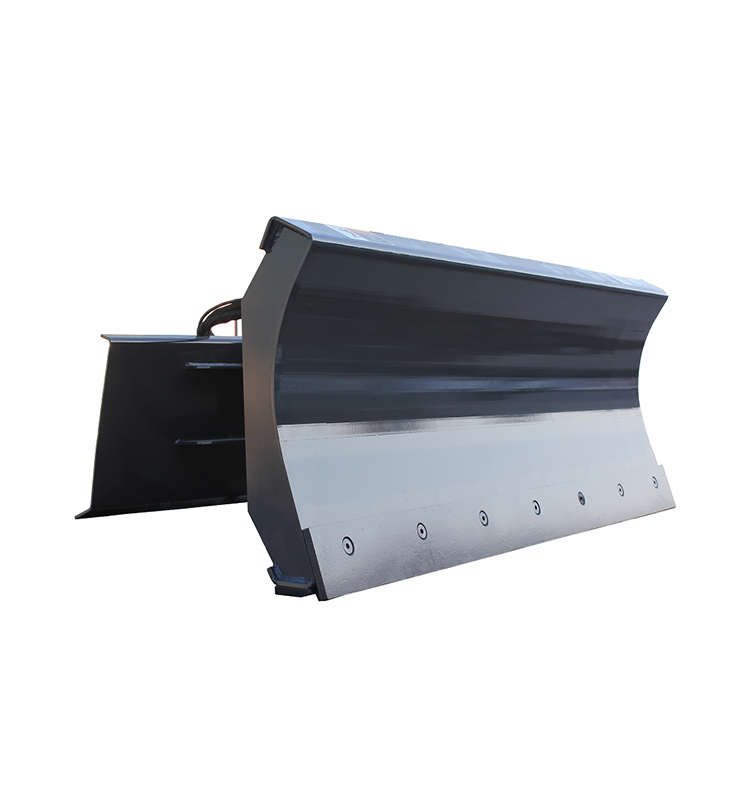

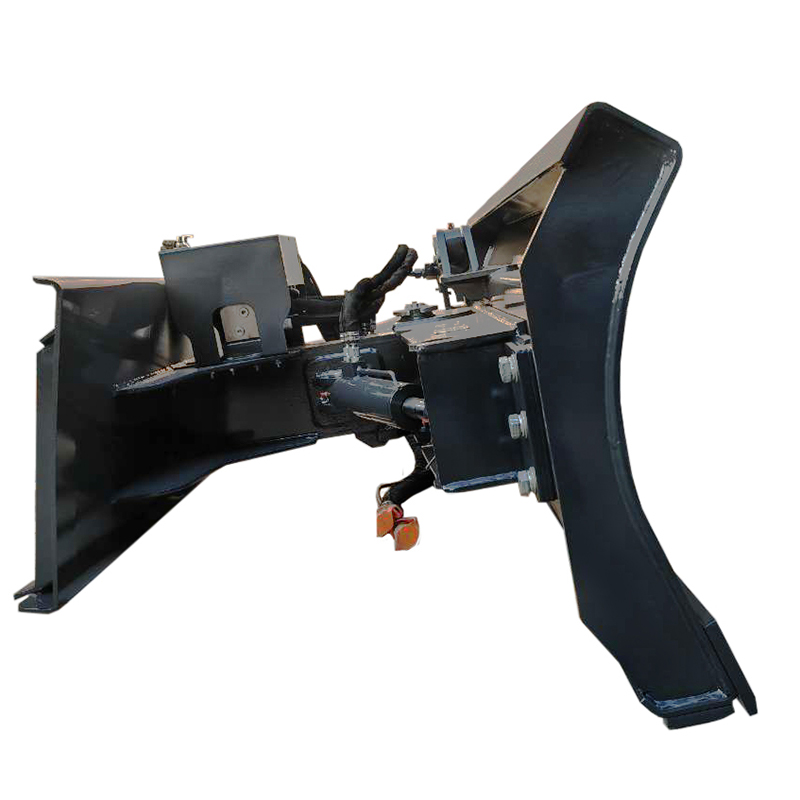

0309 Series Dozer Blade
Hot Products
Description:
1Skid Steer Dozer Blade is one of the most common earth moving attachments, effectively turning your skid steer into a dozer machine. Dozer Blades allow you to move dirt, backfill, grade, and impose your will on the landscape with your skid steer. You'll find various styles including 4 way and 6 way angle blades in several sizes and brands below.
2.Our assortment of blades meet the high performance standards that are needed in today's competitive market. Each blade design has been tested to see that productivity and durability is the number one reason you will want purchase one of our blades.
3. The HCN Tilting Dozer Blades are available in either 72" 84" or 96" width and feature integrated tilting systems for precise grading, leveling, and trenching. With a tilt indicator visible from the operators position, you will be able to clearly see the blades position as you tilt left or right 30º off center, and up to 10º off horizontal in both directions.
Product Details
· Universal skid-steer loader quick attach mounting, or use on skid-steers up to 110 HP

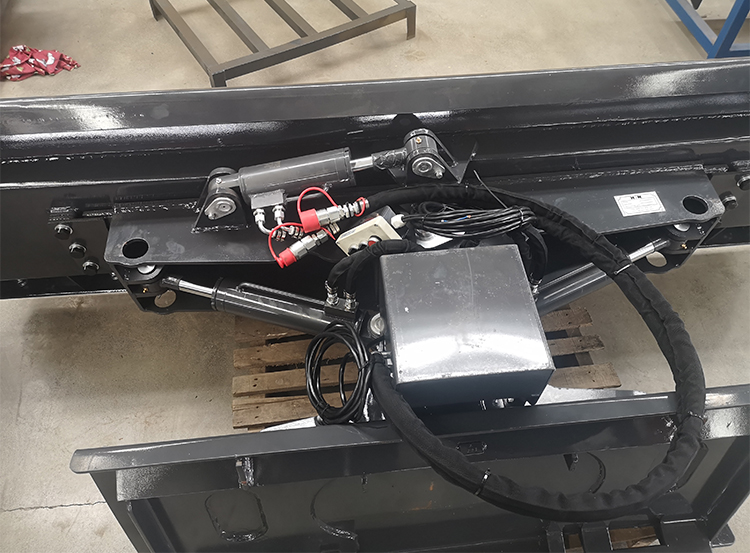

· Angle and tilt cylinders are interchangeable and equipped with self aligning bushings

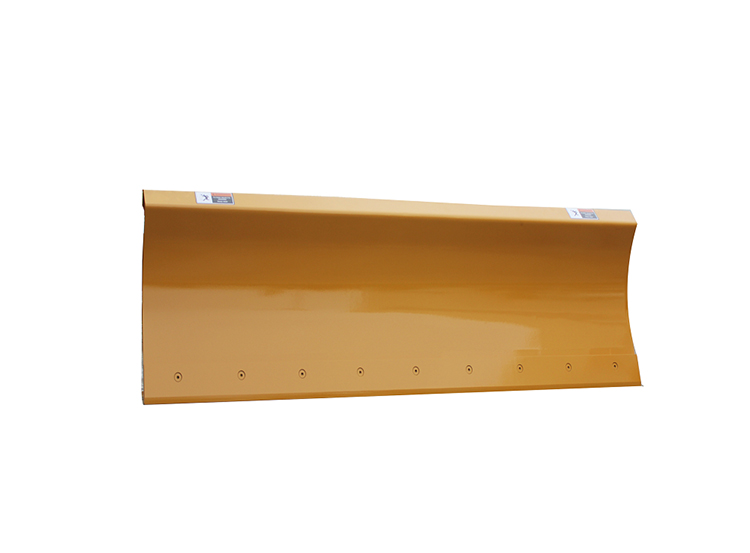

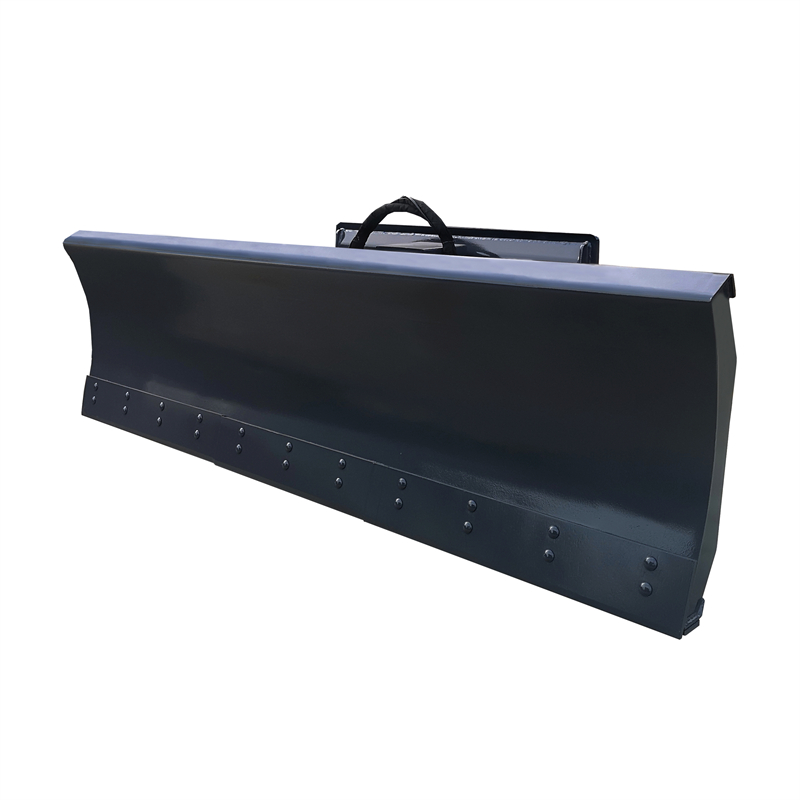

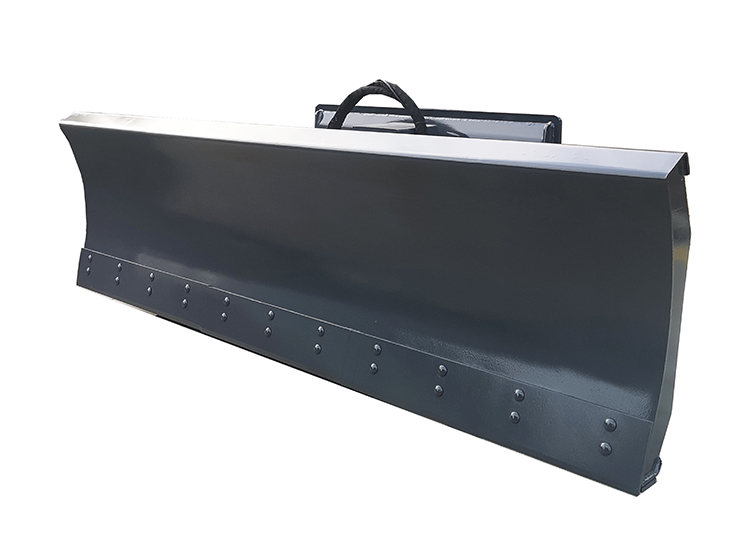

· Reversible ¾” x 8” bolt-on cutting edge & formed moldboard .31” thick & 28” high

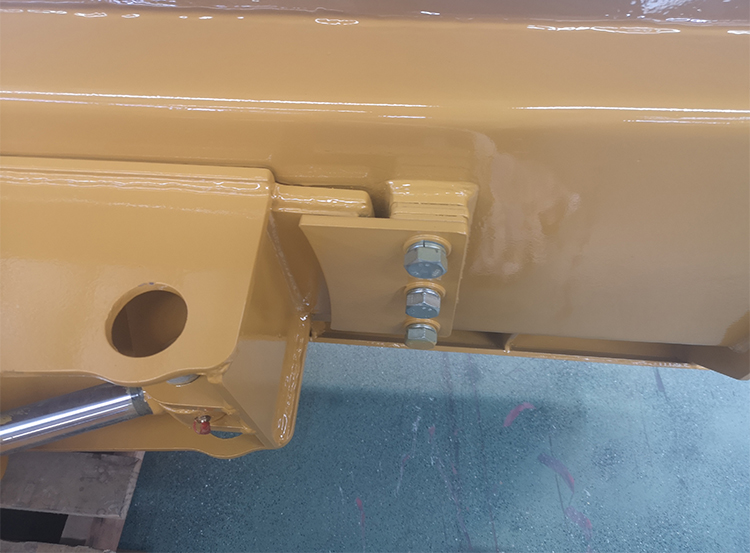

· Large 3” center pivot pin with hardened steel bushings
· Full length high carbon steel, replaceable skid shoe
Model | 030960 | 030972 | 030984 | 030996 |
Overall width (mm) | 1530 | 1830 | 2130 | 2400 |
Steering 30°width (mm) | 1270 | 1519 | 1845 | 2180 |
Overall Height (mm) | 700 | 700 | 700 | 700 |
Overall Length (mm) | 965 | 965 | 965 | 965 |
Deflection angle (°) | ±30 | ±30 | ±30 | ±30 |
Maximum angle of yaw (°) | ±10 | ±10 | ±10 | ±10 |
Weight (Kg) | 525 | 556 | 575 | 625 |
Working flow(L/Min) | 20-30 | 20-30 | 20-30 | 20-30 |
Operating Voltage (V) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
Maximum pressure allowed (MPa) | 21 | 21 | 21 | 21 |
Package Size (m3) | 1680*1100*900 | 1980*1100*900 | 2280*1100*900 | 2550*1100*900 |
Pack weight | 38KG | 40kg | 42KG | 45KG |
