Wheel Saw
Hot Products

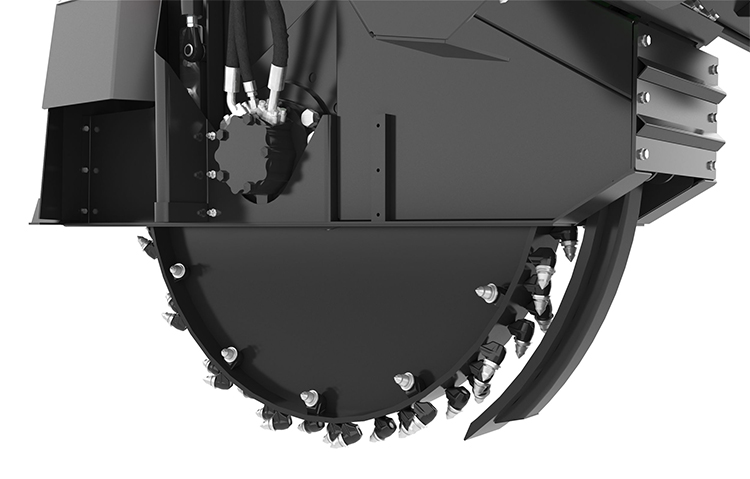

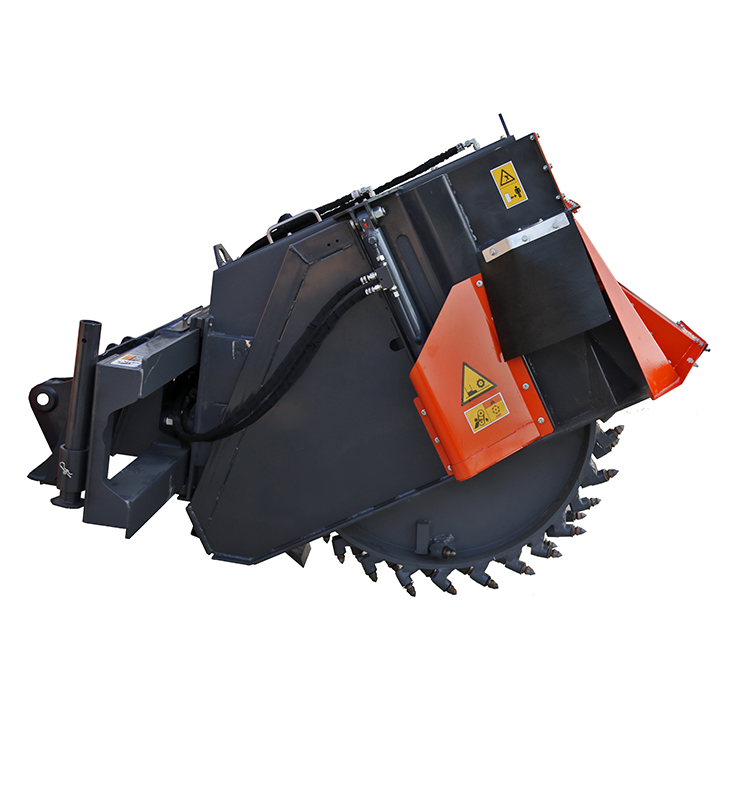

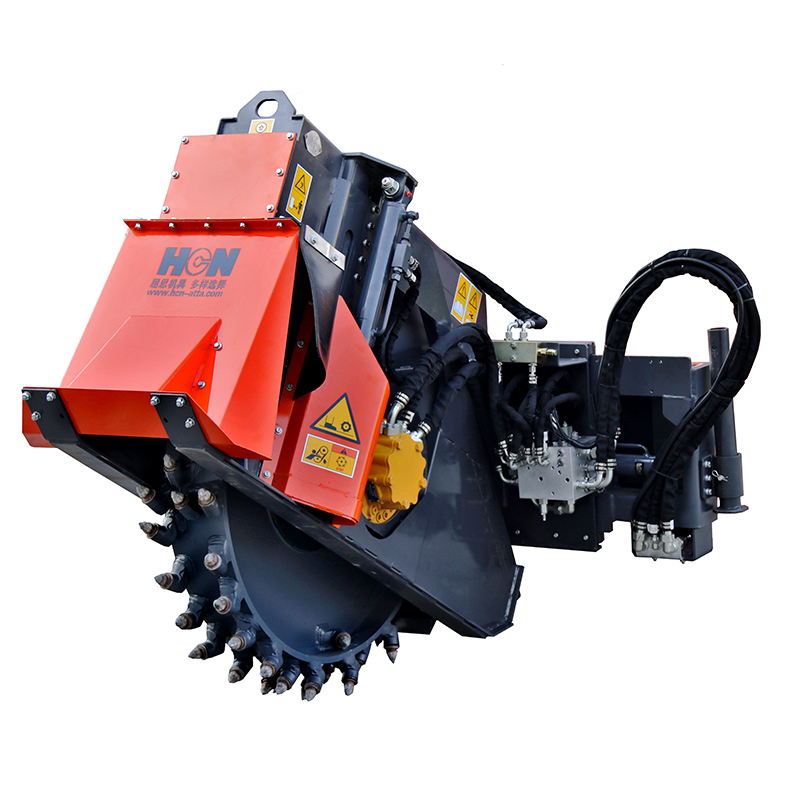

The hydraulic motor turns the carbide tipped wheel to cut material which then exits through openings on the side of the wheel saw. A hydraulic cylinder controls the depth of cut. A second hydraulic cylinder raises and lowers the trench cleaner to provide a clean bottom trench.

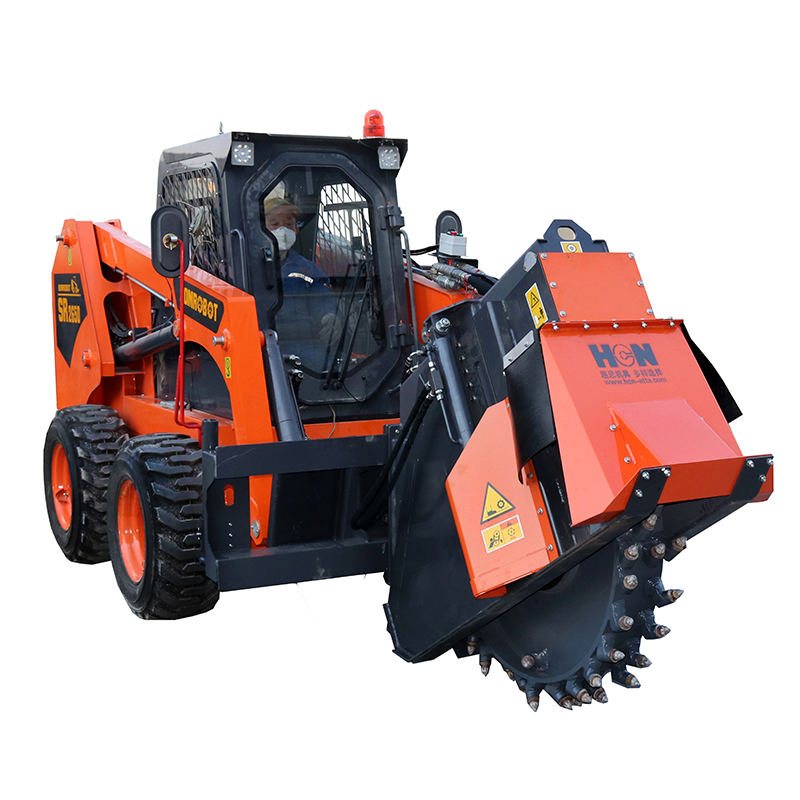

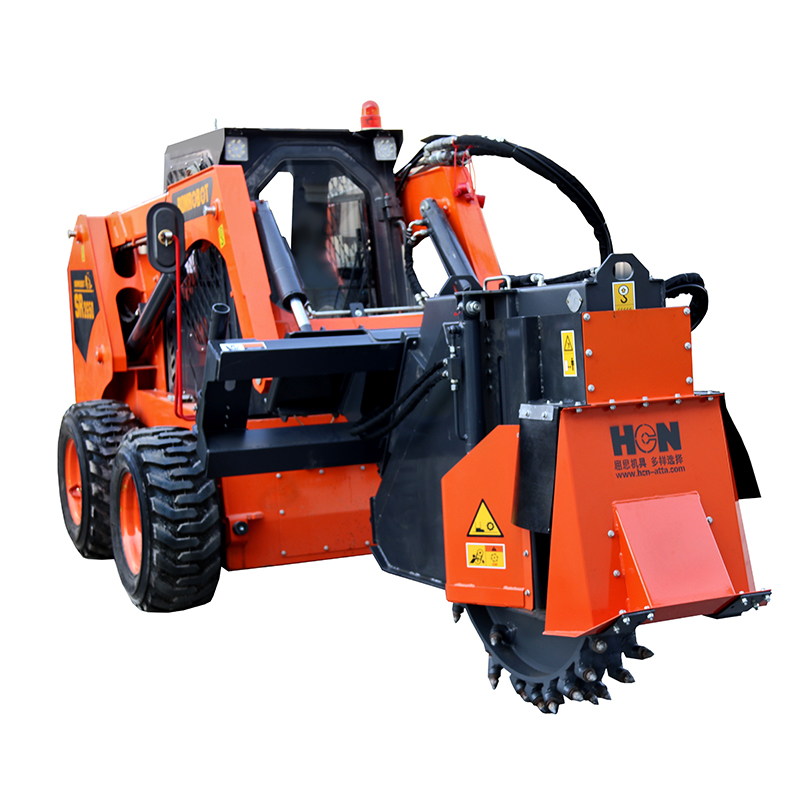

Driven by a high flow skid steer loader, this product is capable of cutting through asphalt, frozen ground, hard soils containing gravel, and can be positioned more accurately than pneumatic or hydraulic breakers for pavement repairs, drain pipes, gas It is an ideal tool for road maintenance and municipal construction.
.Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

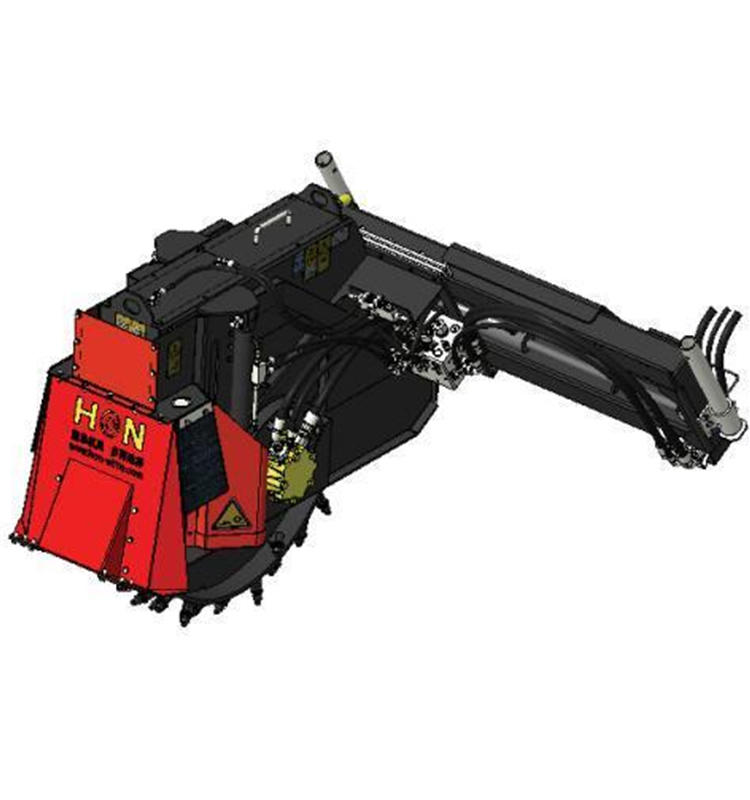

.Hydraulic side-shift is standard on all models and is controlled from the operator’s compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.
.Hydraulic depth control is standard on all models and is controlled from the operator’s compartment. Hydraulic depth control allows the operator to adjust cut depth on the fly from in cab to quickly adjust to the current job as needed.

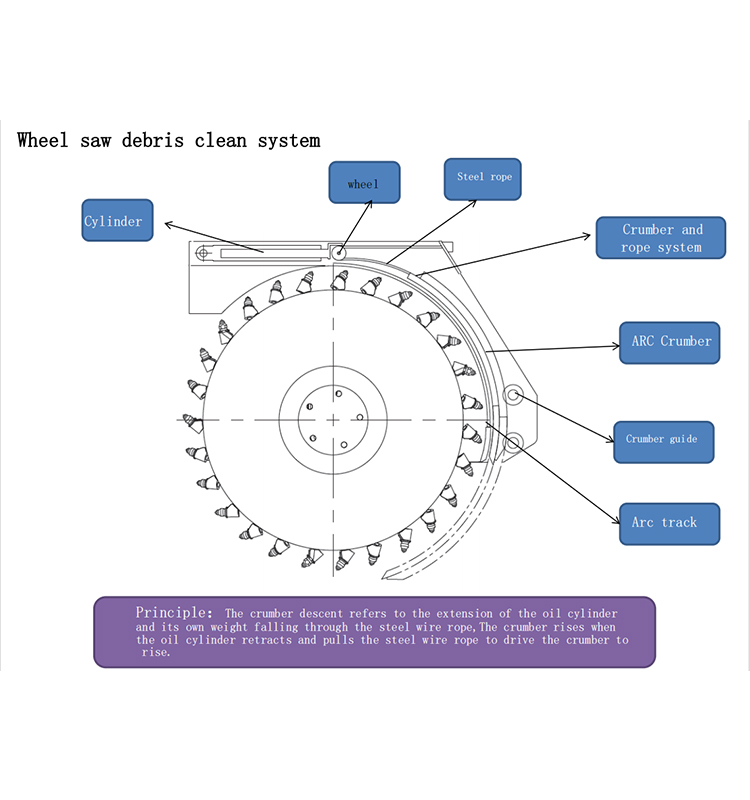

.The trench cleaning device is hydraulically operated from the operator’s compartment. The blade can be controlled up and down to remove spoil and ensure a clean trench.

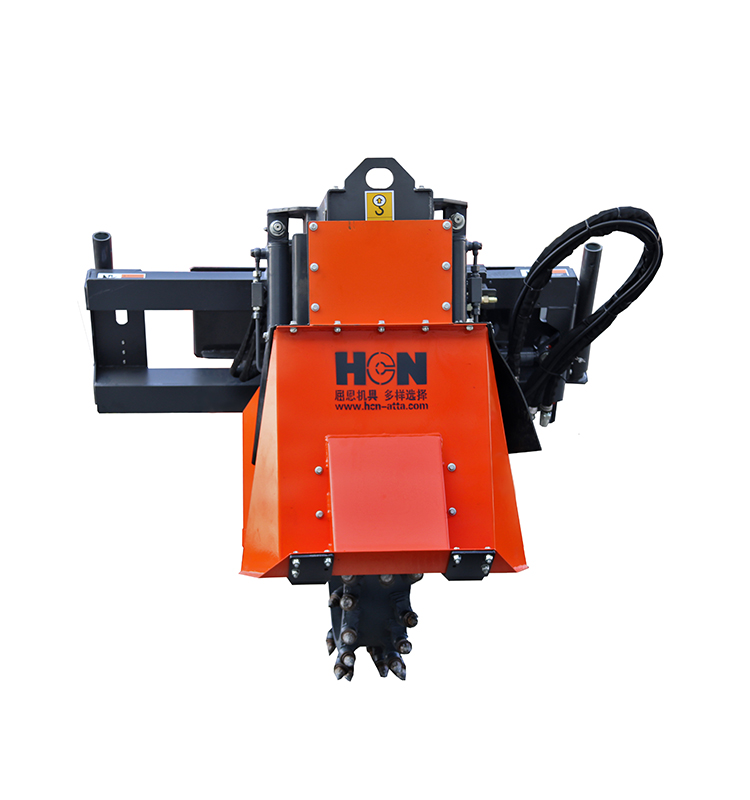

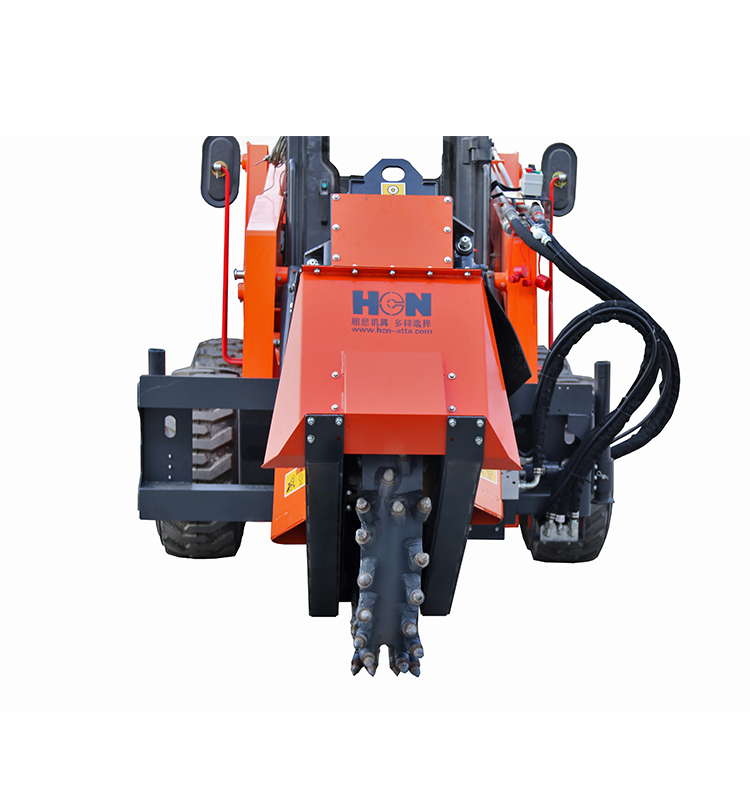

.Deflector plates remove spoil from the machine’s path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.
.Optional guide bar allows operator to position wheel saw for better visibility of cut path, allowing for a straighter cut.
Product Details
Photos
Product main technical parameters：
Mode | 030508I | 030512I | 030512IA | 030516I |
Trenching Width(mm) | 30 | 50 | 80 | 100 |
Trenching Depth(mm) | 350 | 350-450 | 450-600 | 450-600 |
Weight (Kg) | 400 | 600 | 700 | 1100 |
Flow(L/min) | 40-80 | 60- 120 | 60- 120 | 90- 150 |
Working Pressure(MPa) | 21 | |||
sideways distance(mm) | 650 | |||
Working voltage (V) (optional) | 12/24 | |||
Ditch cleaning device | None | Optional | Optional | Standard |
Suitable machine | Skid steer loader | Skid steer loader (High hydraulic flow) | ||
