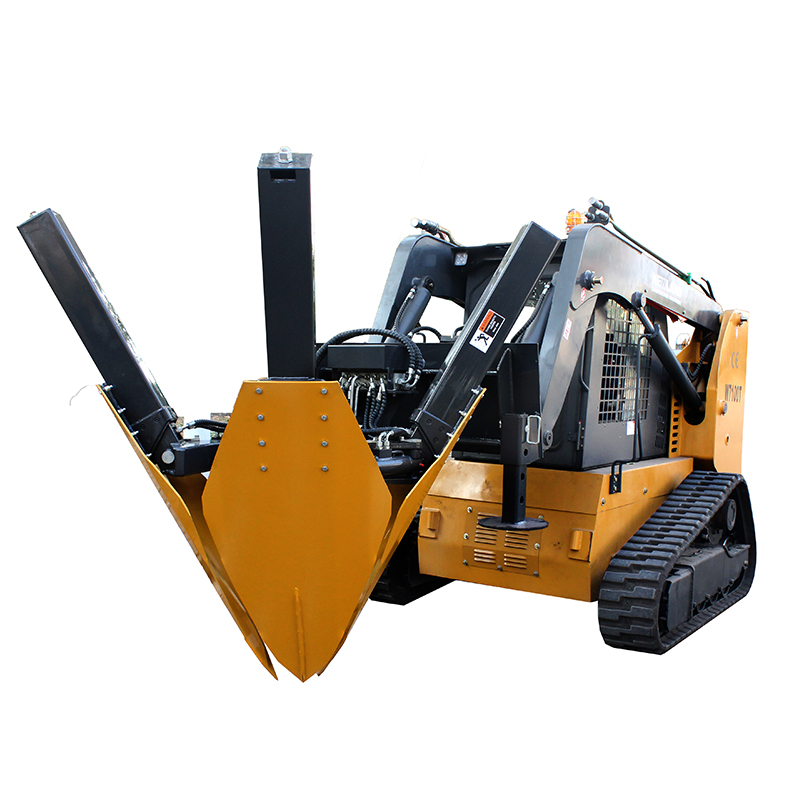

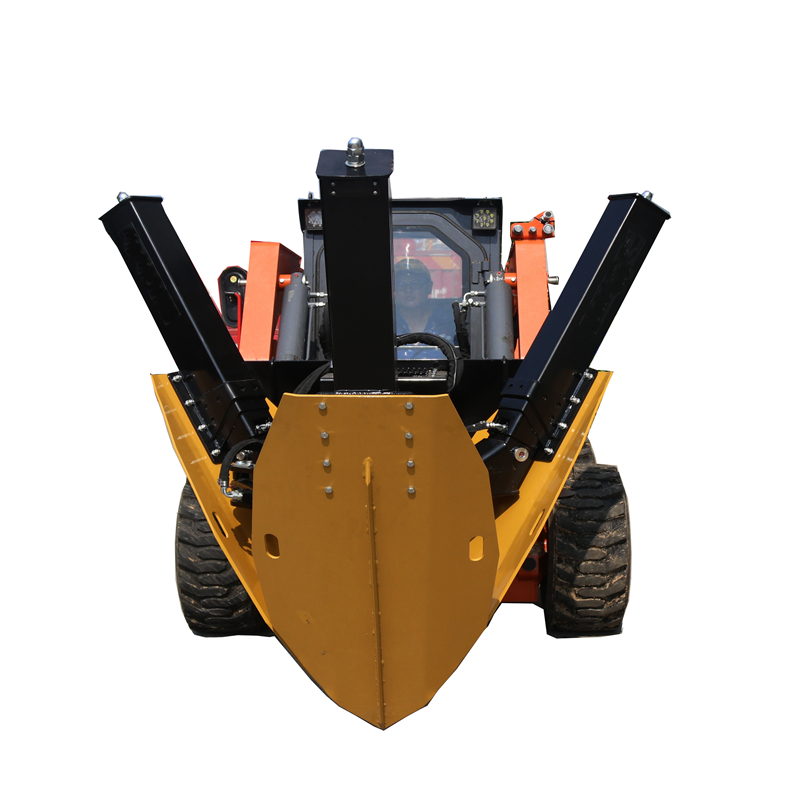

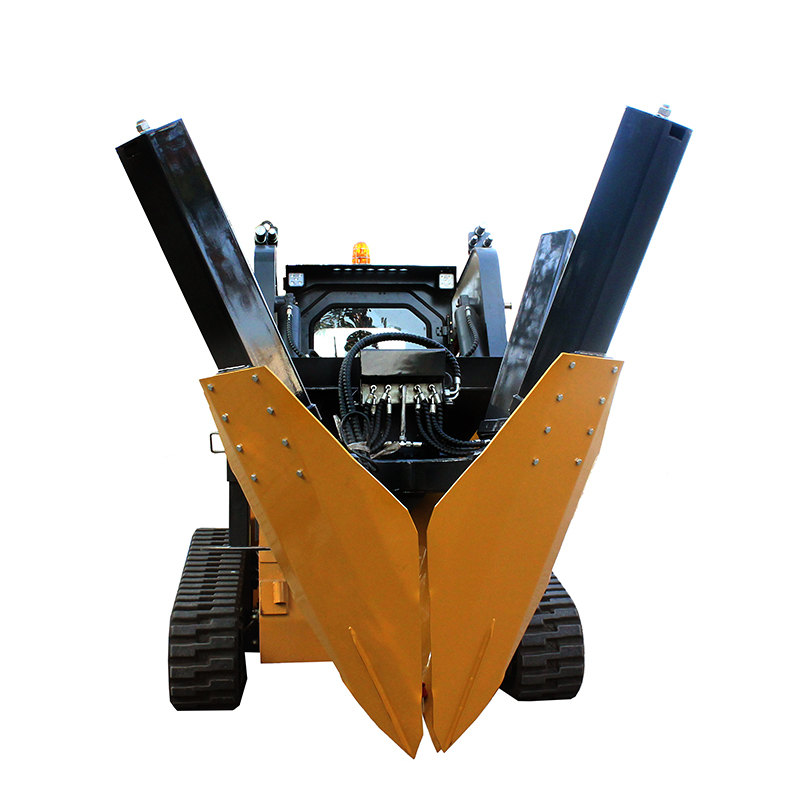

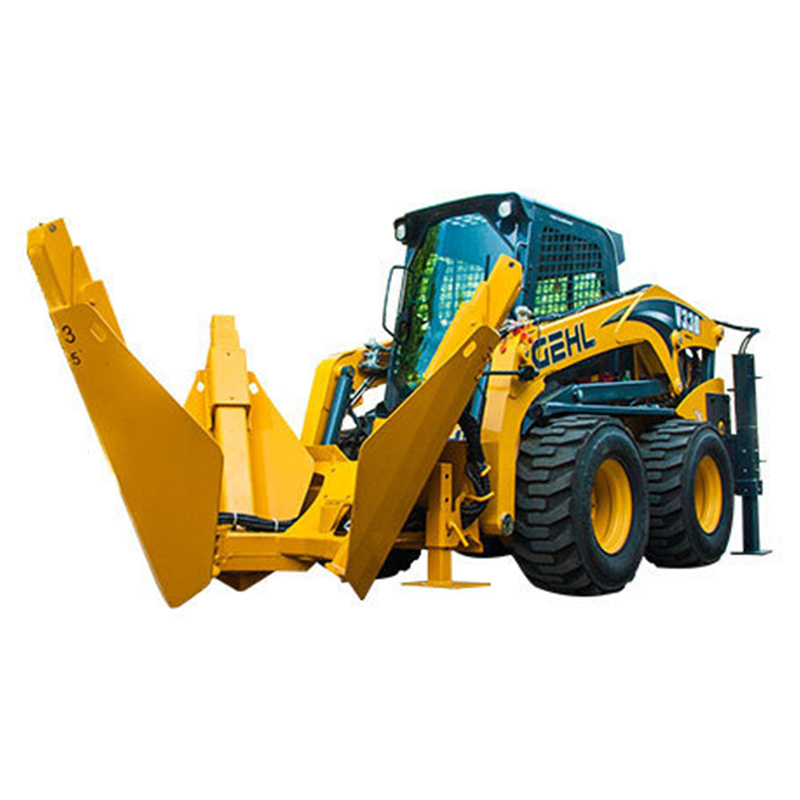

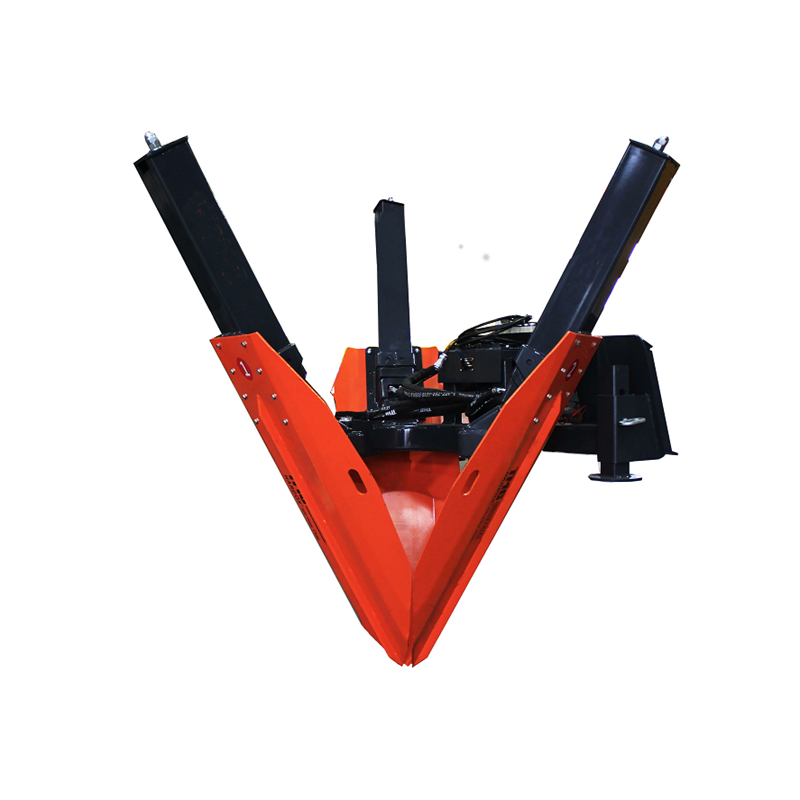

0502 Series Tree Spade
Hot Products
Description:
Dig and transplant trees with speed and efficiency
Work between closely planted trees
Works in a variety of soil conditions
Dig, transplant, and package trees without leaving the comfort of the operator’s seat
Ideal for nurseries, landscapers, golf courses, construction, farming, rental yards, Christmas tree farmers, parks and recreation departments, and municipalities
Adjustable legs allow for digging five different types of tree balls
Modified and cone blade configurations are available, providing a wide variety of blades for any jobsite.
The tree spade’s compact design accommodates tough jobs in confined areas without damaging nearby trees or landscaping.

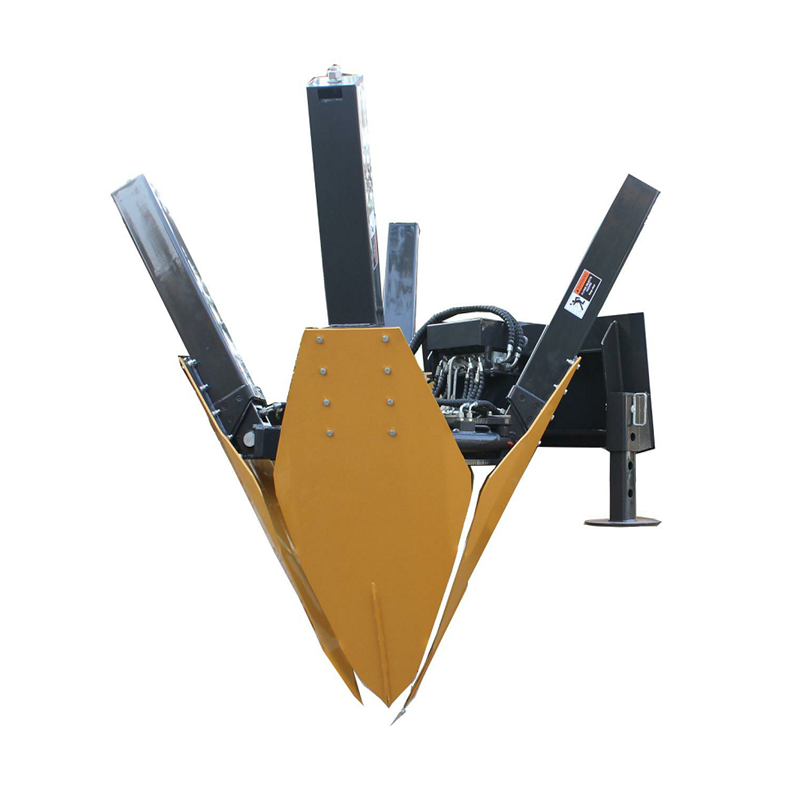

The tree spade’s open frame design provides excellent visibility to the base of the tree.

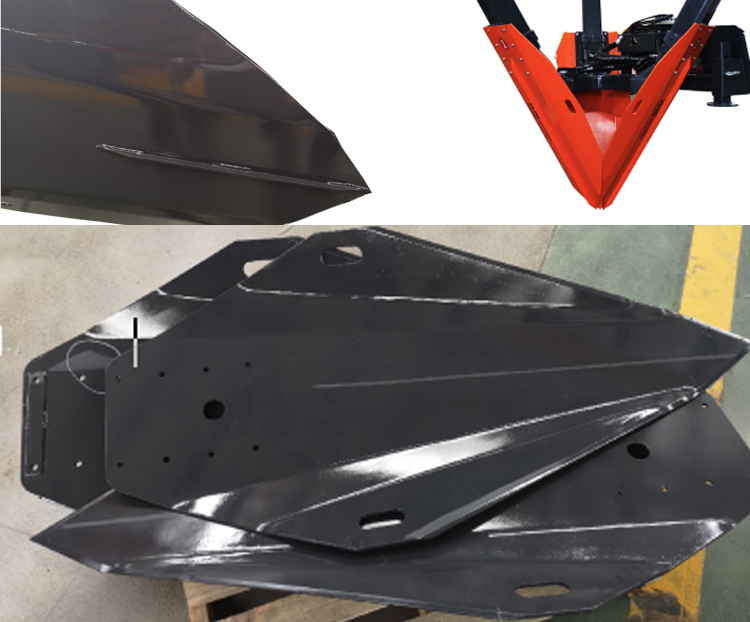

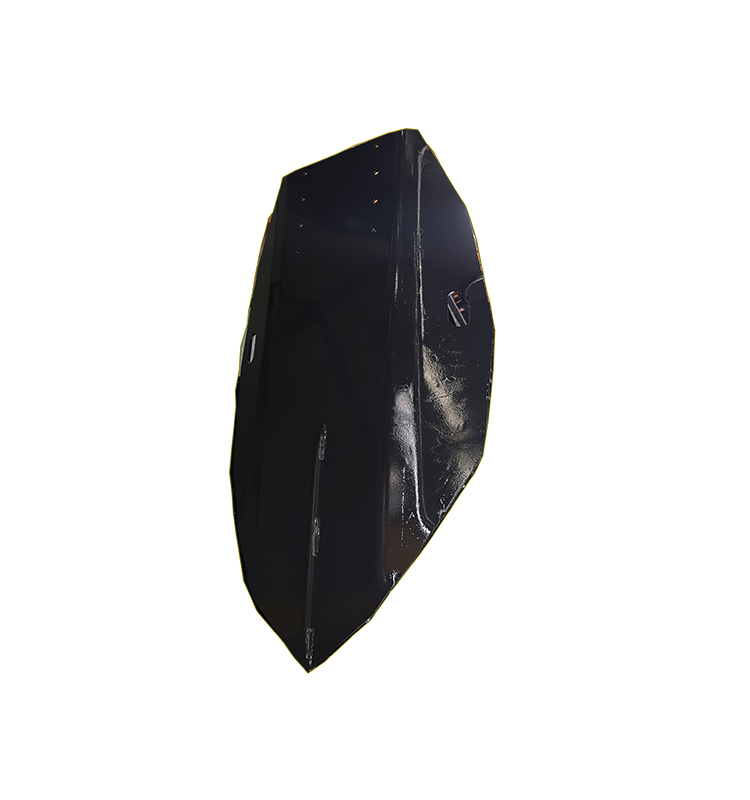

The tree spade’s overlapping blades ensure a clean cut and support the root ball.
Dig, transplant and package trees

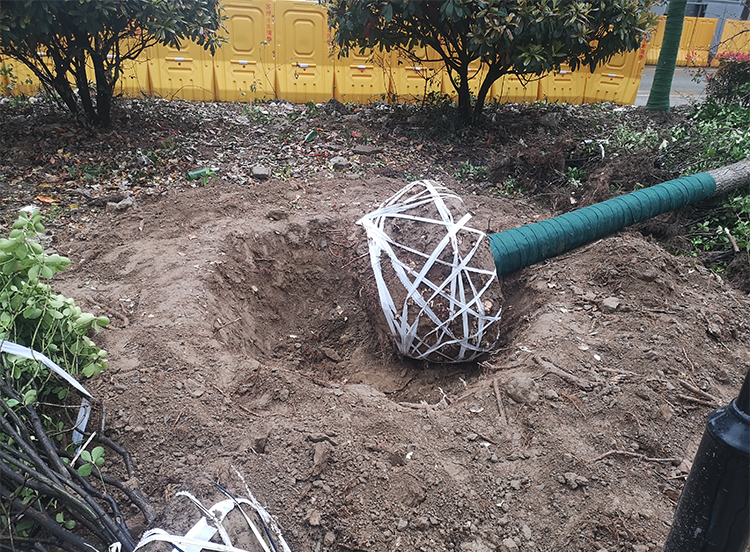

Gate(s) on the front of the tree spade open to allow access to the tree. Once around the tree, the gate(s) close and rear stabilizers on the machine are lowered to transfer weight onto the tree spade. Three or four individual blades (depending on model) are then lowered into the ground to cut the tree roots and create a rootball. The rear stabilizers are raised and the tree can be transplanted into a new location or placed into a wire basket.

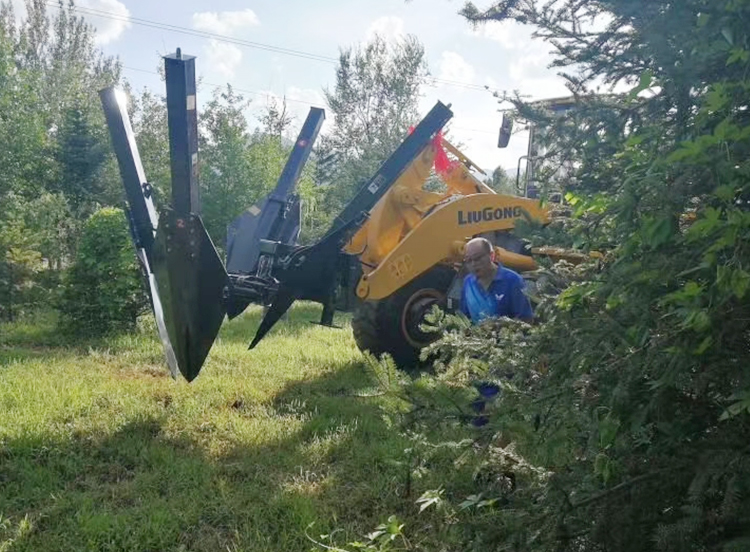

With its compact, short tower design, the tree spade easily squeezes between closely-planted trees. Built for maximum durability, the reinforced attachment frame handles the bumps and bruises of a tough work environment. The tree spade works in a variety of soil conditions, maximizing worksite capabilities.

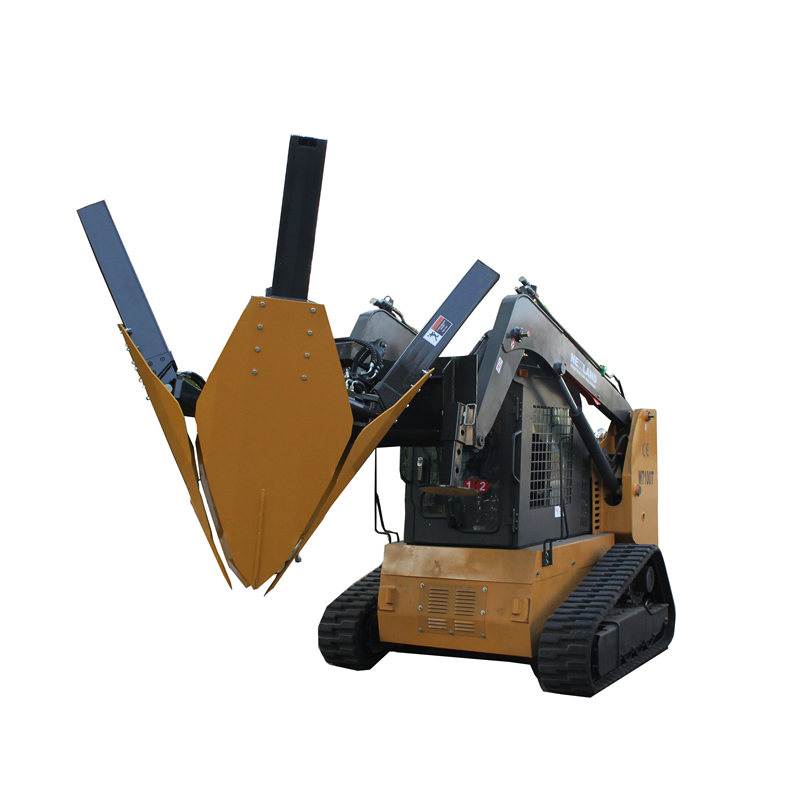

Control tree spade operation with the fingertip controls integrated into the loader control handles. Dig, transplant, and package trees without leaving the comfort of the operator’s seat.
The rugged, dependable tree spade attachment turns any loader into a transplanting unit, while also speeding up production and cutting labor costs. It is the ideal attachment for market applications such as nurseries, landscapers, golf courses, construction, farming, rental yards, Christmas tree farmers, DNRs, parks and recreation departments, and municipalities.
Product Details
Specifications:
Model | 050220 | 050236 |
Overall Length （mm） | 1423 | 1815 |
Overall Width （mm） | 1400 | 1780 |
Overall High （mm） | 1383 | 1828 |
Operating Pressure（MPa） | 12-21 | 12-21 |
Fit Tree Diameter (mm) | 0-50 | 0-100 |
Ball Diameters Available（mm） | 0-600 | 0-900 |
Weight(Kg) | 450 | 650 |
FOB Price |

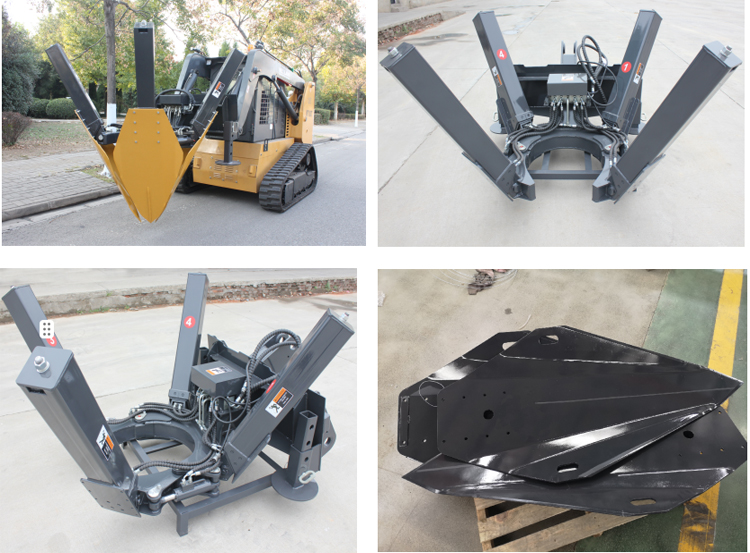

Photos:

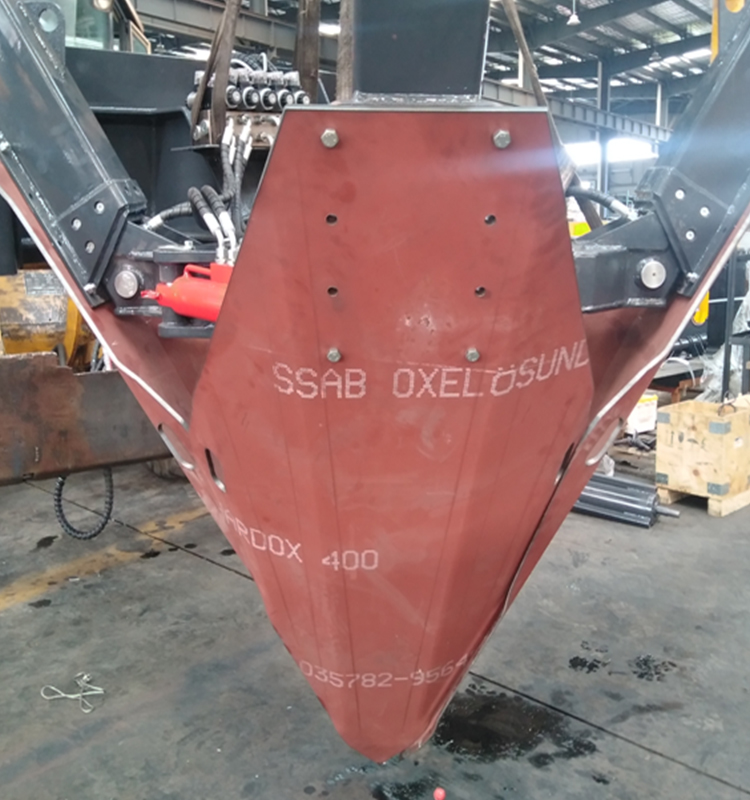

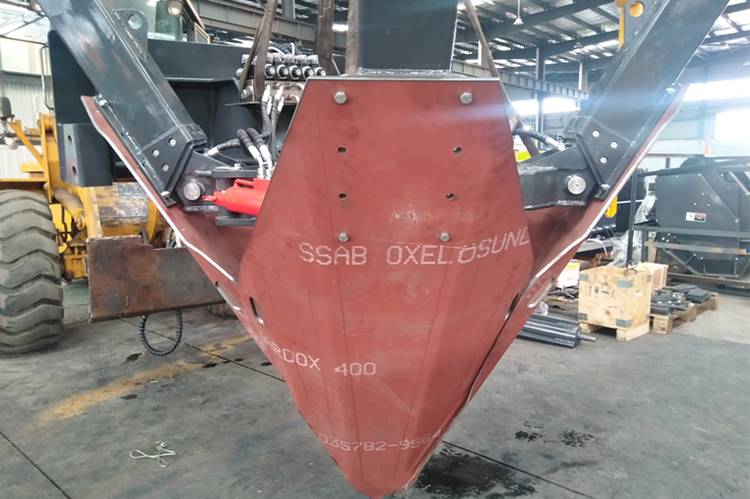

HAEDOX STEEL PLATE BORN TOUGH

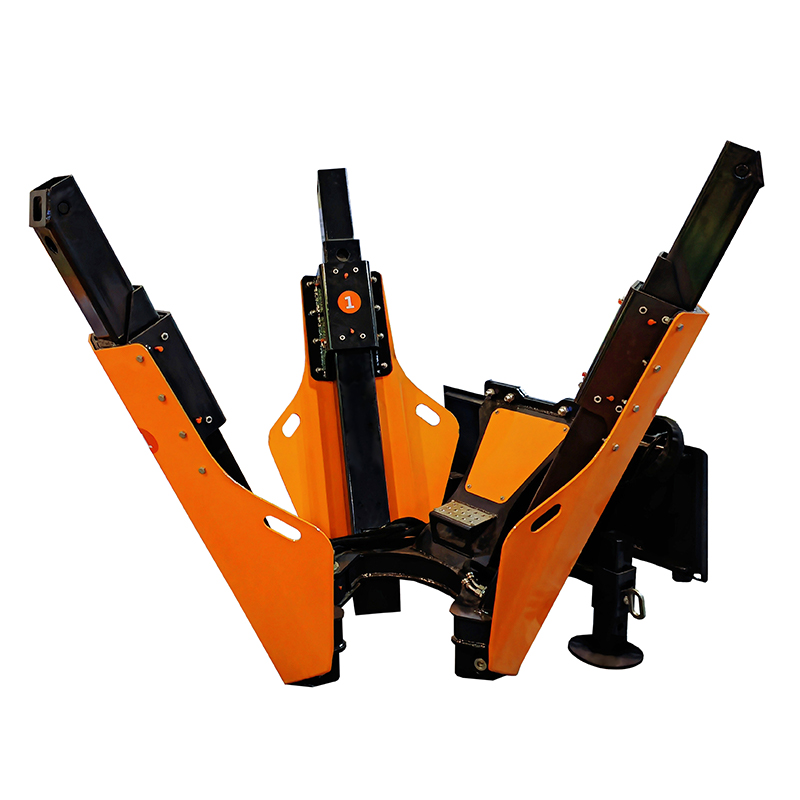

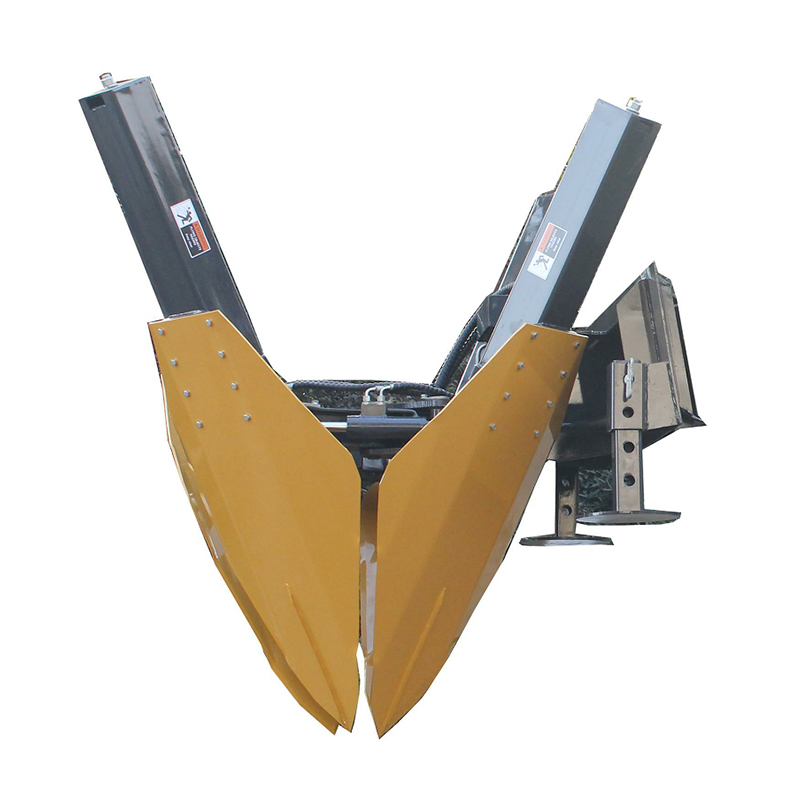

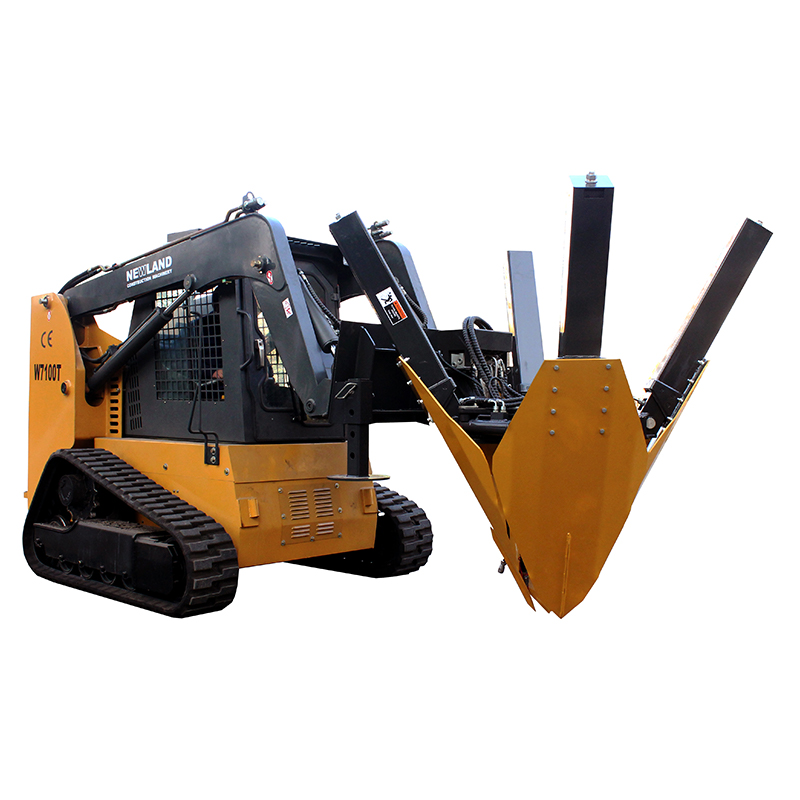

0503 Series Tree Spade
1. Description:
Easy operator can dig, transplant and load trees
More mobile and productive than tractor, truck or trailer-mounted units
Five sizes, three spade shapes
Open design for easy access to trees
Adjustable legs allow for digging five different types of tree balls
2. Specifications:
Model | 050336 | 0503A44 |
Overall Length （mm） | 1656 | 2112 |
Overall Width （mm） | 1596 | 2112 |
Weight(mm) | 850 | 998 |
Fit Tree Diameter (mm) | ≤φ100 | ≤φ120 |
Ball Diameters Available（mm） | ≤φ850 | ≤φ1110 |
Digging Depth (mm) | ≤720 | ≤1000 |
Operating Pressure（MPa） | 21 | 21 |
Operating Voltage（V） | DC12/DC24 | DC12/DC24 |
liter highest total height blade（mm） | 1867 | 2575 |
lowest total height blade（mm） | 1867 | 2555 |
Optional accessories | （1）Optional support；（2）Optional mechanical or hydraulic legs (mounted on the back of the loader) | |
Suit machine | Skid loader/wheel loader | Skid loader/wheel loader |
3. Photos:

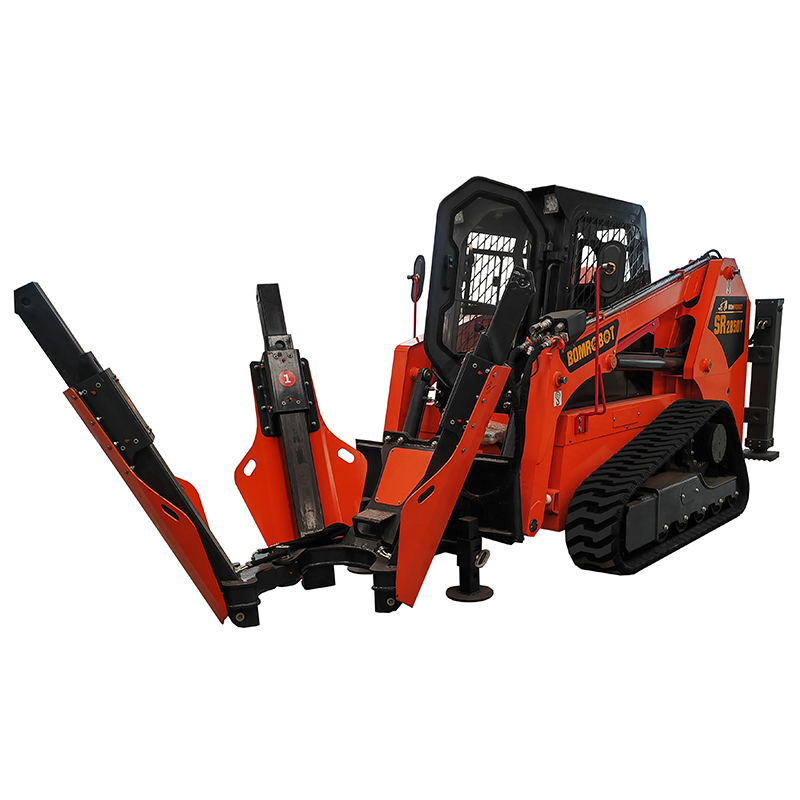

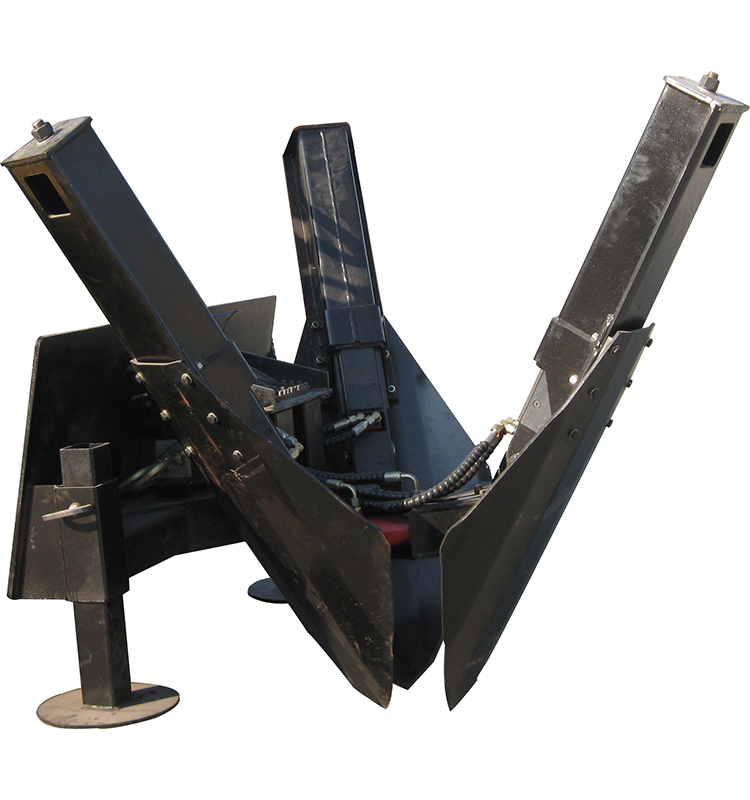

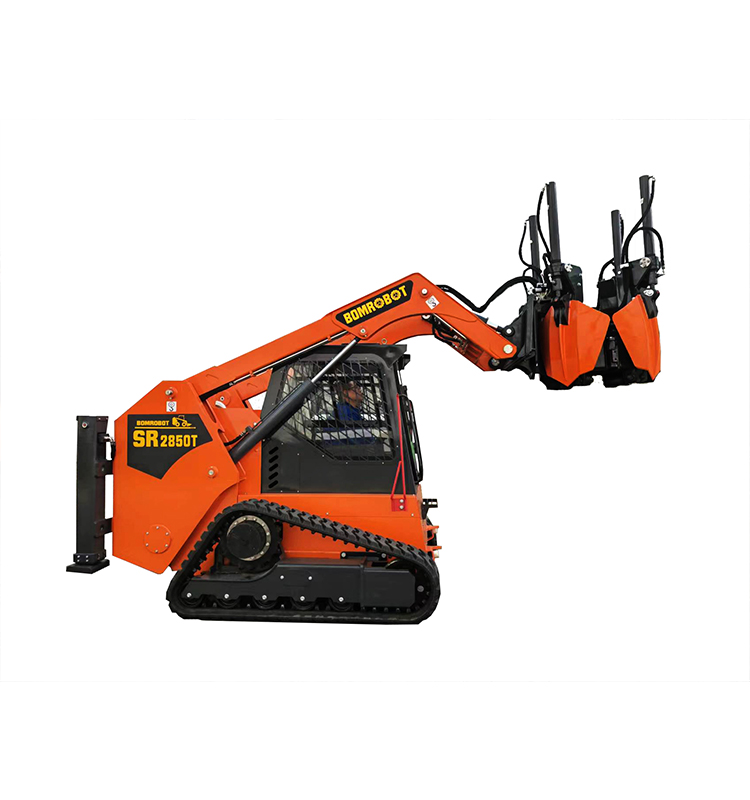

0503C Series Tree Spade
Specifications:
0503C | |||
Model | 0503C36 | 0503C36A | |
Overall Length (mm) | 1040 | 1040 | |
Width for gate Open (mm) | 1575 | 1575 | |
Width for gate closed (mm) | 950 | 950 | |
Weight(Kg) | 790 | 790 | |
Height when work(mm) | 1845 | 1675 | |
Upper root ball diameter（mm） | ≤880 | ≤880 | |
Bottom root ball diameter（mm） | / | 330-300 | |
Dig depth（mm） | ≤700 | ≤565 | |
Fit Tree Diameter（mm） | ≤100 | ≤100 | |
Root Ball Volume（m³） | 0.21 | 0.19 | |
Work Pressure(Mpa) | 21 | 21 | |
Operating Voltage（V） | DC12/DC24 | DC12/DC24 | |
Quantity of Blades | 4 | 4 | |
Optional | （1）Optional support；（2）Optional mechanical or hydraulic legs (mounted on the back of the loader) | ||
Suitable for machine | ≥75KW Skid Steer Loader/Wheel Loader | ||
≥7.5T（Excavator） | |||

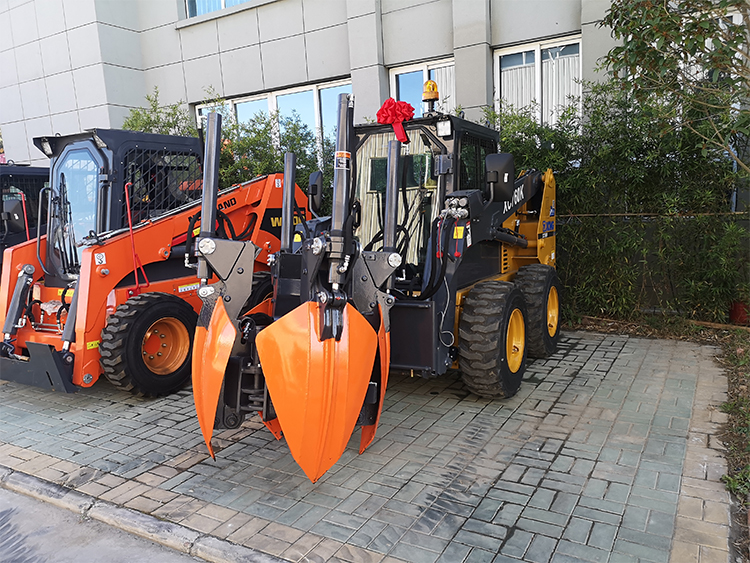

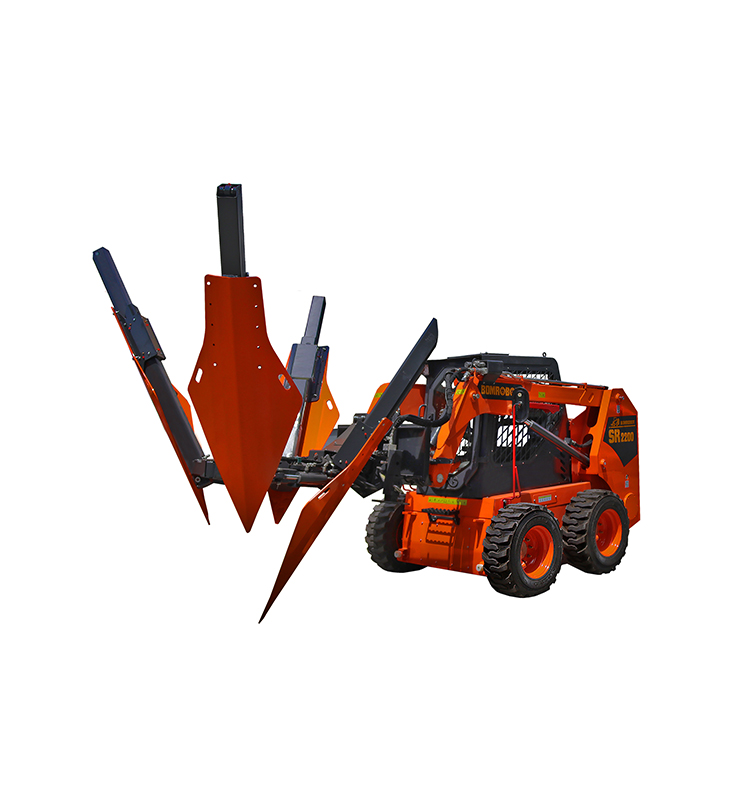

0502D33 Series Tree Spade
0502D33 Tree Spade | ||||
Parameter | Unit | |||
Overall Length | 1600 | mm | ||
Overall Width | 1900 | mm | ||
Height | 1600 | mm | ||
Weight | 685 | Kg | ||
Height when work | 1905 | mm | ||
Upper root ball diameter | 800 | 750 | 630 | mm |
Dig depth（mm） | 600 | 500 | 400 | mm |
Bottom root ball diameter（mm） | ≤255 | mm | ||
Fit Tree Diameter | ≤80 | mm | ||
Root Ball Volume | 0.14 | m³ | ||
Work Pressure | 21 | Mpa | ||
Operating Voltage（V） | DC12/DC24 | m³ | ||
Quantity of Blades | 4 | 个 | ||
Optional | （1）Optional support；（2）Optional mechanical or hydraulic legs (mounted on the back of the loader) | |||
Suitable for machine | ≥75KW Skid Steer Loader/Wheel Loader | |||
≥7.5T（Excavator）） | ||||

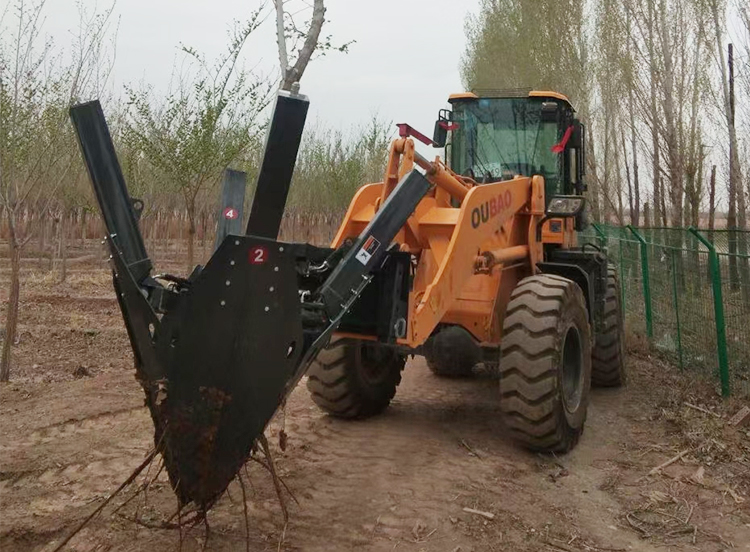

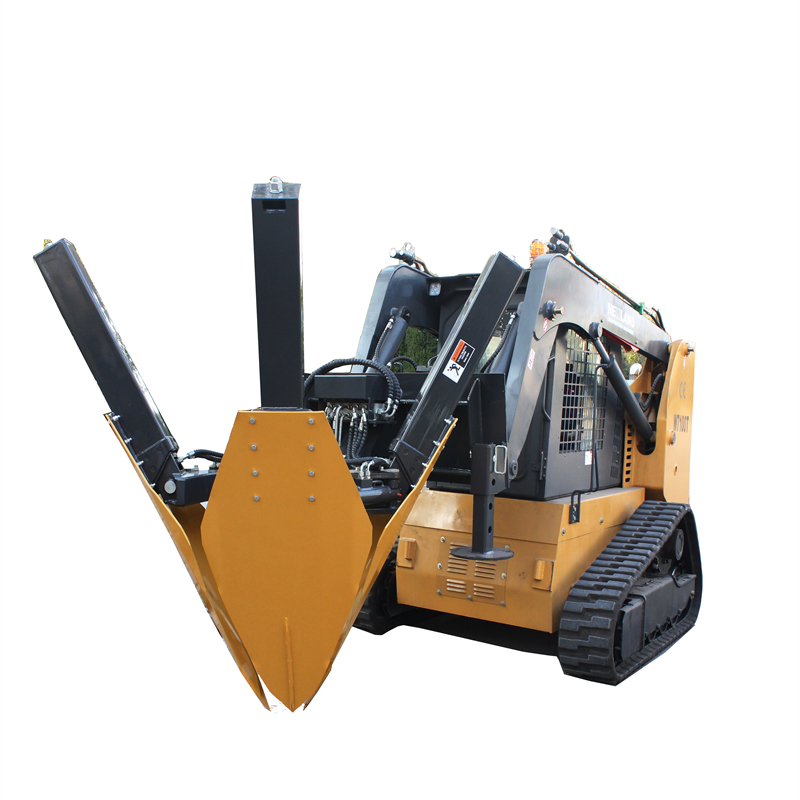

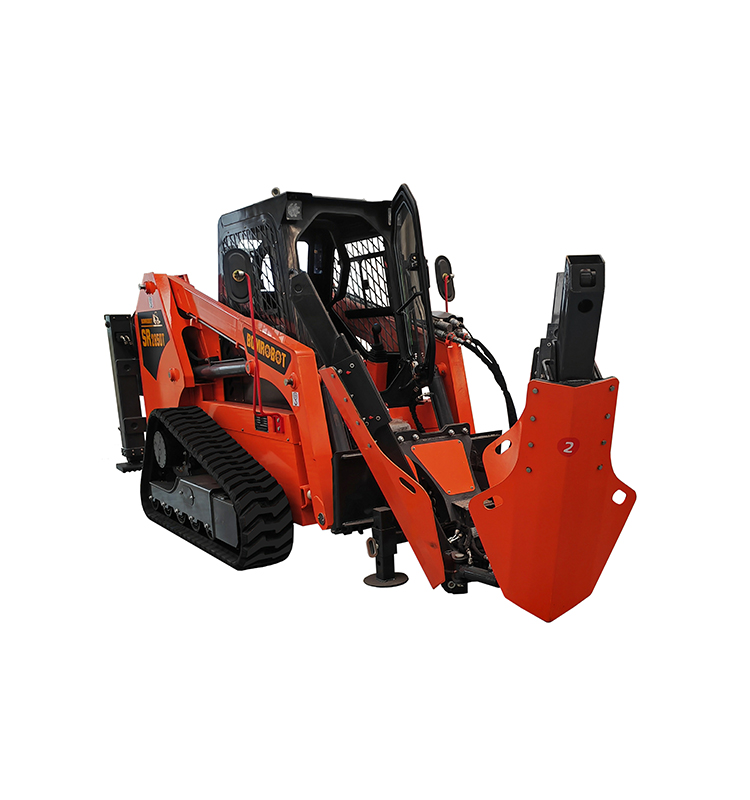

0503D44A Series Tree Spade
0503D44A Tree Spade | ||
MODEL | 0503D44A | |
Overall Length (mm) | 2685 | |
Overall Width (mm) | 1896 | |
Weight(Kg) | 1000 | |
Fit Tree Diameter（mm） | ≤φ110 | |
Root Ball Diameter（mm） | φ1100/φ810/φ510 | |
Dig depth（mm） | 755/655/555 | |
Work Pressure (Mpa) | 21 | |
Operating Voltage（V） | DC12/DC24 | |
Hydraulic support | Skid steer loader have to mount | |
Suitable for machine | Rated load 1600KG skid steer loader Rated load 2000kg Wheel loader 12000kg Weight excavator | |

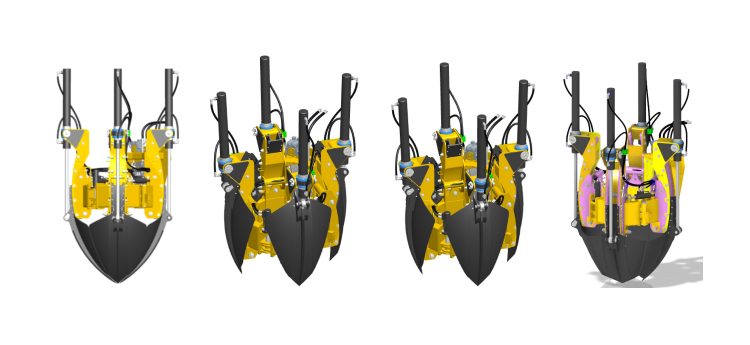

HCN ATTACHMENTS offers a variety of angles and styles to suit your digging needs. Whether it is 22-degree open-bottom Truncated, 25-degree Semi-Truncated, or 30 degree closed-bottom Full Cone, all HCN spades are built on the same simple principles: durability and simplicity.
HCN tree spades can be mounted on a variety of machines, from walk-behind mini skid-steers, full-size skid-steers and track loaders, up to large wheel loaders and excavators. Each section will explain the key features and differences that allow you to find the right spade for
your unique purpose.
Available in 20, 36, and 44 inch models, the Truncated Tree Spade is ideal for creating wide-bottomed root balls for shallow-rooted trees.
The wide root ball gives the tree excellent stability once dug out, although at the cost of
addition weight.
Available in 36 up to 44 inch models, the Coned Tree Spade is ideal for digging tap-rooted trees or in sandy soil. The spade is almost completely closed at the bottom, minimizing soil loss. Due to the pointed shape, however, the root balls produced are less stable and balanced.
Available in all straight-blade sizes, the Semi-Truncated Tree Spade creates a root ball that is narrow than a Truncated spade but still stands well on its own. Semi-Truncated spades are the most common type of tree spade due to their versatility; they can down-size a great deal when digging smaller trees…
HCN ATTACHMENTS’s Palm Tree Spade can be made in a variety different of sizes.
Built with a “hand dug” root-ball shape in mind, our Palm Tree Spade is typically built on a 22º angle. This angle helps to keep the overall width as narrow as possible. The uniqueness of the design allows one to extract palm tree, shape the root-ball, shrink-wrap or basket the tree, and have it ready for shipping. Built with both the quality components and durability you have come to know and trust with every HCN product.
Palm Tree Spades can be customized with different blade lengths and configurations, to produce exactly the desired root ball. Optional trunk-locks firmly grasp the trunk of the palm-tree, keeping it stationary and upright within the spade.

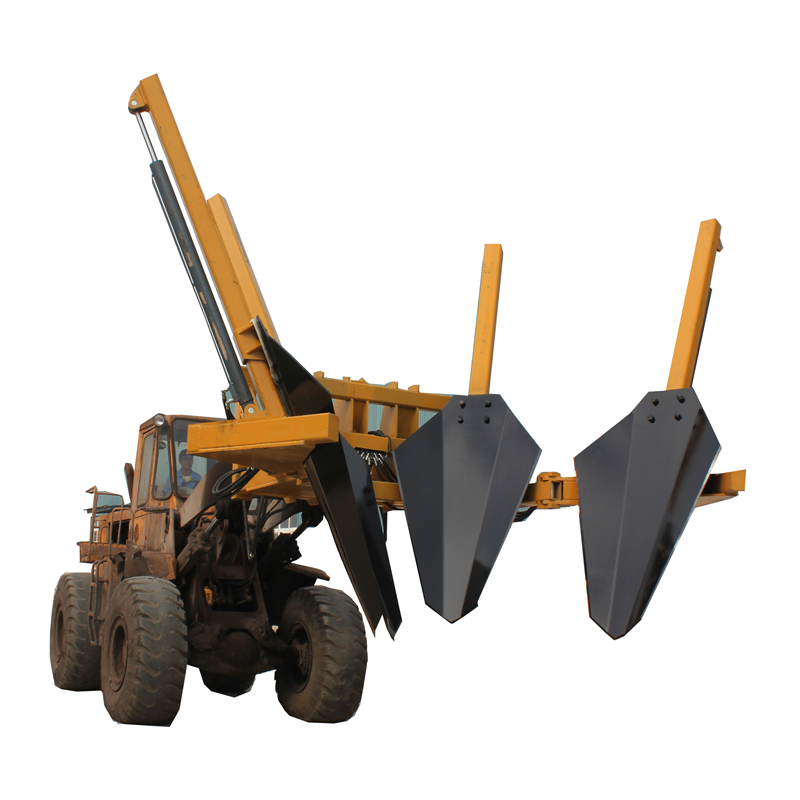

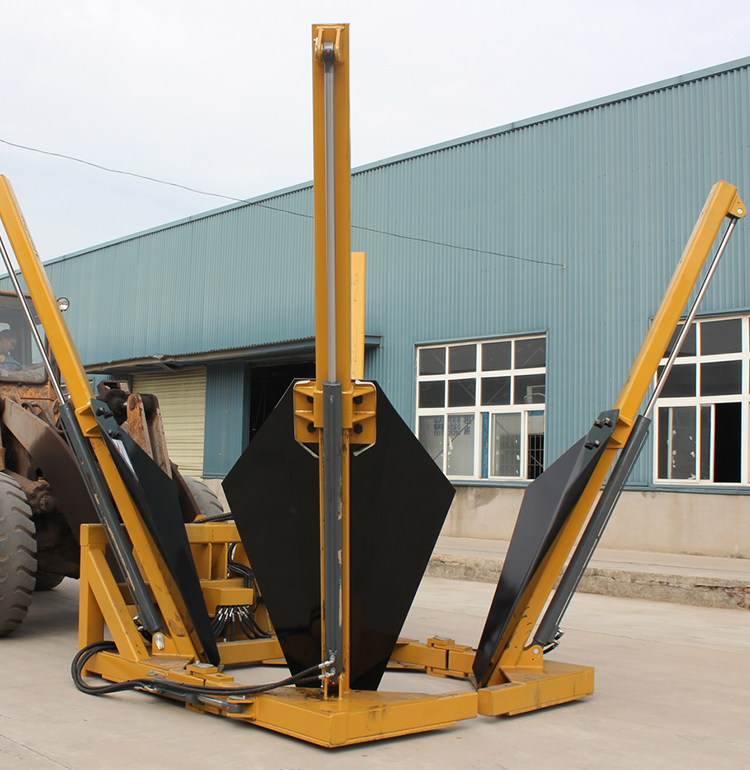

BM01 TREE SPADE
PHOTOS
DETAILS
MODEL | BM0175 | BM01A44 |
LxWxH（mm） | 3300x3070x3640 | 2112x2112x998 |
Over weight（Kg） | 3545 | 998 |
Excavation depth（mm） | 1340 | ≤1000 |
Knife cutting angle（°） | 65 | 65 |
Working pressure（MPa） | 12-21 | 12-21 |
Tree ball diameter（mm） | 1700 | 1110 |
Suitable for tree diameter (mm) | 200 | 120 |
The total height when the blade is raised to the highest（mm） | 3660 | 2575 |
The total height of the blade when it reaches the lowest（mm） | 3600 | 2555 |
Adapter type | 5t/8t wheel loader | 5T/3T wheel loader |
含税 含包装 | 49660CNY | 104000CNY |

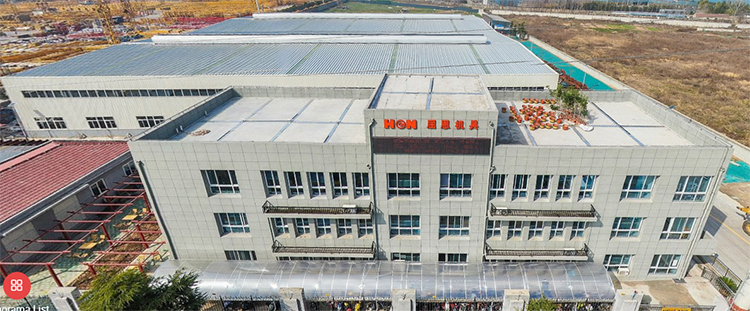

More than 20 years of deep cultivation in the machinery industry, more than 20 engineers and 100 staffs, 20000 square meters modern standard workshop,and more than 400 kinds high quality products, Choice of quality, HCN Machinery
HCN Machinery is a wholly-owned subsidiary of Sino Equipment Research Institute, a national high-tech enterprise. In 1991, introduced Gehl skid steer loader and attachments production technology, established specialized company in 2008. With more than 20 years of ingenuity in construction industry, it has become a professional construction machine and attachments manufacturer which integrating R & D, production and sales. There are more than 400 kinds and more than 1000 specifications of products, mainly including Skid Steer Loader and Attachment, Wheel Loaders and Attachments, Mini Skid Steer Loaders and Attachments , Compact Loader and Attachments which are widely used in construction and municipal engineering, road construction, agriculture and forestry, landscape, environmental sanitation, snow and ice removal, and so on various fields .
HCN Machinery, with high quality and high reliability products, has won the favor of customers and has become a well-known brand in the industry. Among them, 90% of its products are exported to the United States, Canada, Russia, Australia a lots of countries. With sincere service and excellent quality, it has been expanding a big market in the world.
Always persist in the independent R & D strategy, relying on the strong technical strength of Sino Equipment Research Institute, the only enterprise in China that has obtained the approval vendor certification of Bobcat, JCB, Caterpillar, Manitou Group
XCMG, Liugong, Lingong and Zoomlion, and has become their qualified supplier, continuously improves the product technology and quality, and is committed to building products with core competitiveness.
