Product Description

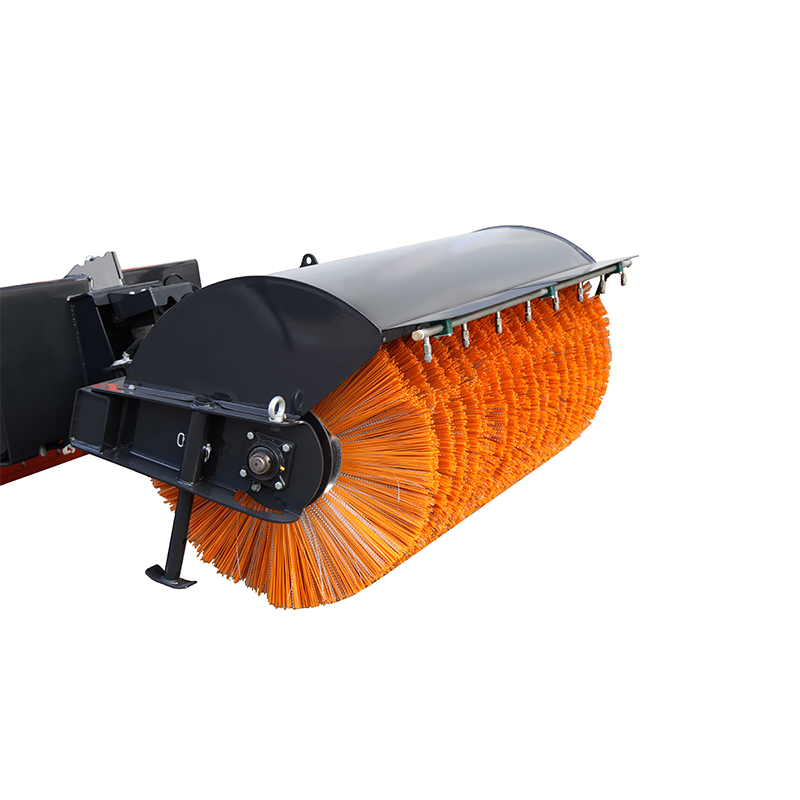

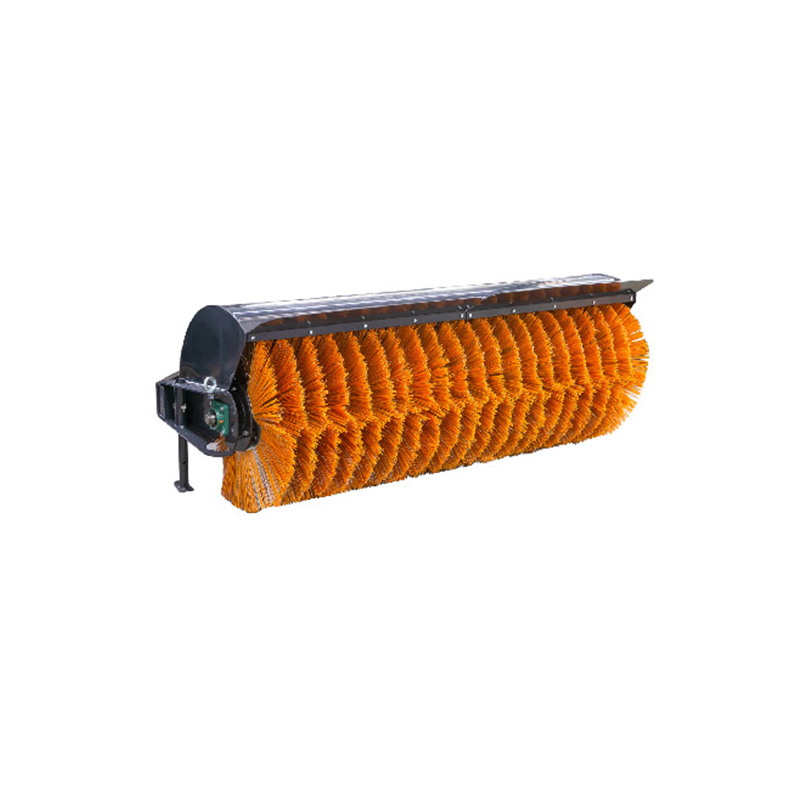

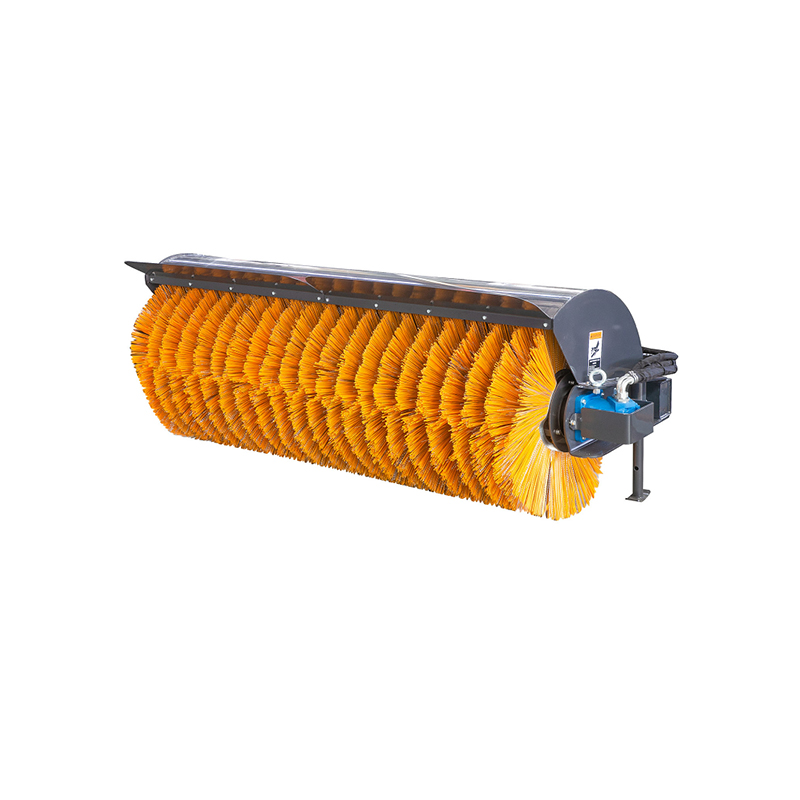

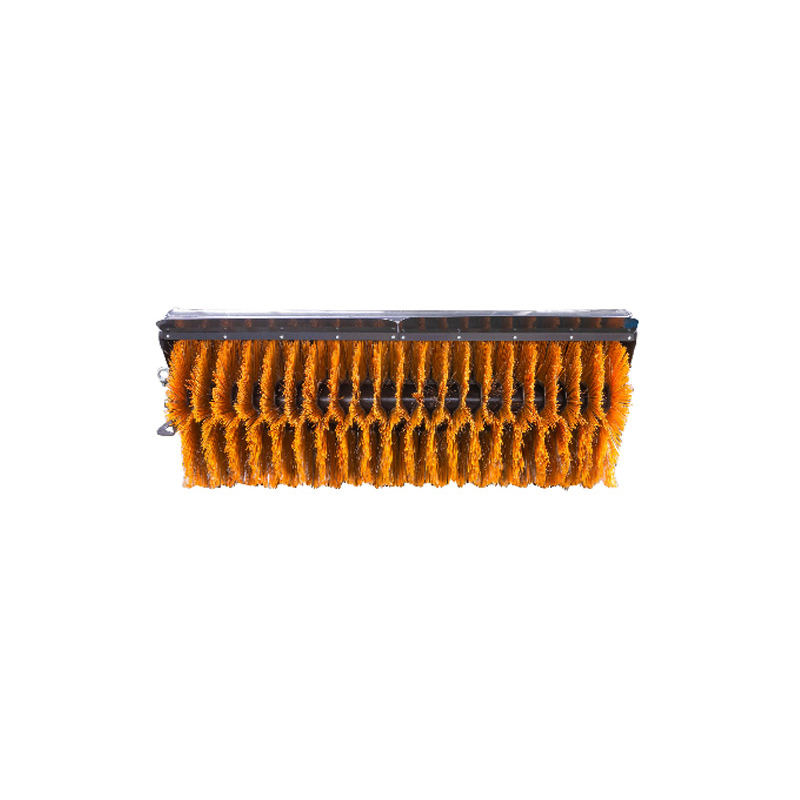

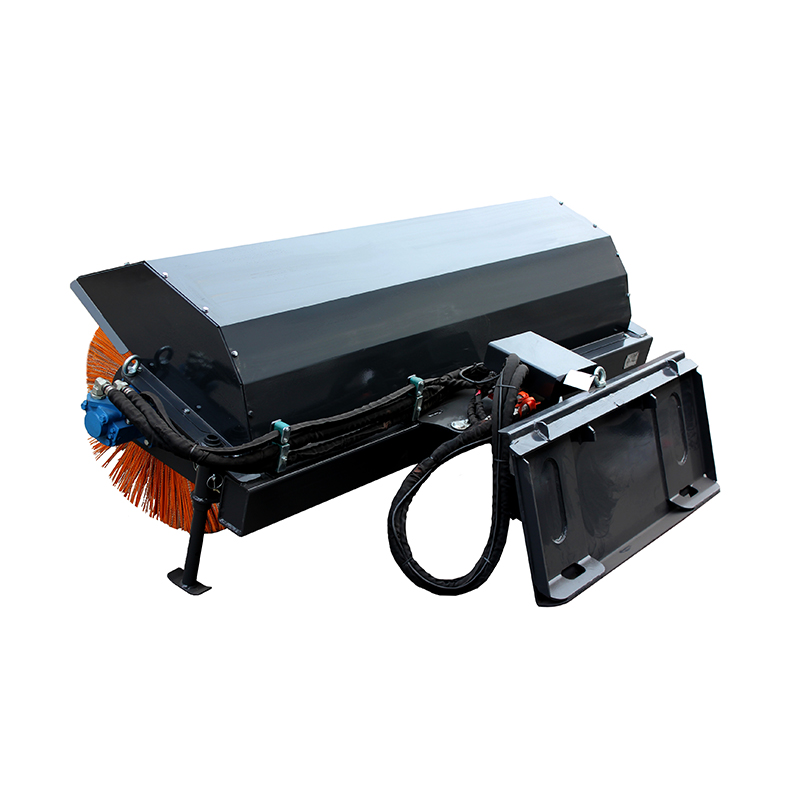

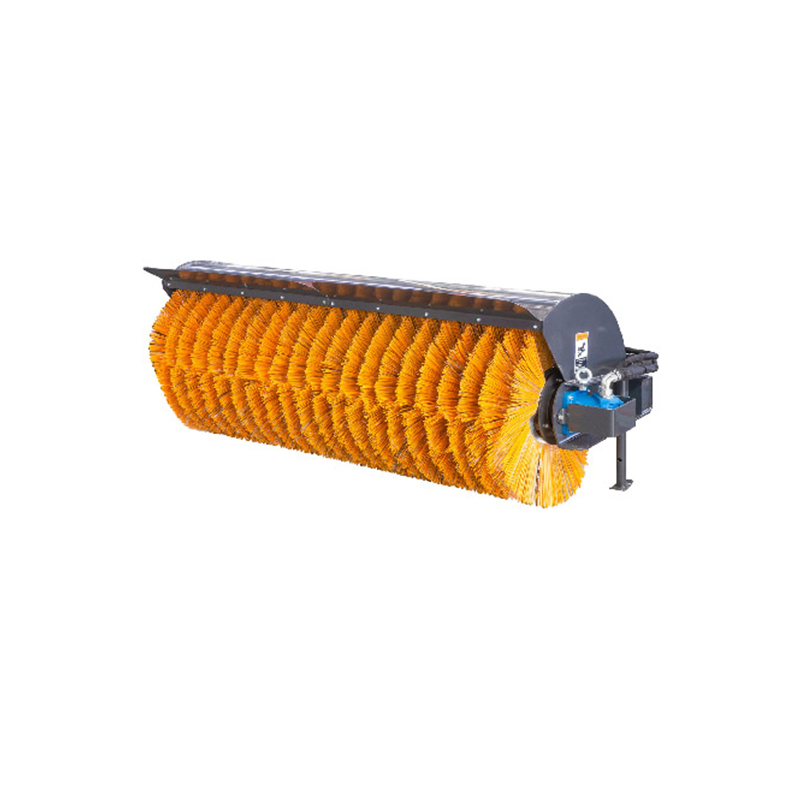

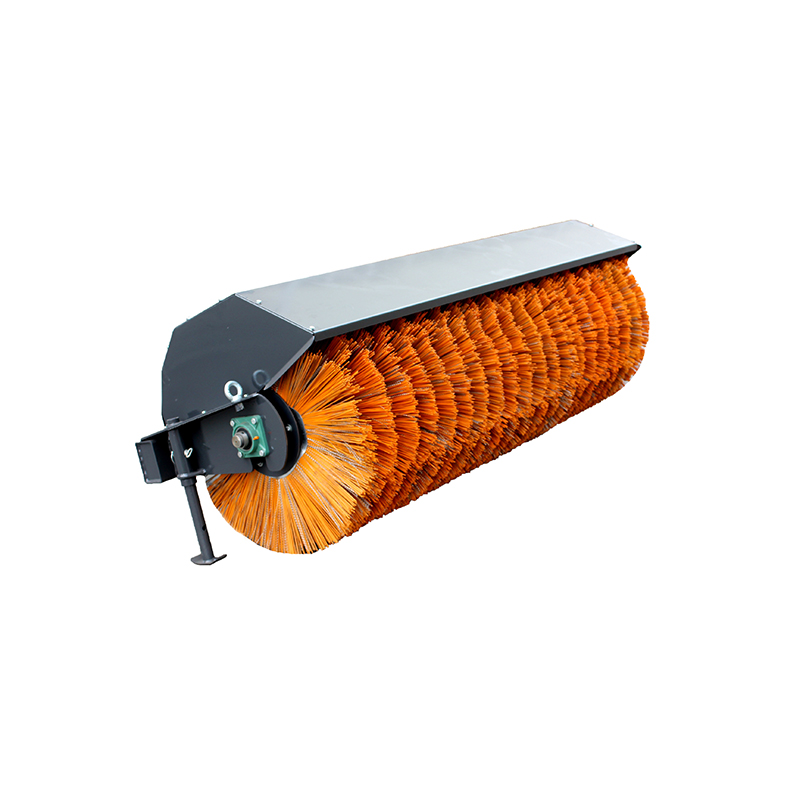

The HCN’ 72’’ skid steer rotary angle broom is hydraulically driven for cleaning debris, sands and snow on roads, parking lots and other flat areas. The broom can angle left and right, comes with poly/wire mix bristles, an adjustable stand to prevent bristles from damage when unused, and a durable direct-drive hydraulic Eaton motor. Spare wafers are available for purchase separately.
Efficiently sweep and clean with the hydraulically driven angle broom attachment
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
Reverse bristle rotation available on the 72-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles
Reversible angle broom is available for all compact track loaders and skid-steer loaders;
This product is backed with a one-year manufacturer warranty,
Product Details
Features:
· Durable direct-drive hydraulic Eaton motor works more efficiently and reduces downtime
· Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing
· Poly/wire mix bristles
· Adjustable protection metal stand
· Hydraulic hoses included
· The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor lifetime.
· Bi-directional rotation bristles
· A motor protection guard frame installed
· One cylinder hydraulic ,two cylinder hydraulic and manual angle rotating design optional
Specifications:
· Working width: 60” ,72”,84”
· Number of wafers: 41
· Brush diameter: 31.5"
· Core diameter: 10.04”
· Sweeping width at 30° angle: 63”
· Maximum angle (left and right): +/- 30°
· Hydraulic flow: Min. 10 GPM to Max 25 GPM
· Compatible to use high-flow
Packaging:
· Packed in a metal shipping crate
· Shipping dimension: 89’’ x 57’’ x 31’’
· Shipping weight: 1230 lb
0201 Angle Broom
Model | 020160 I | 020172 I | 020184 I |
Overall Length (mm) | 1625 | 1625 | 1625 |
Overall Width (mm) | 1804 | 2163 | 2435 |
Overall Height (mm) | 870 | 870 | 870 |
Overall Weight (mm) | 500 | 545 | 575 |
Working Width （kg） | 1500 | 1800 | 2100 |
Turning Angle (°) | ±30° | ±30° | ±30° |
Working Width at 30°(mm) | 1250 | 1550 | 1850 |
Brush Diameter (Φmm) | Φ800 | Φ800 | Φ800 |
Working Pressure (Mpa) | 21 | 21 | 21 |
Working Flow （L/Min） | 70-85 | 80-100 | 80-100 |
Working Voltage （V） | DC12/24 | DC12/24 | DC12/24 |
Package Volume (m3) | 4.096 | 4.830 | 5.385 |
Brush Quantity (piece) | 30 | 37 | 41 |
Electrical and hydraulic control | |||
