0510 Earth Auger

Drilling & Digging

0510 Earth Auger — factory-direct from HCN
OEM / private label available for Forestry and Garden Attachments
Fitment confirmed from machine model data
Quote reply usually within 1 business day

Contact Export Team

Share machine brand/model, hydraulic flow, quantity and destination country for an accurate quotation.

CategoryForestry and Garden Attachments
Supportnancy@hcn-tech.com

01 — Product

Product Overview

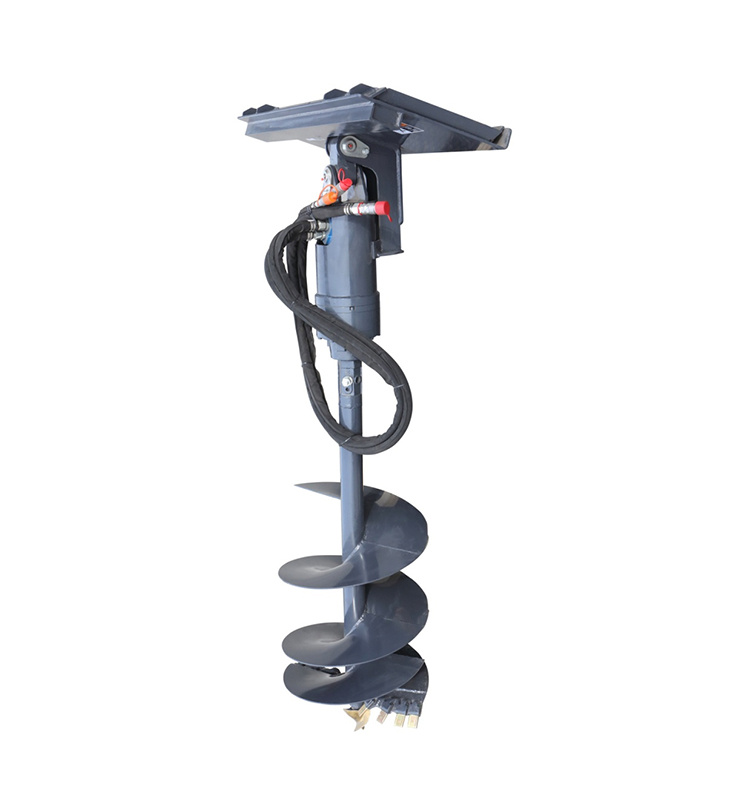

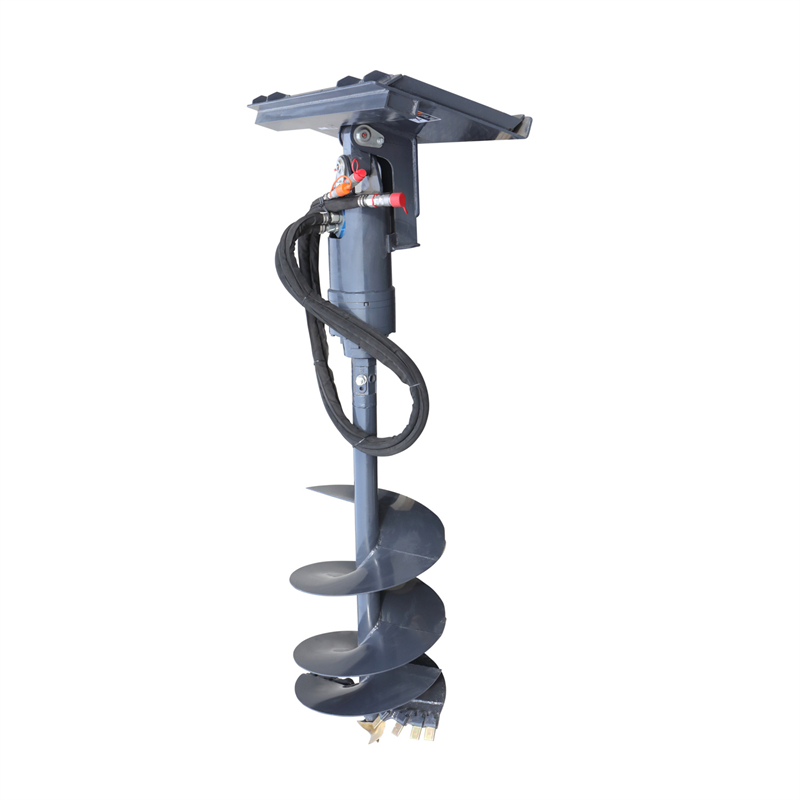

· HCN Attachments have been engineering and manufacturing augers for over 13 years making our range of augers the most reliable, versatile, and efficient for tackling every size of job.

· Suitable for excavators, skid steer loaders, telehandlers, backhoes and truck cranes, the HCN Attachment augers can drill widths of 100mm on smaller machines and up to 2.4m on larger machines and can drill to depths of 12m (with extensions and using the correct earth drill). Our inhouse manufacturing capabilities means we can design and fabricate to your specification, to suit your machine and job. So, whether its post holes, holes for fencing, signposts, post frame buildings, foundation footings, light and utility poles, our augers will make light work of it and ensure that every job you tackle a resounding success.

Category Forestry and Garden Attachments

All Products | Request A Quote | Engineering Guides

02 — Engineering

Key Features

0510 Earth AugerFactory-engineered Forestry and Garden Attachments attachment from HCN — confirm fitment with your machine data before ordering.
Backhoe end-attachment interfaceMounts to the backhoe dipper arm and coupler.
Heavy-duty steel constructionBuilt for demanding job sites and long service life.
Replaceable wear componentsPractical maintenance for dealers and fleet operators.
Optimized hydraulic performanceDesigned for stable operation within rated flow ranges.

03 — Fitment

Compatible Machines

Confirm machine brand, model, operating weight, and hydraulic flow before ordering. Our team can verify fitment for your market.

Machine Type	Common Brands	Fitment Notes
Backhoe Loader	JCB, CAT, Case	Backhoe end attachment interface to be confirmed

04 — Jobsite

Applications

05 — Data

Specifications

Features:

· Precision designed high-grade direct drive planetary gear system

· Locking collar to keep the auger from swinging

· Reversible drive

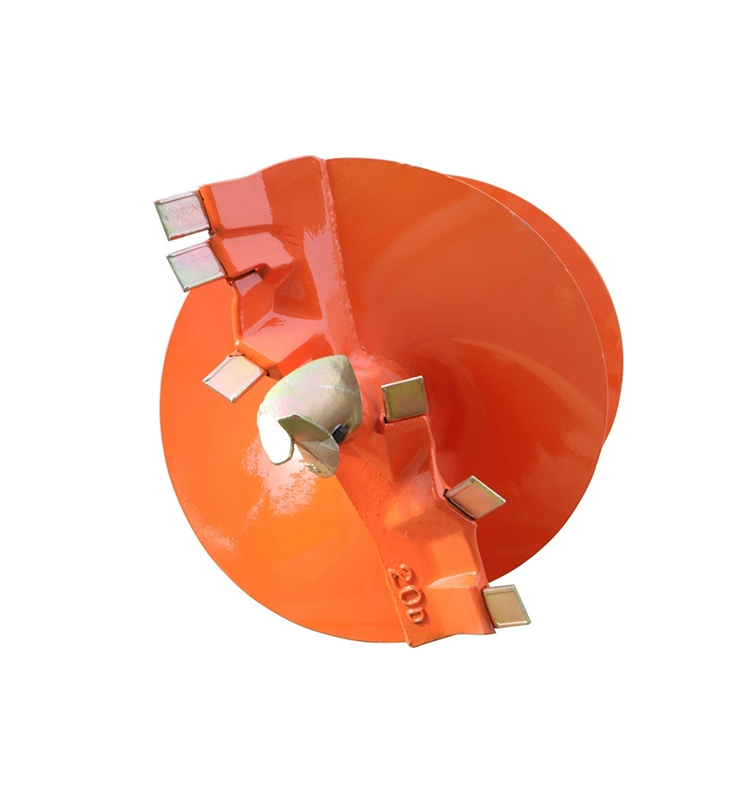

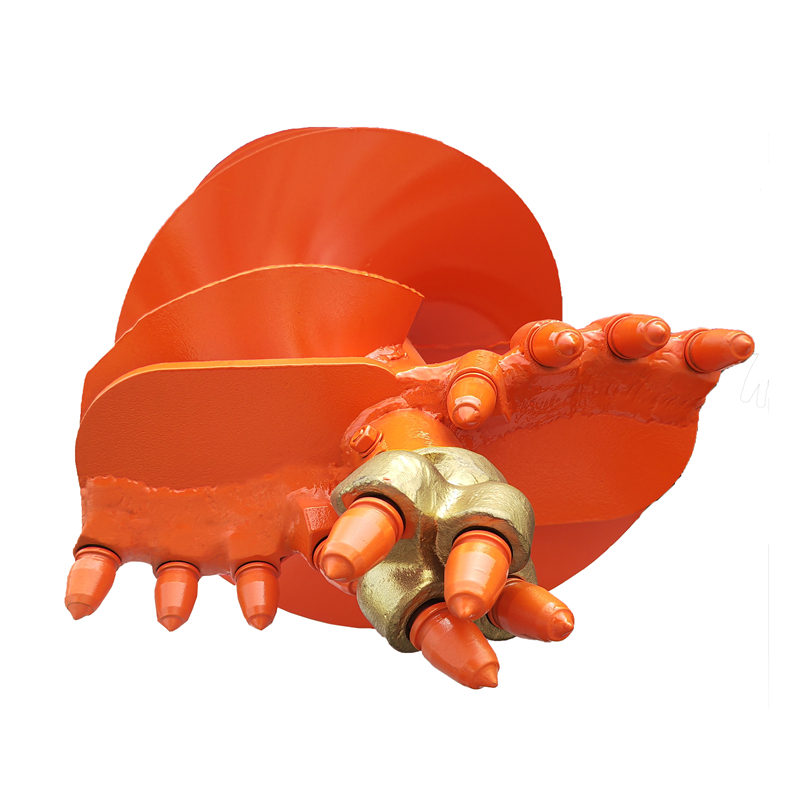

· Continuous spiral cutting bit designed to avoid clogging

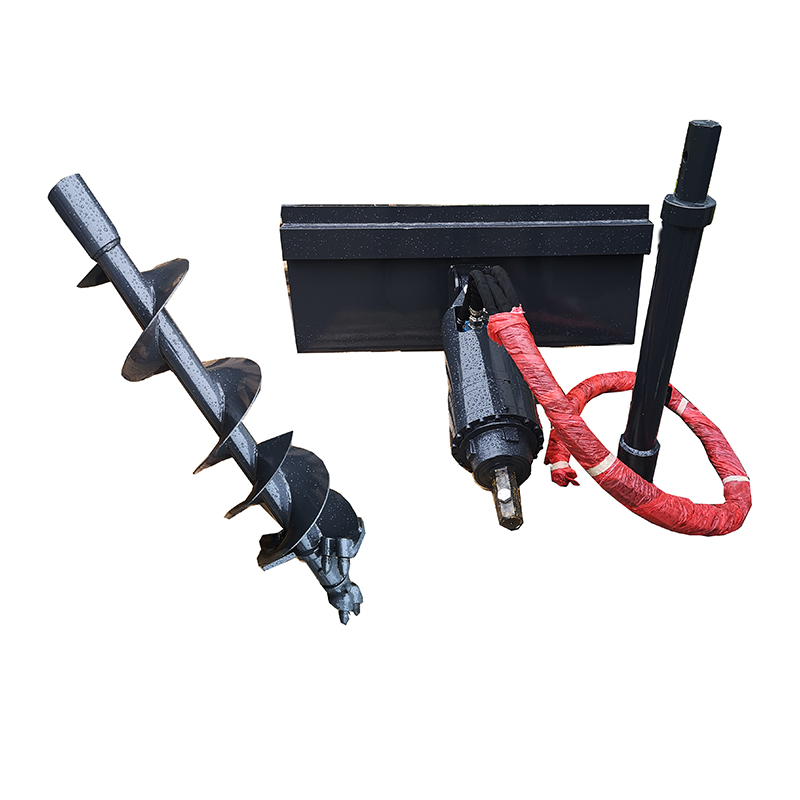

· Hoses and flat-faced couplers included

· Augers are available with all major standard hubs on the market including: 2” 2.5”, 3” and 4” Hex, 50mm, 2” and 65mm round plus 57mm, 75mm, 100mm, 110mm and 130mm square to name a but a few!

Specifications:

· Flow rating: 5-17 GPM

· Max pressure: 2250 PSI

· Drilling Depth: 48”

· Overall length: 80”

· Mount type: Universal

· Mounting plate height: 20”

· Mounting plate width: 48”

Packaging:

· Dimension: 51” x 38” x 32” (L x W x H)

· Shipping weight: 620 lb

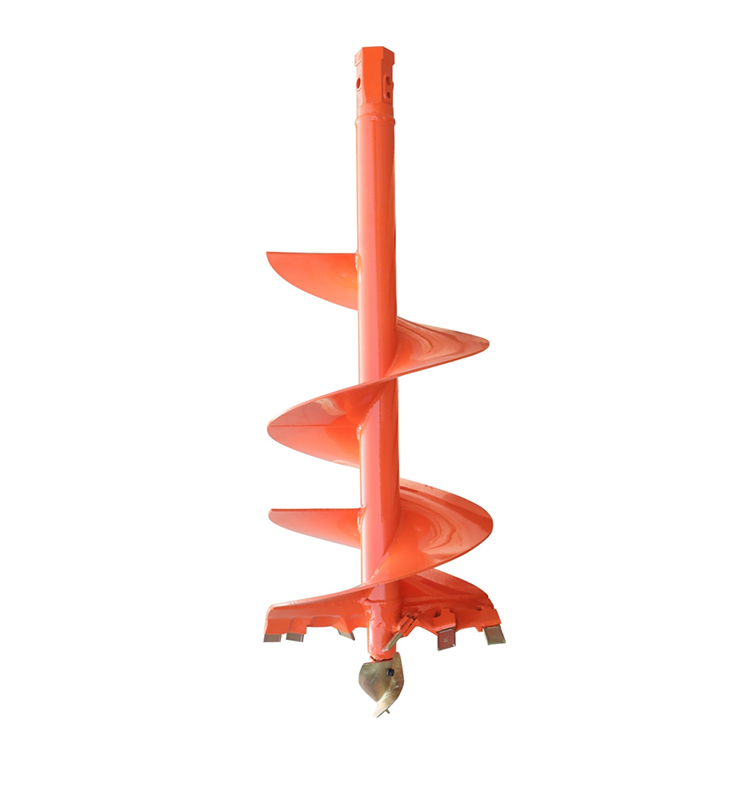

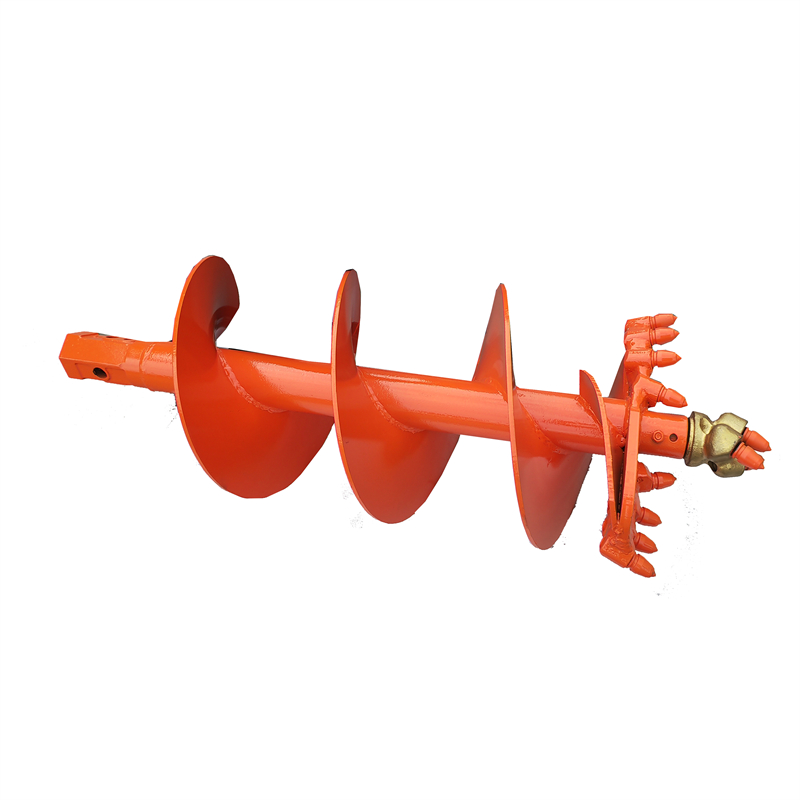

Auger Stem（SD）
Model	SD02	SD04	SD06	SD08	SD09	SD10	SD12	SD14
Auger Dia. (mm)	50	100	150	200	223	250	300	350
Model	SD16	SD20	SD24	SD28	SD32	SD36	SD40
Auger Dia. (mm)	400	500	600	700	800	900	1000

Extend Bar
Model	L-300	L-500	L-600	L-1000	L-1200
Length(mm)	300	500	600	1000	1200
Weight（Kg）	14	16	18	23	25

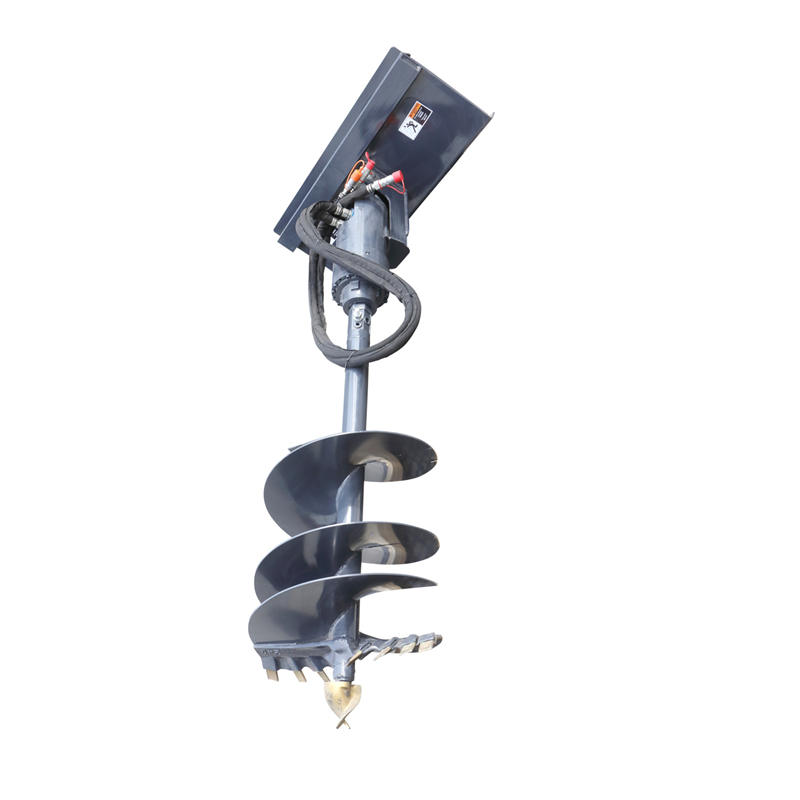

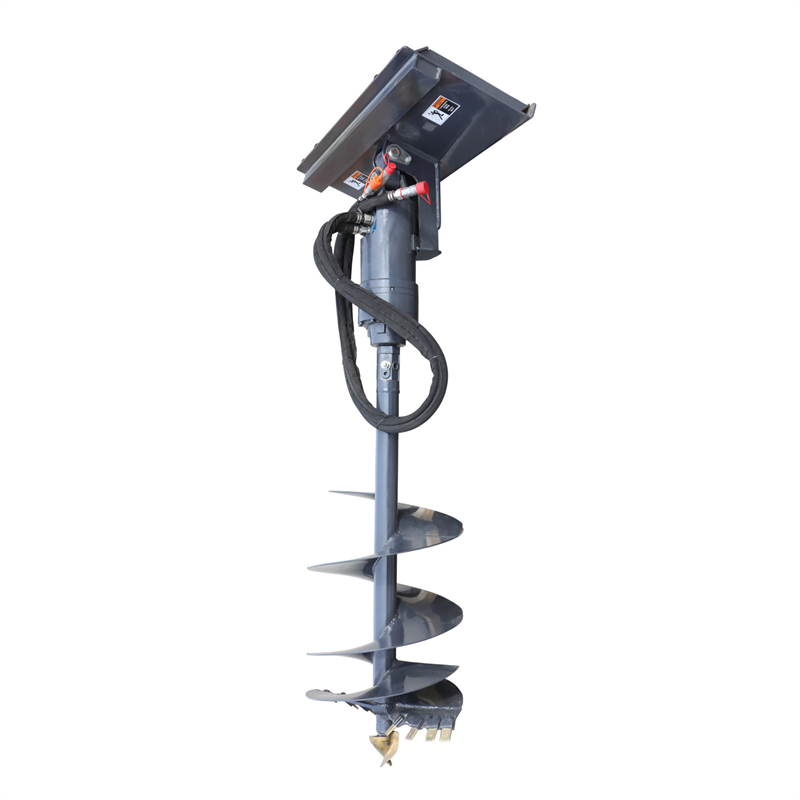

Drive Unit
Mode	051025	051045	051075	0510100	0510200
Overall Length (mm)	242	307	317	321	400
Overall Width (mm)	184	240	237	245	312
Over Height (mm)	1847	1926	2043	2149	2556
Weight （kg）	148	187	249	297	498
Work Flow（L/min）	23-61	23-76	45-151	45-151	45-151
Pressure （MPa）	17.0	15.5	18.5	17.0	18.5
Auger Diameter （mm）	50-300	100-400	100-500	100-700	100-1000
Rotational Speed	42-152	20-73	31-107	20-72	11-37
Max. Digging Depth （m）	1.6	2.1	2.4	3.0	5.3
Output Shaft Size （inch）	2	2	2	2.5	2.6
Length （m）	1.22	1.22	1.22	1.50	1.50

06 — Programs

OEM & Custom Options

HCN supports dealer, distributor, and private-label programs with configurable mounting, hydraulics, finish, and packaging.

Dimensions & capacity Custom width, working depth, capacity, and duty configuration for your market.
Mounting interface Quick-attach plates, coupler geometry, and pin dimensions matched to machine data.
Hydraulic setup Standard-flow / high-flow options and circuit layout confirmed before production.
Private label Color, logo, nameplate, and export packaging for OEM and distributor brands.
After-sales kits Wear parts and spare kits for dealer stock and field service support.
Export packing Steel frame or crate packing prepared for container loading and destination handling.

Share annual volume, destination country, and branding requirements for a manufacturing proposal.

20+Years manufacturing attachments
400+Attachment models in portfolio
21,000㎡Modern production facility
CE / ISOQuality systems for export markets

07 — Buying

FAQ

What machines is 0510 Earth Auger compatible with?

Send machine brand, exact model, operating weight, and hydraulic flow/pressure for 0510 Earth Auger. We confirm the mounting interface and recommend the correct configuration before quotation.

What information do you need for an accurate quote on 0510 Earth Auger?

Machine brand and model, quantity, destination country/port, and any OEM mounting or branding requirements. Photos or coupler drawings help when available.

What hydraulic flow does 0510 Earth Auger require?

Requirements vary by duty cycle. Check the specification table on this page, or send your machine hydraulic data for verification before ordering.

Can 0510 Earth Auger mounting and branding be customized?

Yes. HCN supports custom mounting plates/couplers, hydraulic options, color, logo, and export packaging for dealer and OEM programs.

How fast can I get a quotation for 0510 Earth Auger?

Click Request A Quote, email nancy@hcn-tech.com, or call +86 185 5285 3111. Complete inquiries are usually answered within 1 business day.
