Skid Steer Snow Blowers are a popular snow removal attachment that are great for removing thick, heavy, wet dirty and loose snow from parking lots, roads, and sidewalks. Snow Blowers vary from other snow removal attachments like Snow Plows and Snow Pushers, which are better for all kinds of snow.
Product Details

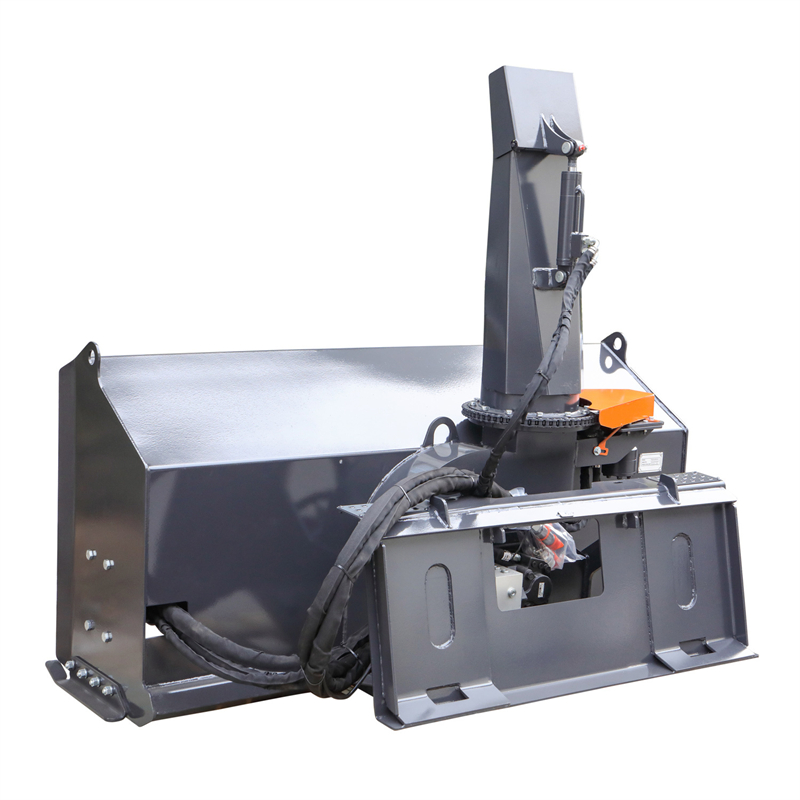

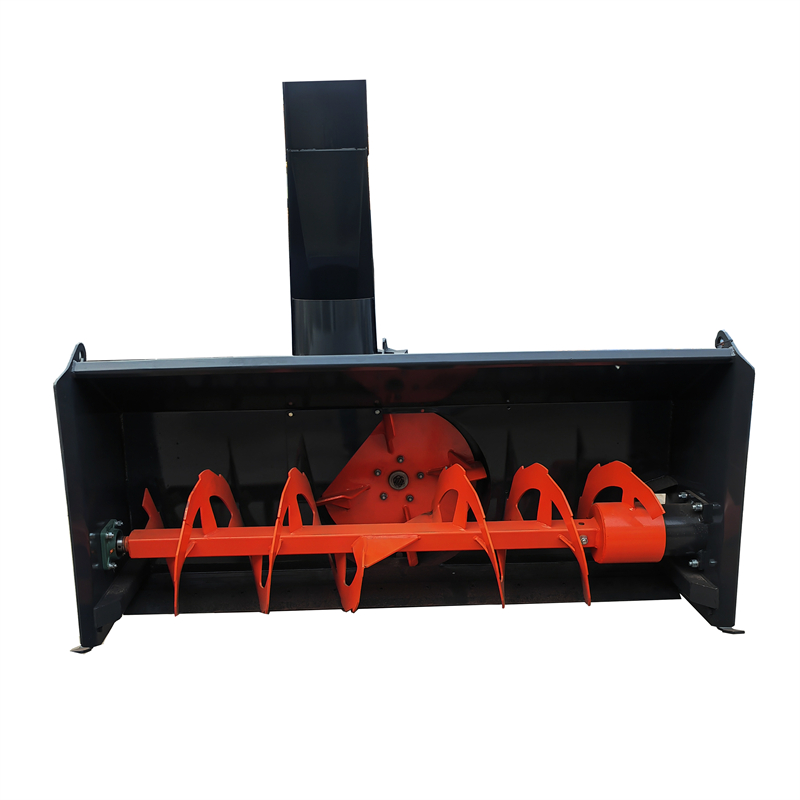

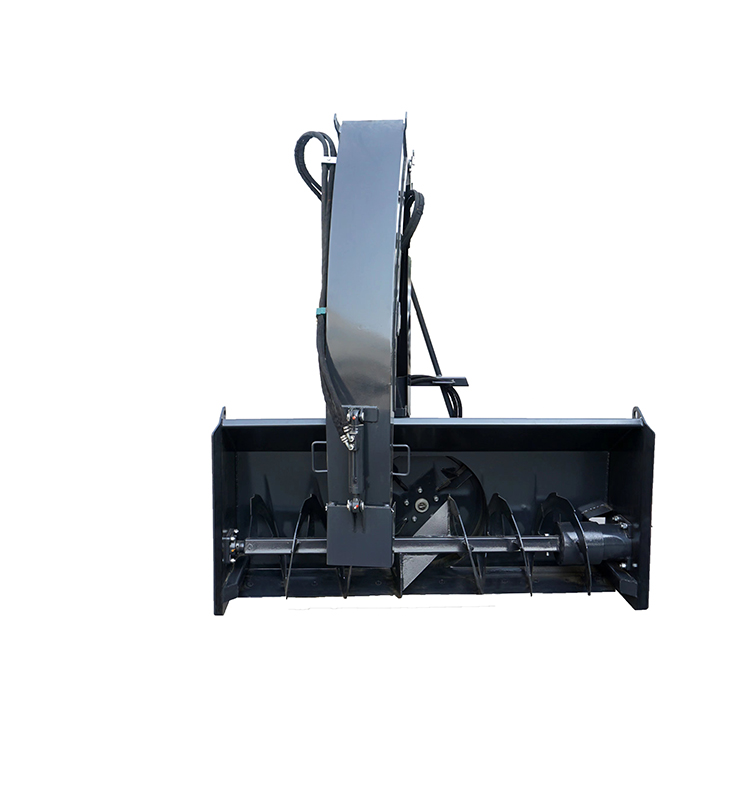

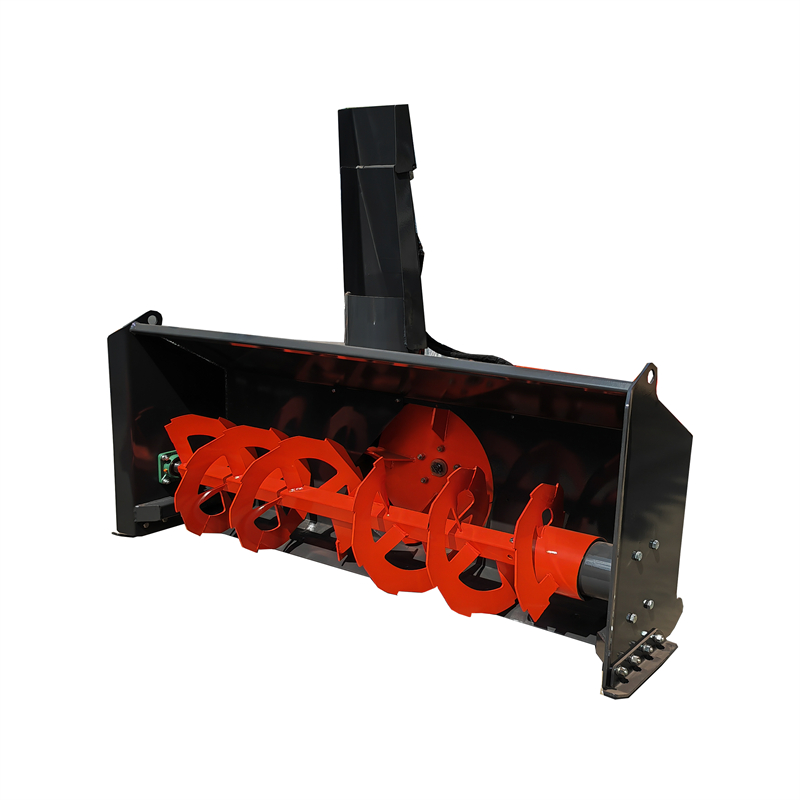

The HCN Standard Snow Blower Attachment is available in three different sizes and edge kits and universal attachment plates.
You may also choose an additional Poly Shoe Kit. You must select one of the electric control options with this product. Please be sure to match the control option with your make and model of skid steer loader. Hydraulic chute has 270 degrees of rotation and a deflector angle that allows extremely accurate snow placement

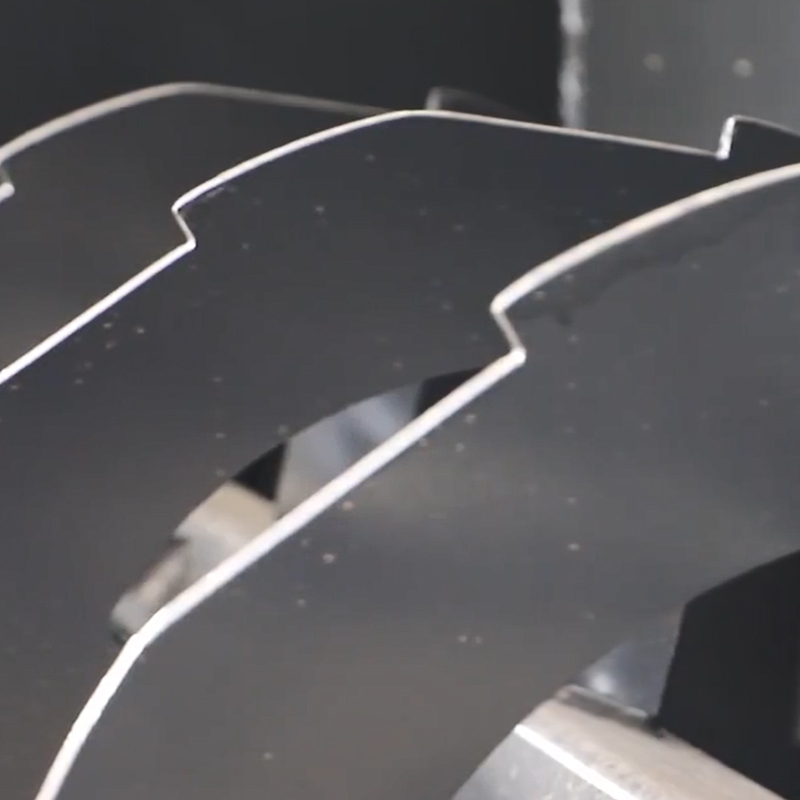

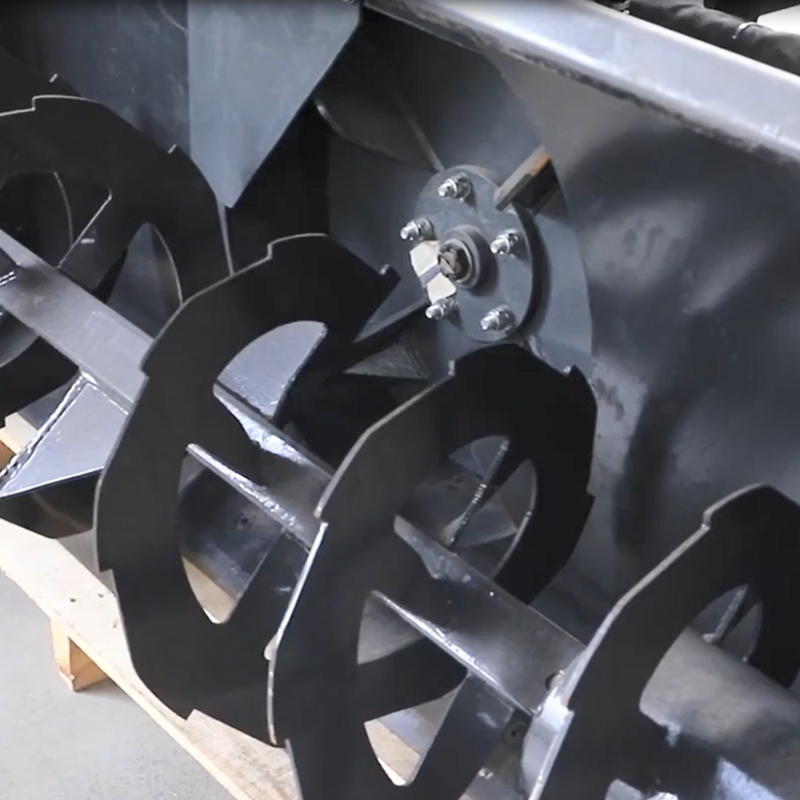

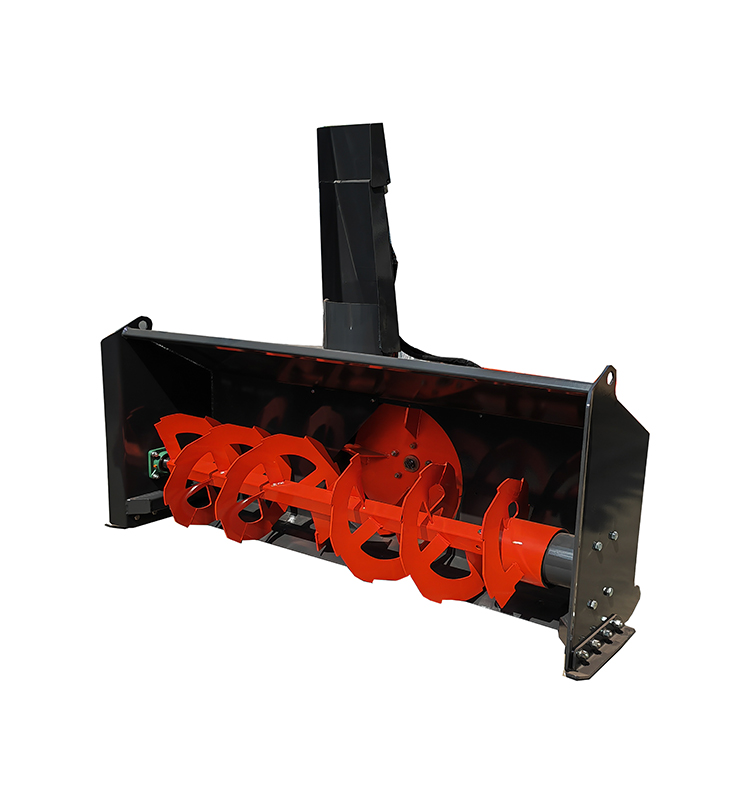

· Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
· 4 blade fan, 22″ diameter, 6 1/2″ deep
· No shear pins; high pressure bypass relief system
· No chains; direct drive auger and fan
· 270◦ hydraulic rotary chute with 7” opening
· Hydraulic chute deflector
· Adjustable hardened steel skid shoes
· 7 gauge steel fan housing
· 10 gauge steel blower shell
· 1/4″ end plates
· High strength corner bracing
· Bolt-on grader cutting edge
What's Included?
· Extreme Duty Snow Blower
· Universal skid steer mounting plate
· Hydraulic hoses
· Flat Faced couplers
· Owner's manual
Sometimes，especially in spring ，we get thick, heavy, wet dirty snow that causes some standard snowblowers to jam up ,But with the HCN Snow Blower, you can easily handle even the toughest snow. There is only one main reason why having the larger fan is better, less jamming. With a smaller fan, you can easily jam on ice or debris while snow blowing. Please note that you shouldn't intentionally run debris through your snowblower, but this larger fan helps it run smoothly, even when digging through chunks of ice.
Adopt power self-adaption valve and dual motors direct-drive design and larger fan, completely solve the problem of snow jam. When the fan motor gets stuck due to too much snow, the auger motor gets the signal, decrease rotate speed , the input amount of snow is reduced. After the fan motor throws the snow to solve the problem of snow jam. Increase the speed of the auger motor to increase the input amount of snow. Work is balanced.
Main technical parameters：
Model | 0209H84 | 0209H72 |
Total length（mm） | 1120 | 1120 |
Total width（mm） | 2200 | 1896 |
Total height（Low throw standard）（mm） | 1695 | 1695 |

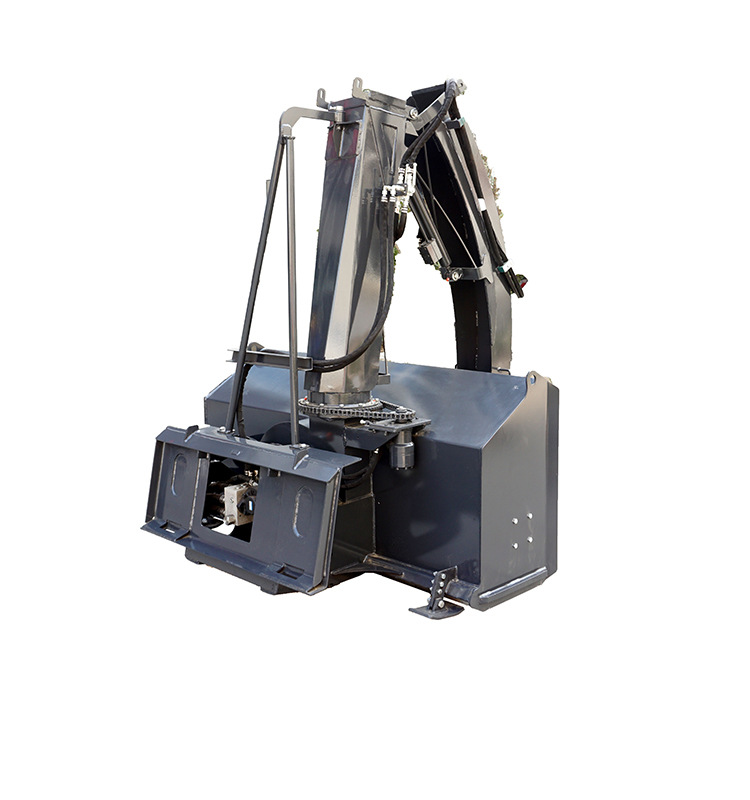

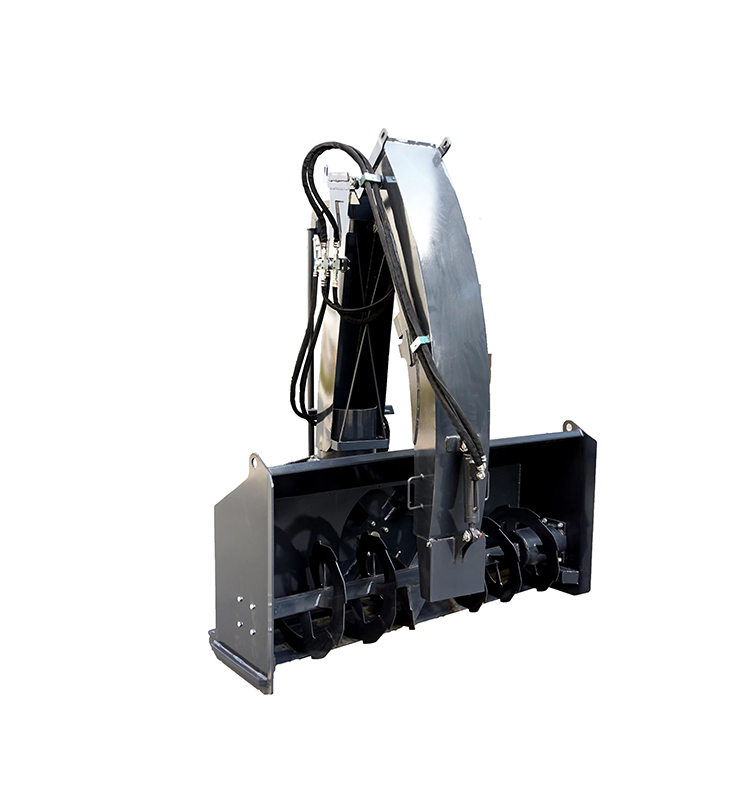

Total height（High throw Optional）（mm) | 3458 | 3458 |
Transport height（mm) | 1593（Low）/2140（High） | 1593（Low）/2140（High） |
Operating weight (include quick hitch)（kg） | 554（Low）/600（High） | 520（Low）/570（High） |
Operation method | Electro-hydraulic control | Electro-hydraulic control |
Rotation angle（°） | 270(Low)/200（High） | 270（Low）/200（High） |
Maximum loading height (high throwing option)（m) | 3.3 | 3.3 |
Farthest snow throwing distance（m) | 12 | 12 |
Hydraulic flow（L/min） | 75-150 | 75-150 |
Allow Max. pressure（Mpa) | 20 | 20 |
Suit to machine（High hyfraulic flow） | Skid steer loader | Skid steer loader |
we get thick, heavy, wet dirty snow that causes some standard snowblowers to jam up. With the HCN Snow Blower, you can easily handle even the toughest snow. We suggest running at a slower speed and letting the snowblower do it's job.
· If you're looking for a reliable and efficient way to clear snow from your driveway, parking lot, or road, you might want to consider the steer snowblower.
- It has a hydraulic system that delivers more power and speed to the blower fan and auger, allowing you to move more snow in less time.
- It has a heavy-duty steel frame and chute that can withstand harsh weather and terrain, as well as a replaceable cutting edge and skid shoes that extend the life of the attachment.
- It has a hydraulic chute rotator and deflector that let you control the direction and distance of the snow discharge with a simple joystick, giving you more flexibility and accuracy.
- It has a wide range of models and sizes to choose from, depending on your needs and preferences. You can select from 60-inch to 84-inch widths, standard or extreme duty models, and single or dual auger designs.
