0310 Concrete Bucket
Hot Products
Product Description

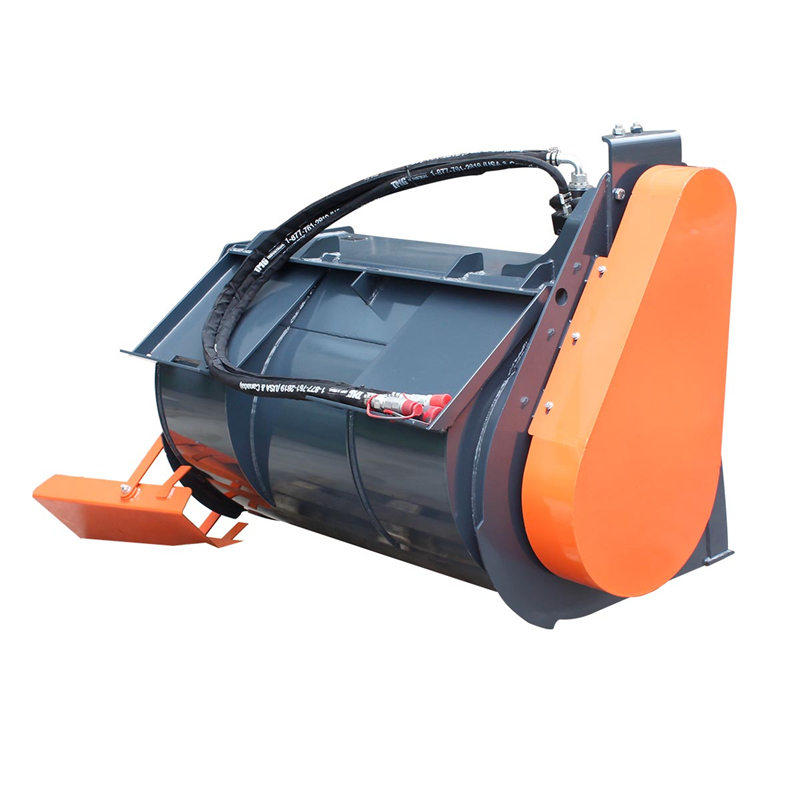

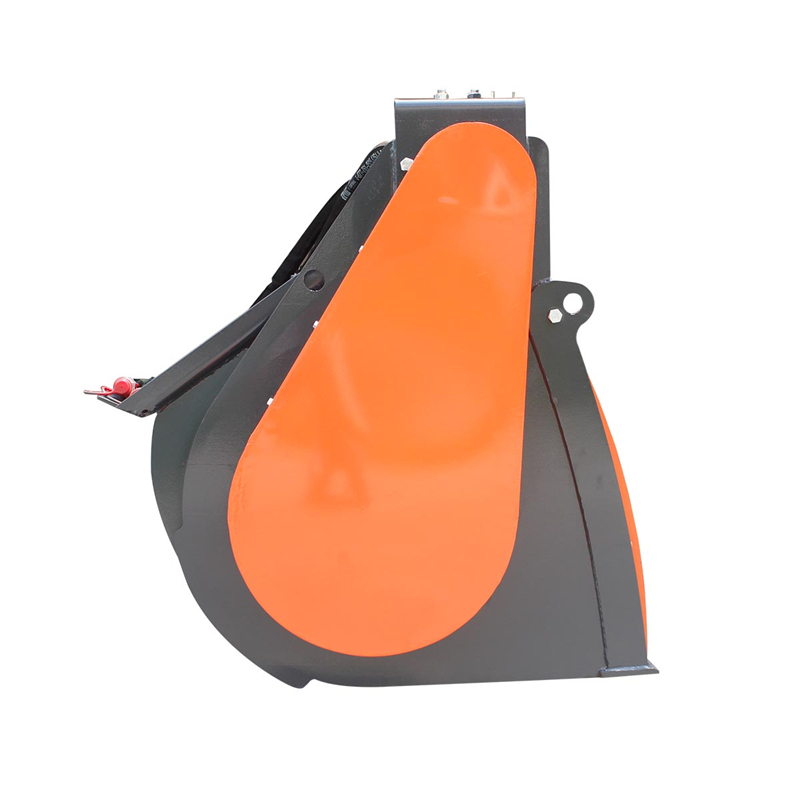

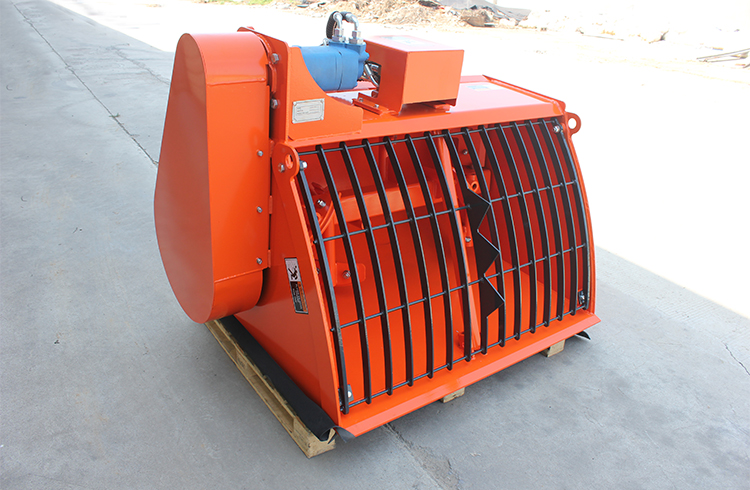

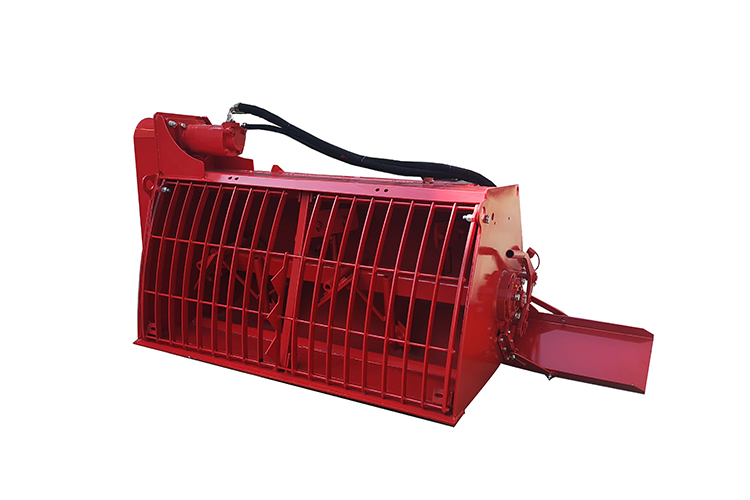

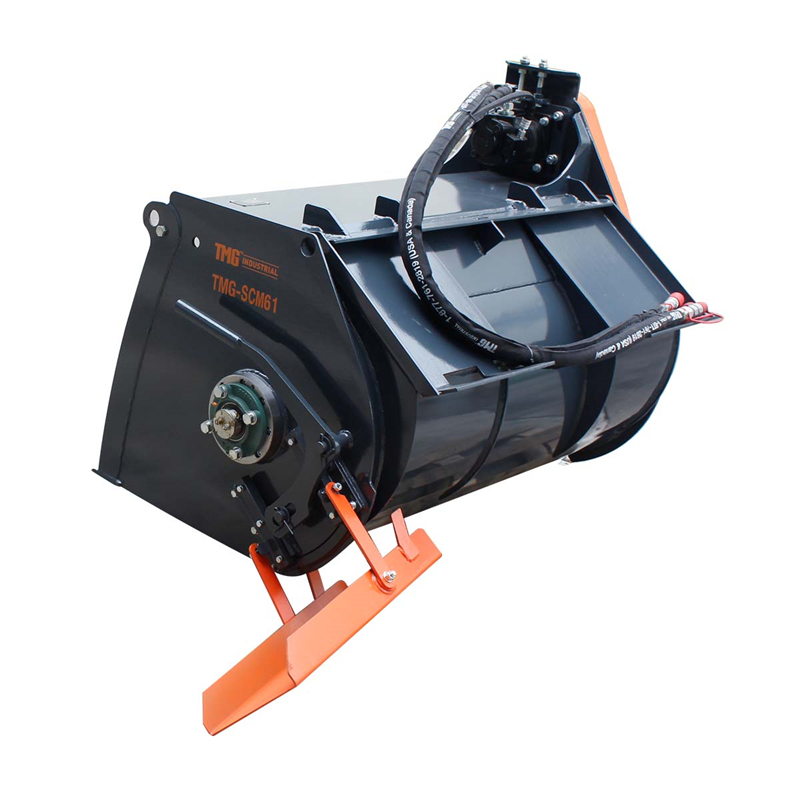

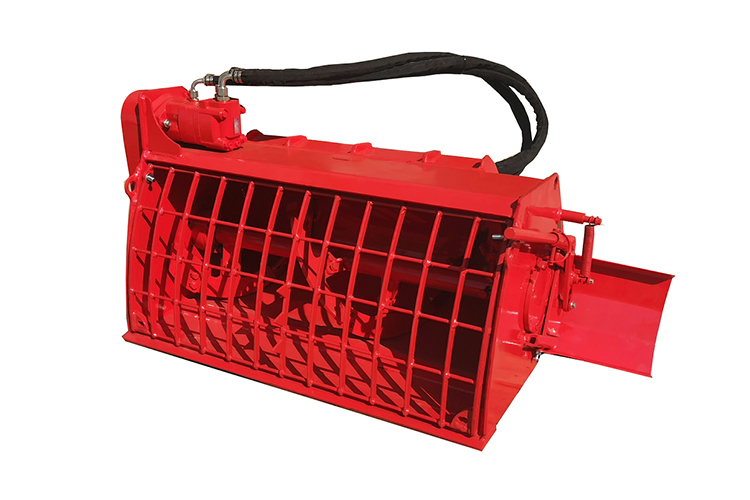

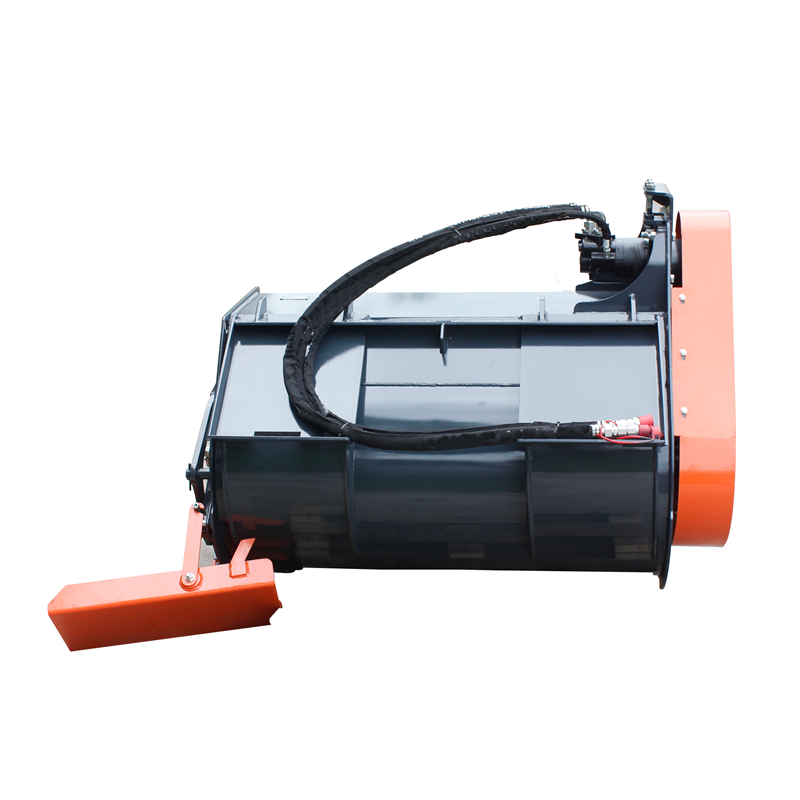

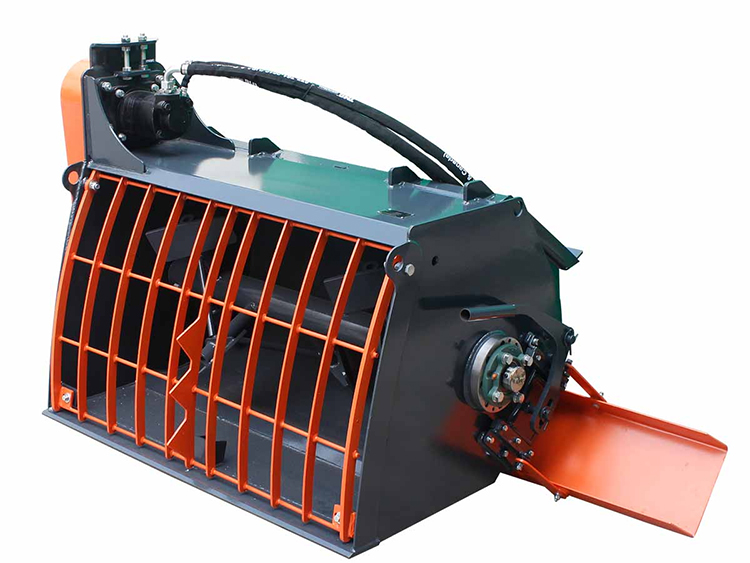

The HCN’ ATTACHMENT Skid Steer Concrete Mixer is a valuable addition to any small or medium job-site requiring concrete. This mixer can either scoop concrete or be loaded from the top. The top features an integrated bag splitter to making splitting cement bags easy. Concrete can be poured using the side chute dispenser for accurate and controlled pours. Directed against concrete, cement mortar cement grout and stucco, specially designed for different model 。
Product Details
Features:
· Efficient mixing concrete right at the pour site

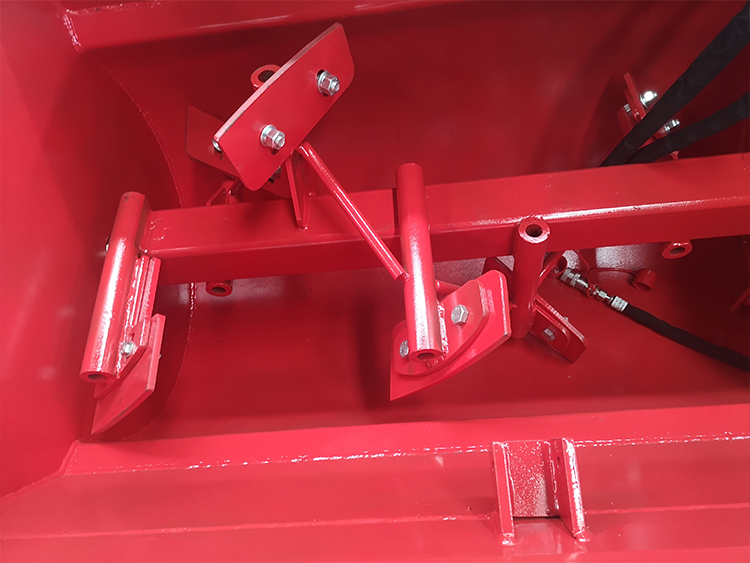

· BOLT-ON REPLACEABLE AUGER PADDLES
· 3-in-1 efficient mode: scoop up, mix it on the go and dispense
· Reversible revolving paddles for optimized mixing & pouring

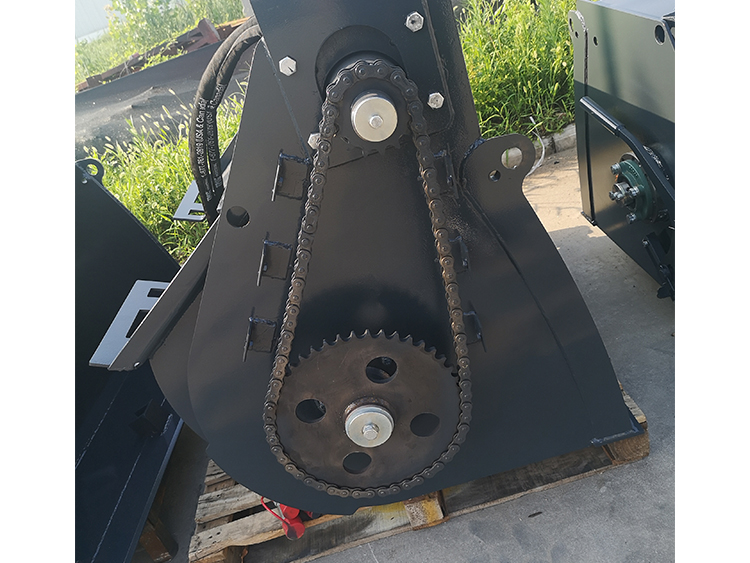

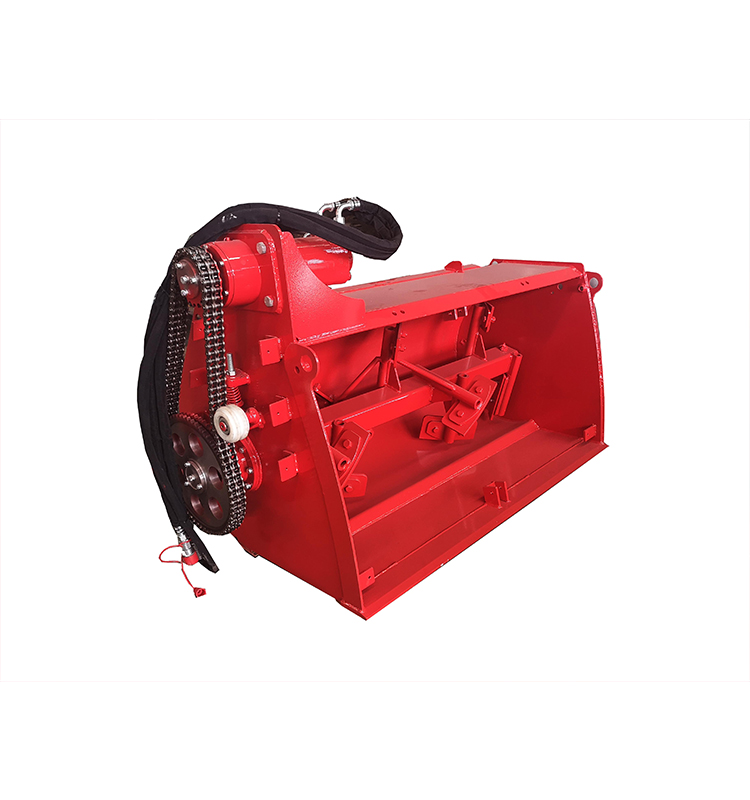

· Chain and sprocket drive hydraulic motor

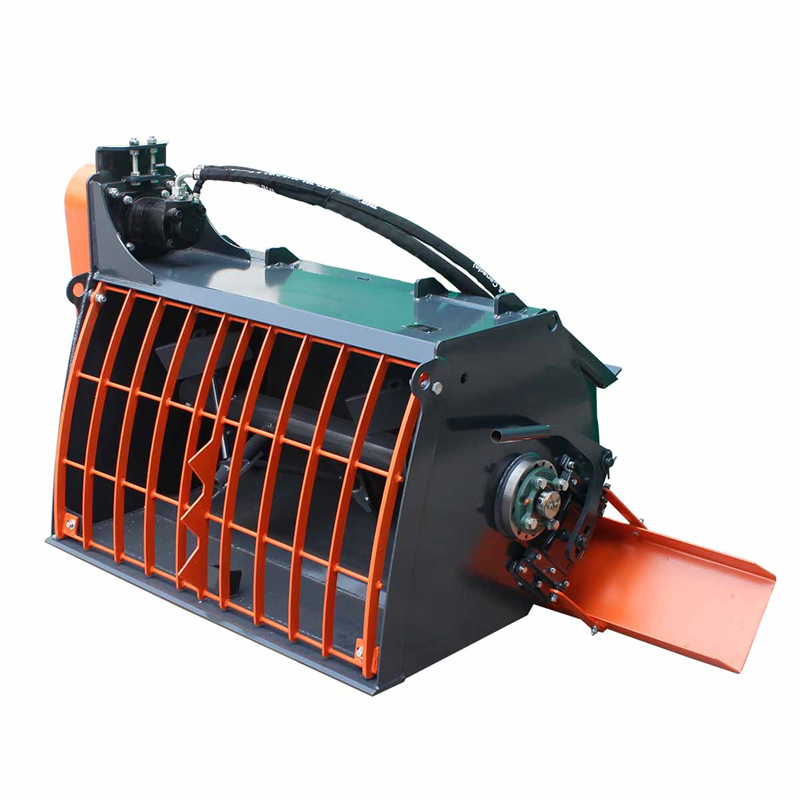

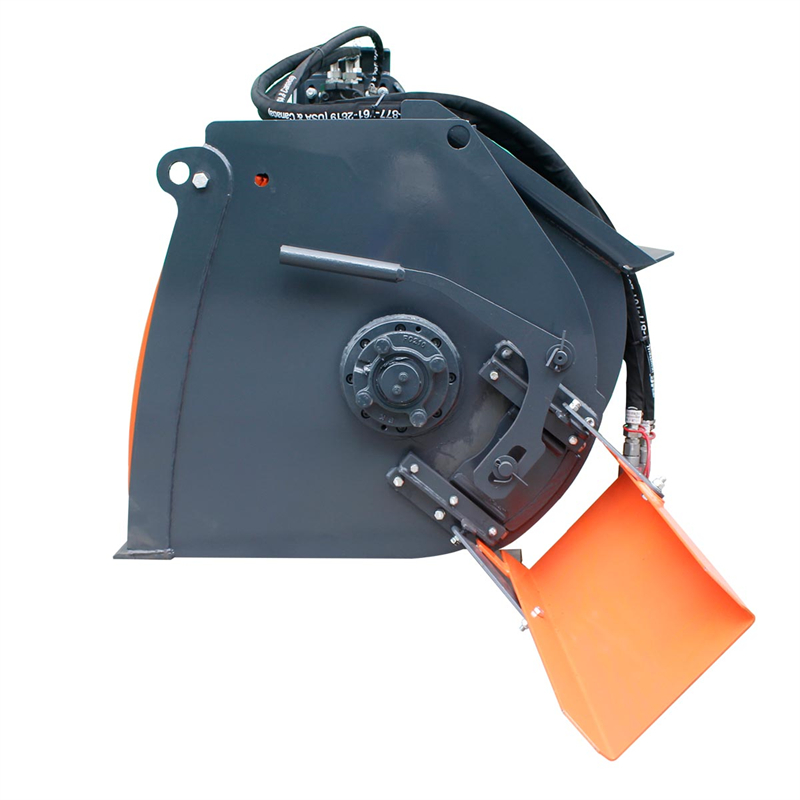

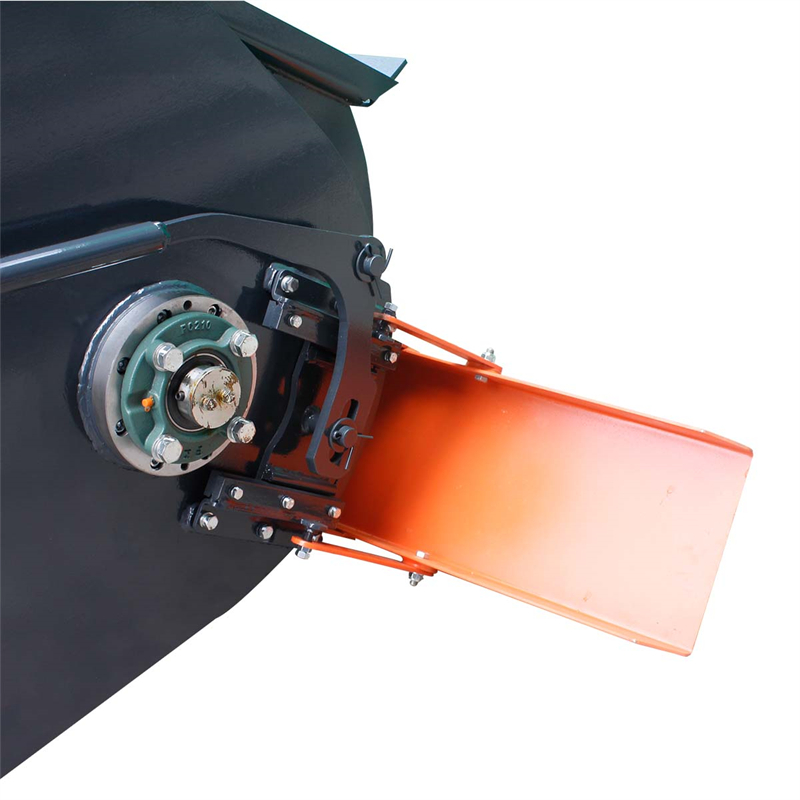

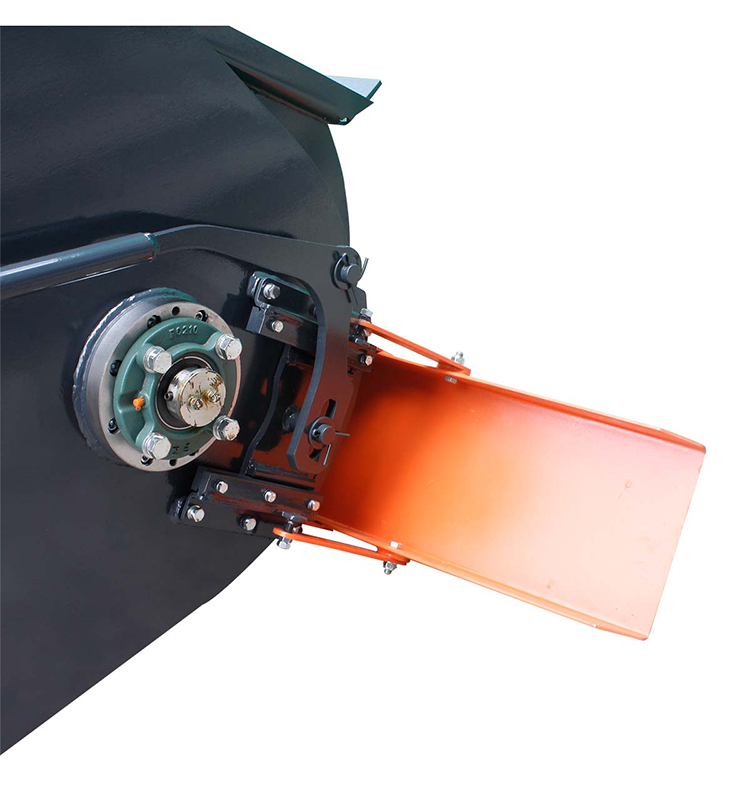

· Manual side chute provides accurate dispensing

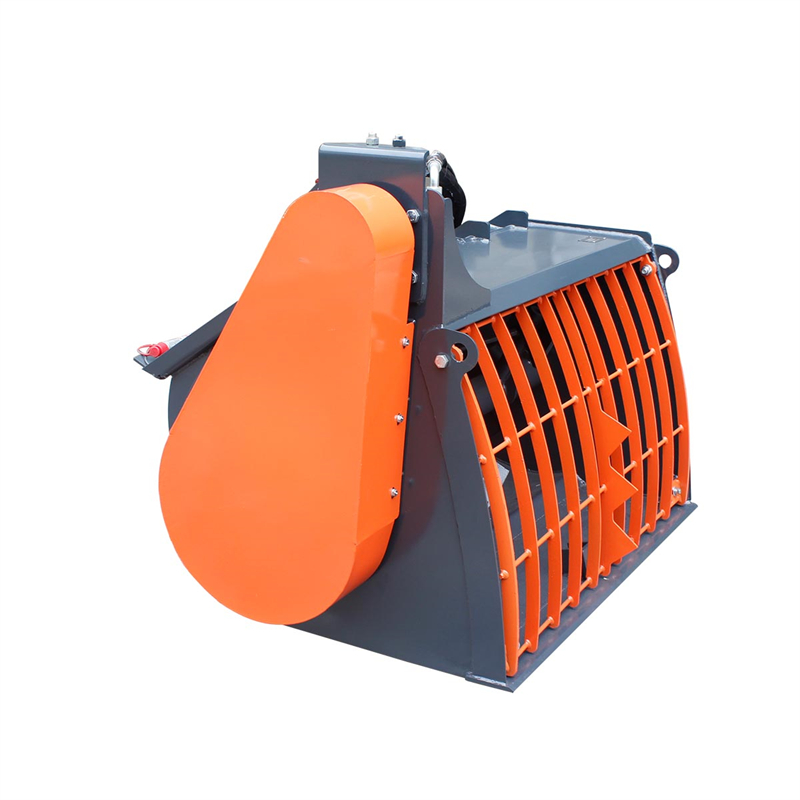

· Removable steel grate with bag splitters
· Universal mix skid steer mount
· Hoses and 1/2” flat-faced couplers included
· Hose protective cloth wrapping
· Specifications:

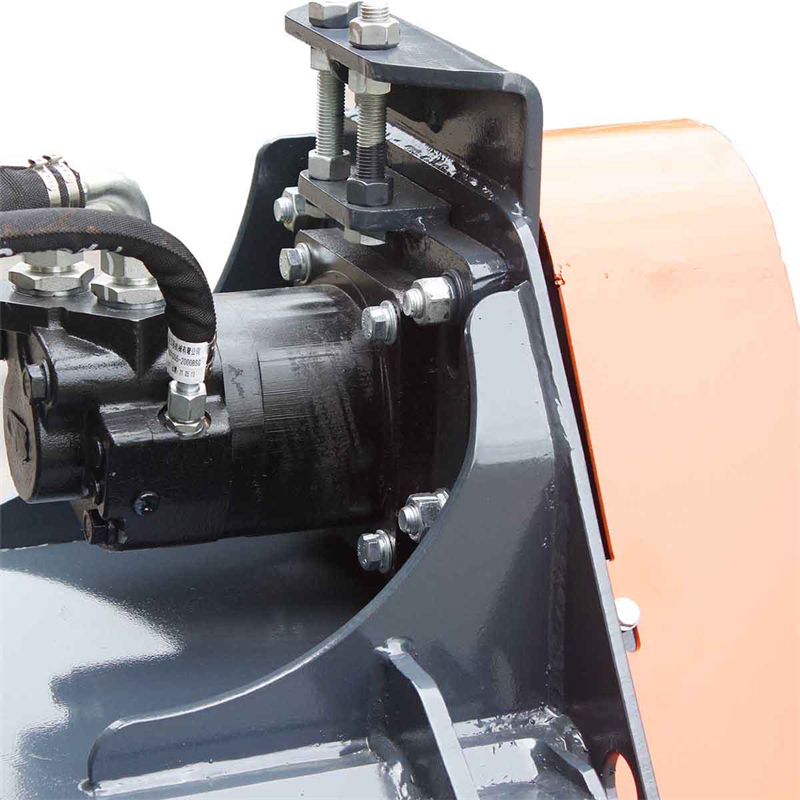

Use heavy type wheel-side motor. The axial and radial force increases to make the mixing materials more uniformed. The upgraded motor is connected with the mixing shaft by bridge mechanism, to prevent cement from entering the bearing seat, fully protect the bearing seat, more than twice life time compared with other similar products in the market.
· Enlarge the space of grids. More convenient and easier to use for shoveling and discharging, has solved the grids stained with cement during working, and the low efficiency of feeding and discharging.
· ⑶ Use 40Cr steel plate with hard process make sure the gear three times life time than the ordinary factory manufacture .
· Assembled size: 73’’(L) x 53’’(W) x 49’’(H)
· Capacity: 16 cu.ft
· Hopper width: 60’’
· Hopper depth: 25’’
· Flow rating: 16 - 21 GPM
· Max. pressure: 3050 psi
· Max. aggregate size: 3/4'' at 25% mix ratio or less
Packaging:
· Dimensions: 66” x 55” x 43”
· Shipping weight: 1300 lb
0310 Series Mixer Bucket
Model | 0310060 | 0310072 | 0310A060 | ||
Total Length (mm) | 1850 | 2140 | 1480 | ||
Total Width (mm) | 1340 | 1340 | 1075 | ||
Total Height (mm) | 1235 | 1235 | 1045 | ||
Bucket Capacity (m3) | 0.5 | 0.65 | 0.5 | ||
Hydraulic Flow(L/Min) | 60-80 | 60-80 | 60-80 | ||
Working Pressure(Mpa) | 21 | 21 | 21 | ||
Total Weight (Kg) | 573 | 655 | 590 | ||
Discharging Material Form | Side Discharging | Side Discharging | Front Discharging | ||
Shape volume (CBM) M3 | 0.52 | 0.66 | 0.52 | ||
Required Host Machines | Skid steer loader /small wheel loader | ||||
FOB | 2305USD | 2975USD | 2512USD | ||
Use NM400 cutting edge plate nearly same as hardox steel plate
Model | 0310B60 | 0310B072 |
Over length(mm) | 1490 | 1790 |
Over width(mm) | 1212 | 1212 |
Over height(mm) | 1015 | 1015 |
Capacity (m3) | 0.5 | 0.65 |
Flow(l/min) | 60-80 | 60-80 |
Maximum allowable pressure (MPa) | 21 | 21 |
Weight (including pendant)（kg） | 573 | 655 |
voltage | 12V/24V | 12V/24V |

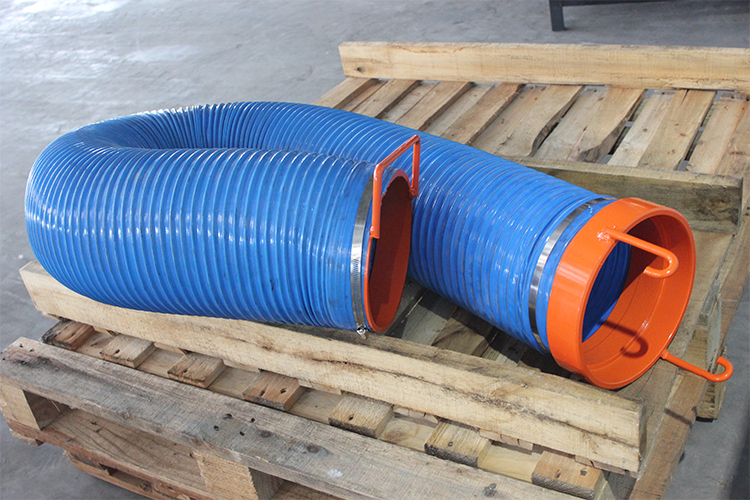

Discharge hose length （mm） | 2000 | 2000 |

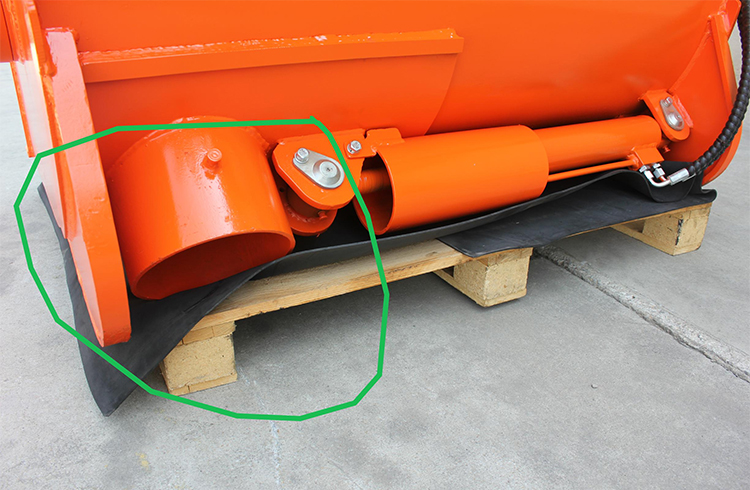

Unloading method | Bottom discharge | Bottom discharge |
Shape volume (CBM) M3 | 0.45 | 0.6 |
EXW PRICE | 3080USD | 3473USD |

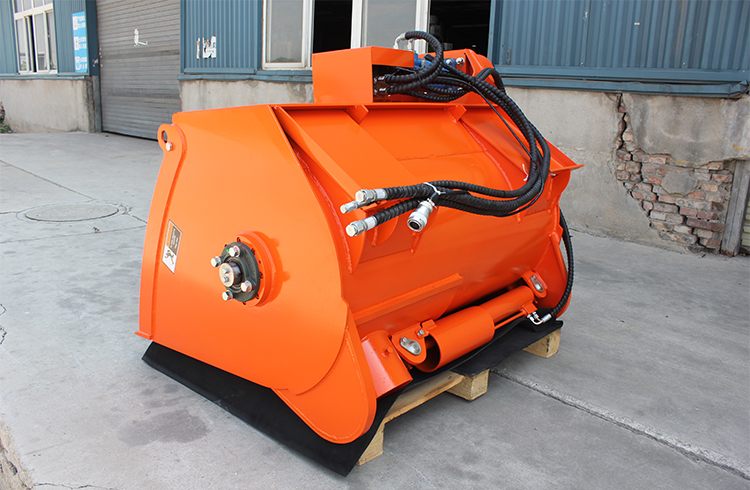

0310B
Automatic controlled bottom unloading，specially designed for excavator.
Detachable paddle blade design; Rubber paddle optional; specially design for mix cement grout and stucco.
Model | 031001 |
Total length (mm) | 570 |
Overall width (mm) | 1070 |
Total height (mm) | 565 |
Production capacity of one bucket (m3) | 0.1 |
Flow (l/min) | 20-40 |
Allowable pressure (Mpa) | 21 |
Weight (kg) | 180 |
Unloading type | Side |
Applicable model | Mini skid steer Loader |
