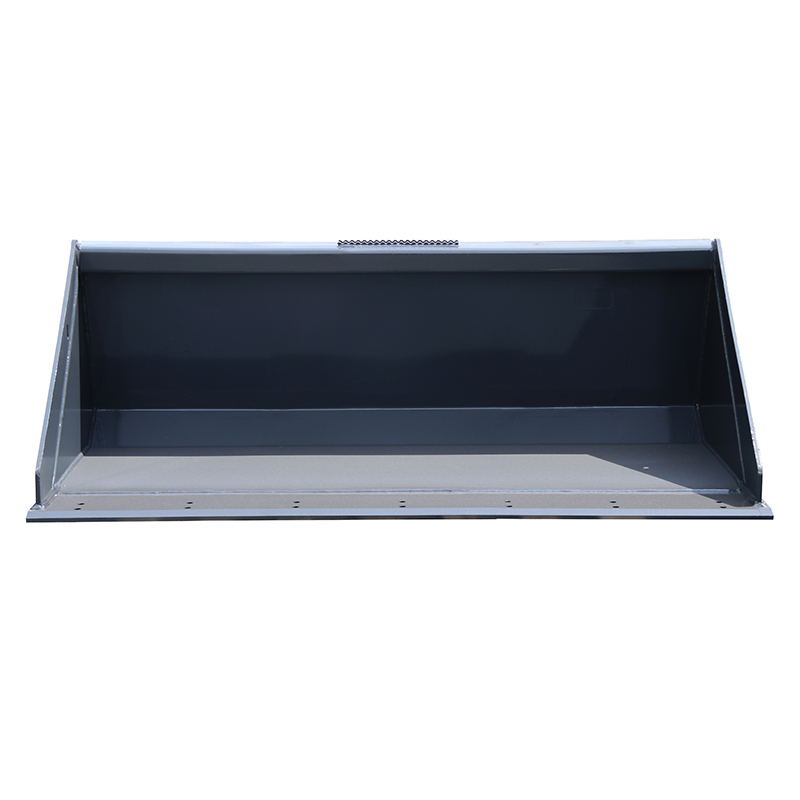

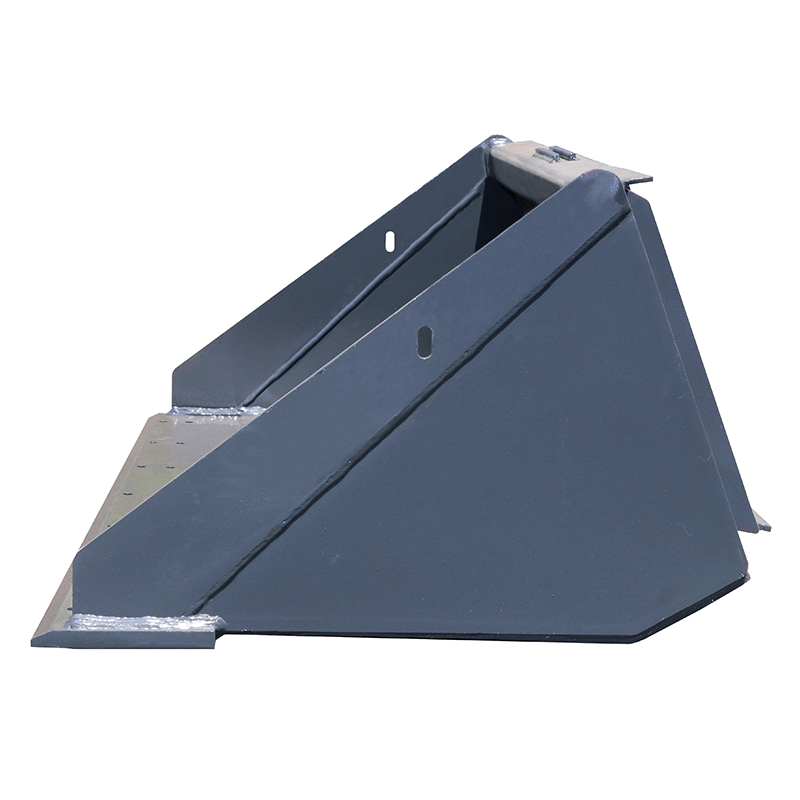

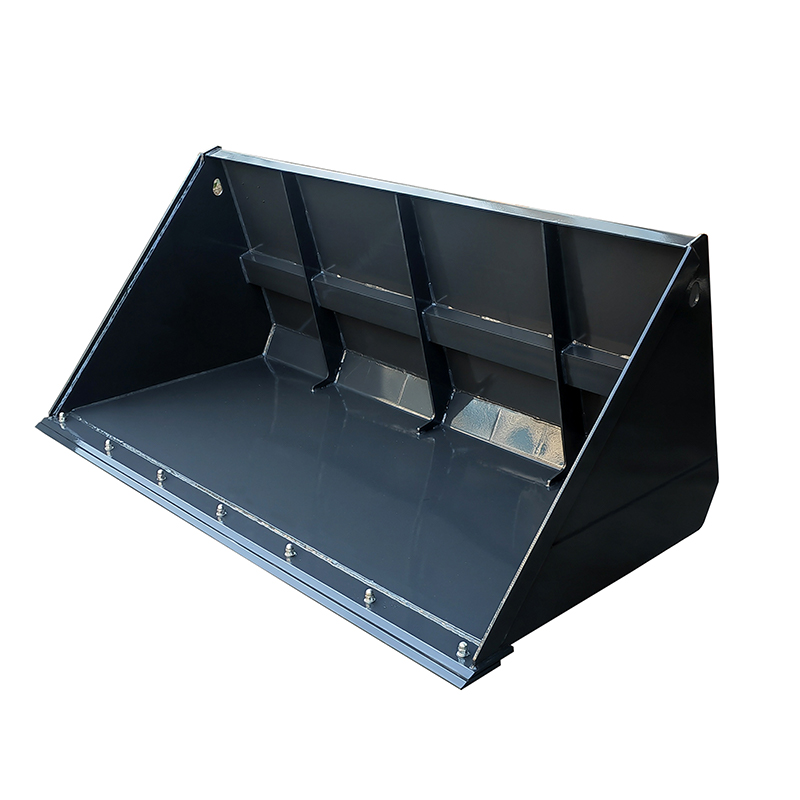

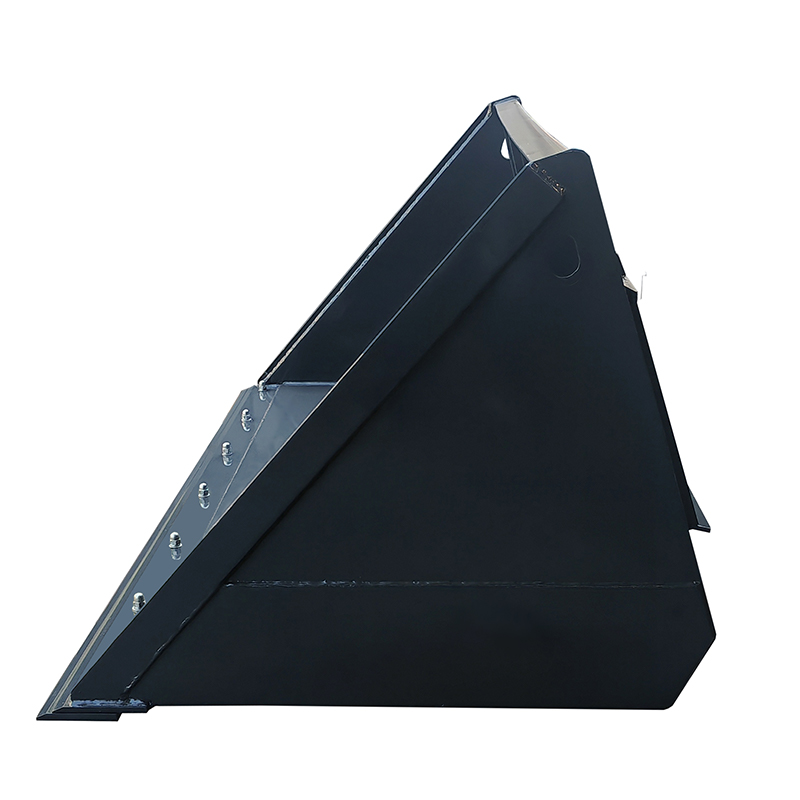

0103 Series Heavy Duty Bucket
Hot Products
With HCN’ heavy duty buckets, you can easily add custom options using simple tools. With other buckets, you must drill holes or permanently weld those options. Most Bobcat buckets are pre-drilled to accept the following accessories:
Bucket Bite® Tooth Bar: Quickly convert your smooth-lip bucket into a toothed bucket.
Bolt-on teeth with replaceable points: Several styles available to chew through tough digging conditions.
Bolt-on cutting edge: Provide longer life to your loader’s bucket.
Bolt-on corner cutting edge: Protect the corners of your bucket with these beveled cutting edges.
Bucket spill guard: Bolts onto the top of your bucket to reduce material boiling or falling over the back of the bucket.
Excellent Visibility
Get better views of your cutting edge for greater precision.
The heavy-duty bucket provides high breakout forces and is reinforced in the right areas of the bucket back.
The high carbon cutting edge, measuring ¾ inches x 6 inches, provides exceptional life.

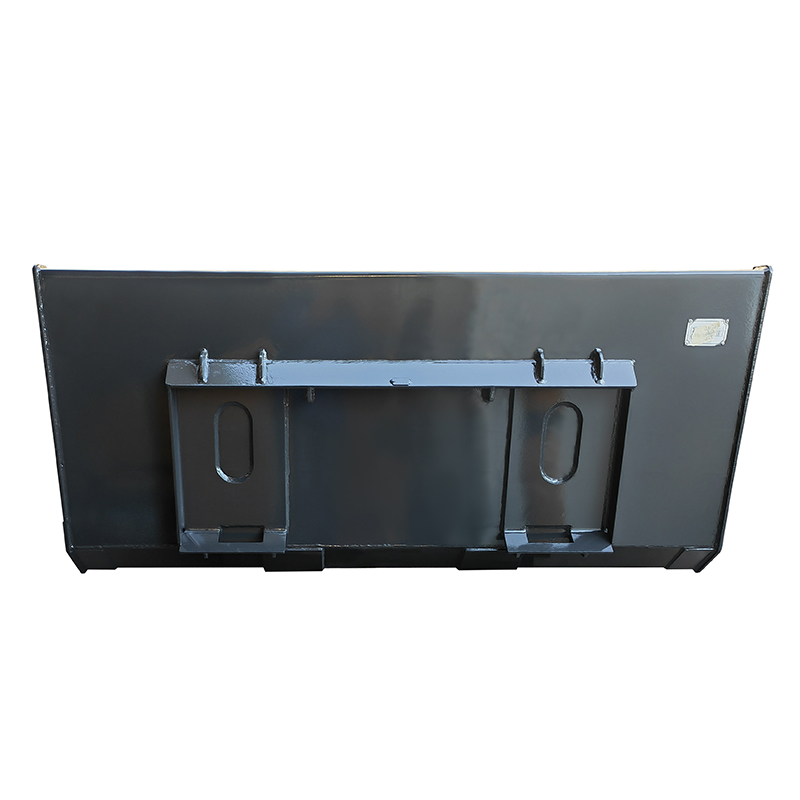

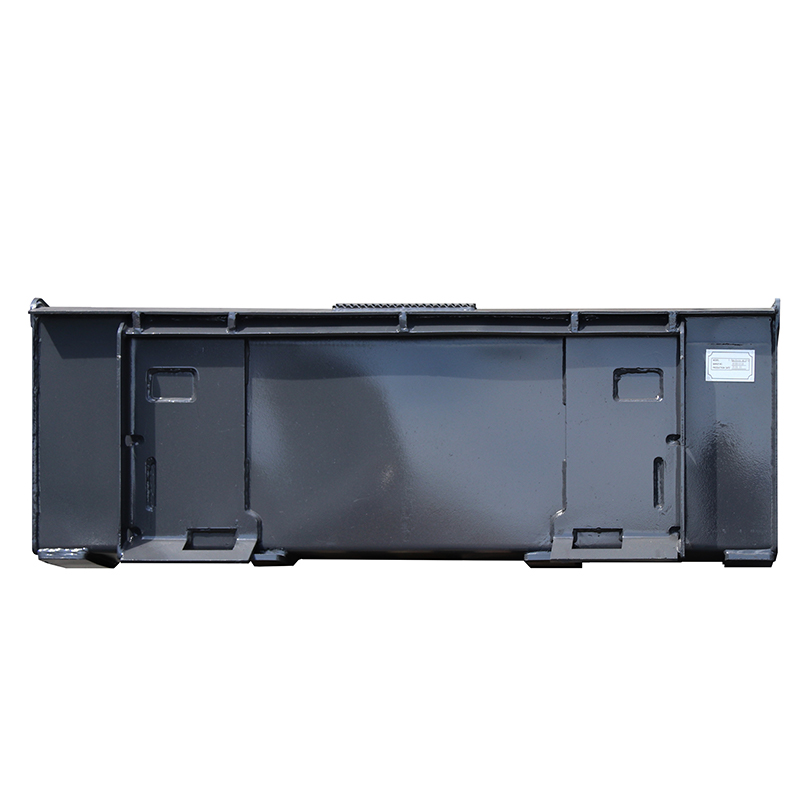

The cast mounting frame improves the bucket’s service life.
The round back design enhances bucket loading and clean out.
The waffle-type skid plate reinforces the cutting edge and strengthens the bottom of the bucket for longer life, with minimal additional weight.
The top and bottom bucket sections are a formed channel design to provide extra strength and durability.
Product Details
Specifications:
Model | 010360 | 010366 | 010372 | 010384 |
Inside Bucket width (mm) | 1530 | 1680 | 1830 | 2130 |
Blade width (mm) | 1580 | 1730 | 1880 | 2180 |
Overall Length (mm) | 840 | 840 | 840 | 840 |
Overall Height (mm) | 540 | 540 | 540 | 540 |
Flat loading capacity（m³） | 0.34 | 0.38 | 0.40 | 0.46 |
Weight（Include hitch）（kg） | 205 | 213 | 218 | 225 |
Optional accessories | Optional secondary blade or tooth | |||
Suit to machine | Skid steer loader | |||
